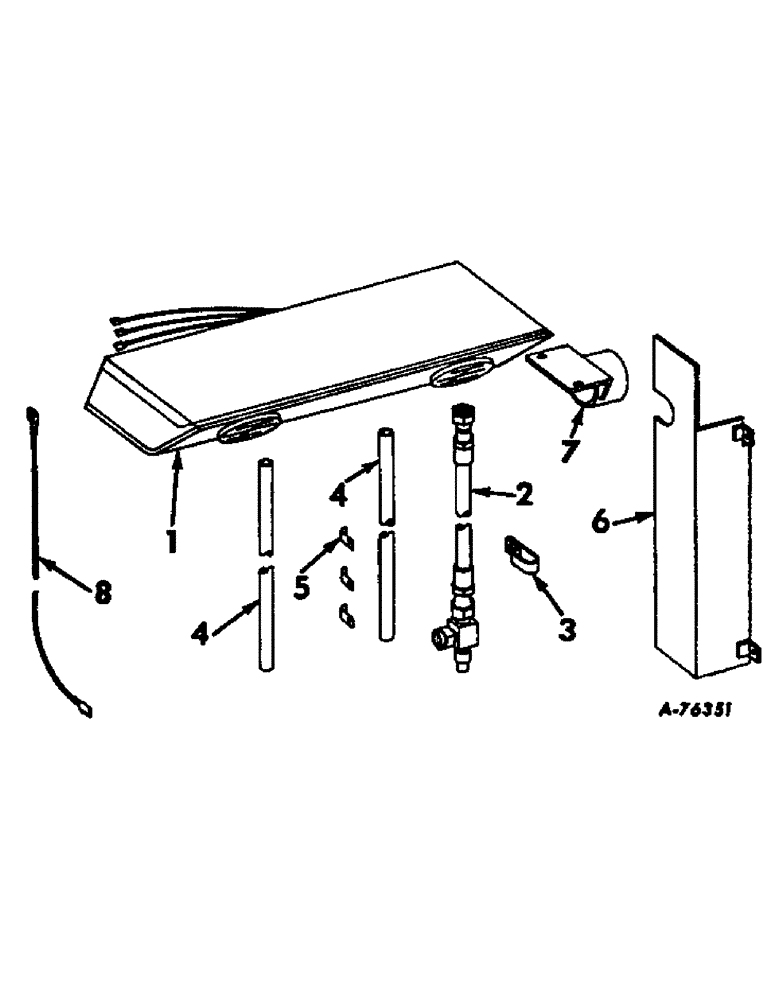

Запчасти Case IH 403 (249) - EVAPORATOR AND CONNECTIONS, SERIAL NO. 16130 AND ABOVE (50) - CAB CLIMATE CONTROL

1

161310C91

EVAPORATOR ASSY, air conditioning, For components see evaporator assy components

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

8шт.

2

154698C91

HOSE ASSY, suction

1шт.

3

154695C1

CLAMP

hose

4шт.

4

154696C1

HOSE ASSY.

HOSE, drain

2шт.

5

154697C1

CLAMP, drain hose

3шт.

6

154690C91

COVER ASSY, hose

1шт.

171654

SCREW, no. 6 x 3/8 C-Z slt-pan-hd mach

2шт.

7

159935C91

SUPPORT ASSY, cab air pressure tube

1шт.

8

159938C91

CABLE ASSY, Serial Range: thermostat-evaporator

1шт.
