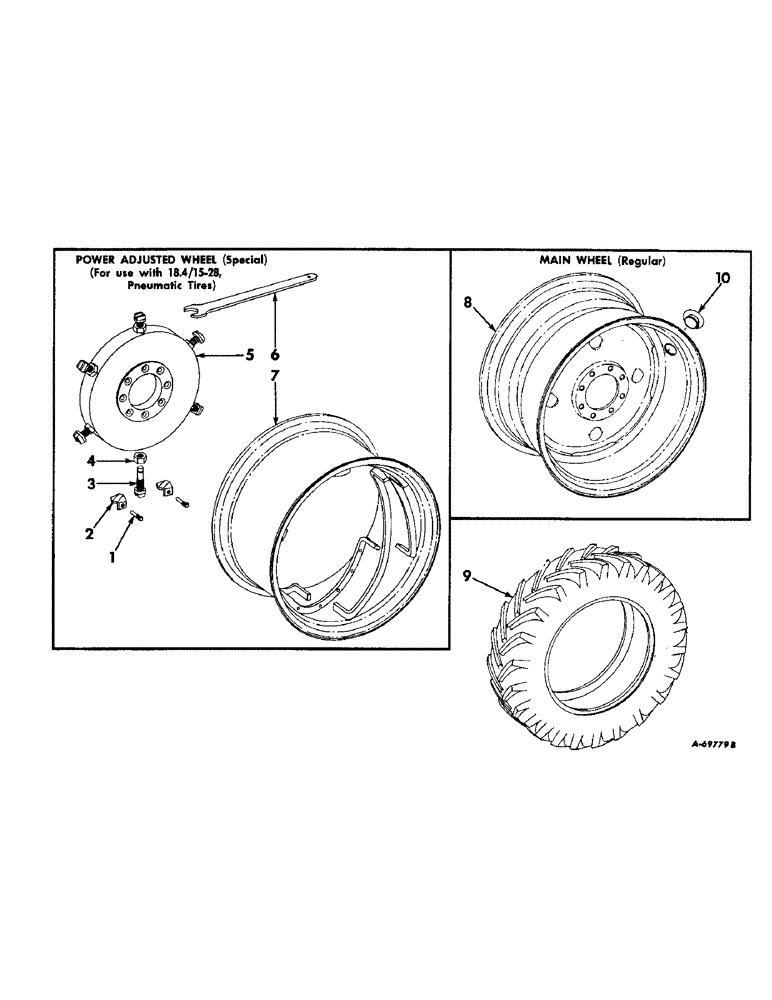

Запчасти Case IH 403 (049) - MAIN WHEEL, TIRES AND TUBE, REGULAR (44) - WHEELS

1

365326R1

SCREW

bodystop

4шт.

2

365327R2

STOP

body

4шт.

3

366104R1

JACK SCREW,1" - 16 x 3.34"

jack

12шт.

4

366105R1

WHEEL NUT,Hex, 1" - 16

jack screw

12шт.

5

633012R1

DISC, main wheel rim

2шт.

6

366106R1

WRENCH, jack screw

1шт.

7

633011R91

RIM ASSY, main wheels

2шт.

8

559034R91

DISC AND RIM ASSY, main wheel, For use with 16.9/14-26 pneumatic tires

2шт.

8

564805R91

DISC AND RIM ASSY, main wheel, For use with 18.4/15-26 pneumatic tires

2шт.

8

627370R91

DISC AND RIM ASSY, main wheel, For use with 18.4/15-26, 10-ply pneumatic tires

2шт.

8

574804R91

DISC AND RIM ASSY, main wheel, special, For use with 16.9/14-26 and 18.4/15-26 pneumatic tires

2шт.

8

569366R91

WHEEL

DISC AND RIM ASSY, main wheel, For use with 23.1/18-26 pneumatic tires

2шт.

8

936444R91

DISC AND RIM ASSY, main wheel, rice special, For use with 23.1/18-34 pneumatic tires

2шт.

8

155914C91

DISC AND RIM ASSY, main wheel, rice special, For use with 28.1-26 pneumatic tires

2шт.

9

TIRE, main wheel, 14.9/13-26, 6-ply, code R1

2шт.

9

TIRE, main wheel, 14.9/13-26, 8-ply, code R1

2шт.

9

TIRE, main wheel, 14.9/13-26, 6-ply, code R3

2шт.

9

TIRE, main wheel, 16.9/14-26, 8-ply, code R1

2шт.

9

TIRE, main wheel, 16.9/14-26, 6-ply, code R3

2шт.

9

TIRE, main wheel, 16.9/14-26, 6-ply, code R1

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, code R1

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, code R2

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, code R3

2шт.

9

TIRE, main wheel, 18.4/15-28, 6-ply, code R1, power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-28, 10-ply, code R1, power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-28, 10-ply, code R2, power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-26, 10-ply, code R1

2шт.

9

TIRE, main wheel, 18.4-15/26, 10-ply, code R2

2шт.

9

TIRE, main wheel, 18.4/15-26, 10-ply, code R3

2шт.

9

TIRE, main wheel, 23.1/18-26, 8-ply, code R2

2шт.

9

TIRE, main wheel, 23.1/18-26, 8 ply, code R1

2шт.

9

TIRE, main wheel, 23.1/18-26, 10-ply, code R3

2шт.

9

TIRE, main wheel, 23.1/18-34, 8-ply, code R2

2шт.

9

TIRE, main wheel, 28.1-26, 10-ply, code R2

2шт.

9

TUBE, main wheel, 14.9/13-26, Serial no. 7223 and below

2шт.

9

TUBE, main wheel, 16.9/14-26

2шт.

9

TUBE, main wheel, 18.4/15-26

2шт.

9

TUBE, main wheel, 23.1/18-26

2шт.

9

TUBE, main wheel, 23.1/18-34

2шт.

9

TUBE, main wheel, 18.4/15-28, For use with power adjusted wheels

2шт.

9

TUBE, main wheel, 28.1-26

2шт.

10

383697R1

PLUG

valve hole

1шт.

583385R92

DISC AND RIM, main wheel offset, special, For use with 14.9/13-26 and 16.9/14-26 pneumatic tires

1шт.

936440R91

DISC AND RIM ASSY, main wheel offset, special, For use with 18.4/15-26 pneumatic tires

1шт.
