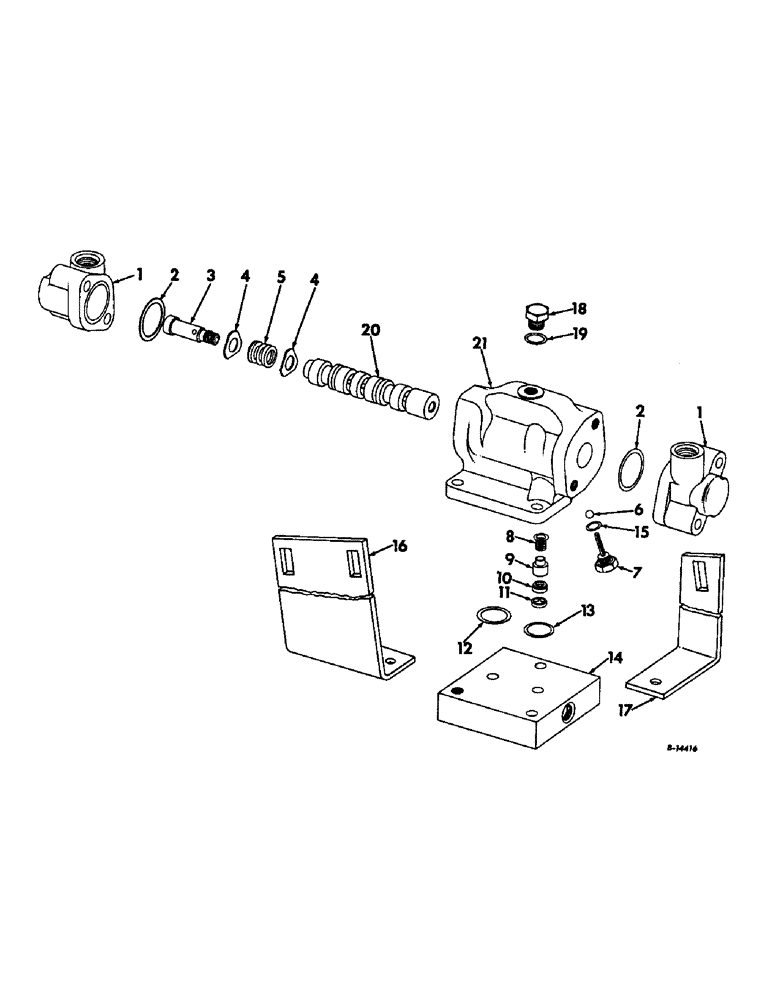

Запчасти Case IH 403 (195) - STEERING VALVE, SERIAL NO. 7224 AND ABOVE (41) - STEERING

396726R91

LOCK VALVE

VALVE ASSY, steering, Includes ref nos 1 thru 11, 15, 18 thru 21

1шт.

NLS

NO LONGER SERVICED

1шт.

17521R1

BOLT,Hex, 3/8" - 16 x 2", Gr 2

3/8 x 2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

379894R1

CAP

end

2шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

1шт.

5

395754R1

SPRING

valve centering

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

16008R1

BALL,1/4" Dia, Steel

1/4 diameter steel

1шт.

7

379901R91

PLUG

ASSY

1шт.

8

382125R1

SPRING

pressure check

1шт.

9

382126R1

NO LONGER SERVICED

VALVE, check

1шт.

10

379810R1

SEAL

ball seat

1шт.

11

382127R1

WASHER

SPACER, check valve

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

14

633383R1

BLOCK, hydrostatic steering valve mounting

1шт.

15

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

16

938881R1

BRACKET, steering valve LH

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

938882R1

BRACKET, steering valve RH

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

9410357

PLUG

O-ring boss

1шт.

19

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.

20

SPOOL, Not serviced separately order 396726R91 valve assy

1шт.

21

BODY, Not serviced separately oder 396726R91 valve assy

1шт.

379793R91

O-RING

SERVICE PACKAGE, Consists of

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Adjusting screw

1шт.

379810R1

SEAL

ball seat

1шт.

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

valve

2шт.
