Запчасти Case IH 403 (187) - STEERING CYLINDER, POWER STEERING, SERIAL NO. 4644 TO 7223 (41) - STEERING

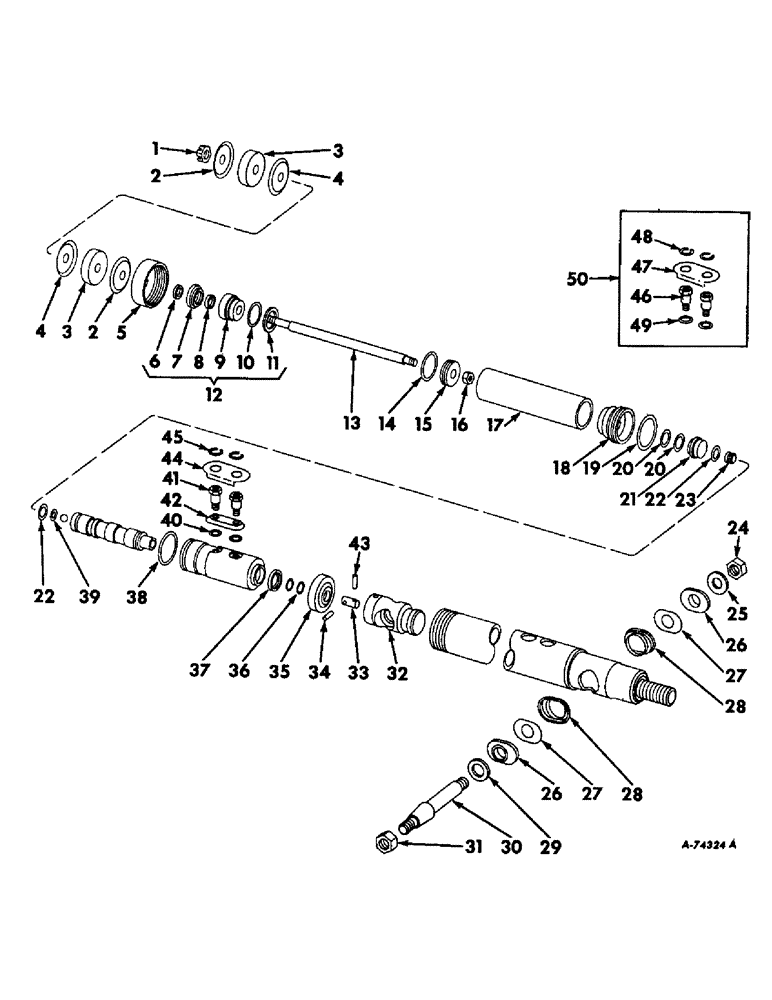

Схема запчастей Case IH 403 - (187) - STEERING CYLINDER, POWER STEERING, SERIAL NO. 4644 TO 7223 (41) - STEERING
31
35
30
41
11
44
28
20
39
42
2
46
14
22
22
50
38
1
28
26
16
10
20
18
19
49
12
27
36
9
45
29
25
4
17
5
24
4
3
37
3
43
8
21
32
40
2
13
48
47
7
33
27
6
26
34
15
23

Артикул

Название

Примечание

Количество

935156R92

CYLINDER AND VALVE ASSY, steering, Order cylinder assy 574041R92

1шт.

1/8 X 1-1/4 COT. PIN

1шт.

1

125366

SLOTTED NUT,1/2"-20, G5, Thk

1шт.

2

363206R1

RETAINER

2шт.

3

363207R1

CUSHION

2шт.

4

363208R1

LOCATOR

2шт.

5

364110R1

CAP

1шт.

6

367808R1

SEAL

1шт.

7

375266R1

RETAINER

T-ring

1шт.

8

388795R91

WASHER

T-RING AND WASHER ASSY

1шт.

9

GUIDE, piston rod, Order guide assy, 375264R91 ref. no. 12

1шт.

10

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

11

375265R1

RETAINER, O-ring

1шт.

12

375264R91

GUIDE ASSY, piston rod, Includes ref. no. 6 thru 11

1шт.

13

935583R1

ROD, piston

1шт.

14

364102R1

RING

piston

1шт.

15

364100R1

PISTON

1шт.

16

25-118

NUT,1/2"-20, G5

1шт.

17

935579R1

TUBE, cylinder

1шт.

18

378114R1

BASE

1шт.

19

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

20

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

21

378115R1

PLUG

1шт.

22

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

23

375270R1

PISTON, reaction

1шт.

24

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8

1шт.

25

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

26

364133R1

CUSHION

2шт.

27

364135R1

WASHER

2шт.

28

364134R1

RETAINER

2шт.

29

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

30

935582R1

STUD, valve

1шт.

31

9413949

NUT,5/8"-11, GA

1шт.

32

935578R91

SLIDE ASSY

1шт.

33

935580R1

PIN

1шт.

34

19336R1

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

1шт.

35

935581R1

RETAINER

1шт.

36

375273R1

WASHER

2шт.

37

375272R1

T-RING

1шт.

38

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

39

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

40

375283R1

GASKET

2шт.

41

936276R1

FITTING

2шт.

42

378160R1

SEAL

1шт.

43

19695R1

PIN, roll

1шт.

44

936277R1

HOLDER, fitting

1шт.

45

324110R1

SNAP RING

RING, snap

2шт.

46

936276R1

FITTING

2шт.

47

936277R1

HOLDER

1шт.

48

324110R1

SNAP RING

RING

2шт.

49

375283R1

GASKET

2шт.

50

936275R91

KIT

ASSY, power steering cylinder

1шт.

152503C91

PACKAGE, O-ring service

1шт.

153864C91

KIT ASSY, power steering cylinder valve seal

1шт.

Выбрано товаров: 54
