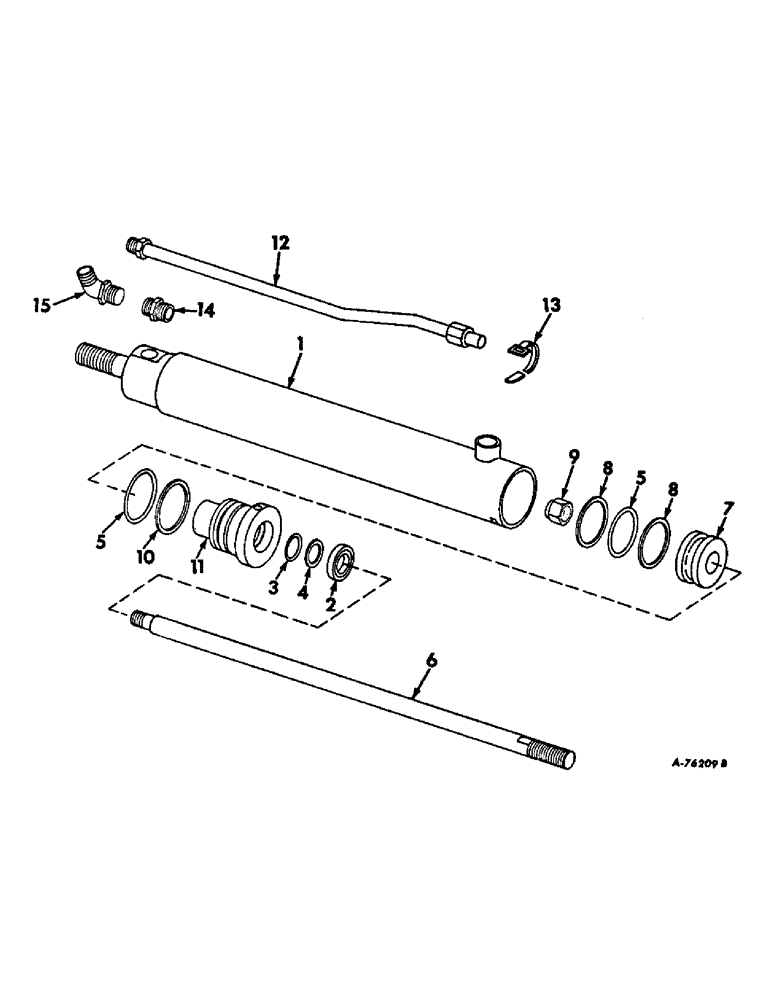

Запчасти Case IH 403 (181) - HYDROSTATIC STEERING, OPTIONAL FOR 654631R91 CYLINDER (41) - STEERING

397689R91

CYLINDER AND VALVE ASSY, power steering, Optional for cylinder 654631R91

1шт.

1

397690R1

BODY ASSY, hyd cyl

1шт.

2

566103R91

OIL RESERVOIR

SEAL, rod wiper oil

1шт.

3

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32

1шт.

4

397695R1

BACK-UP RING

WASHER, back up

1шт.

5

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

2шт.

6

397696R1

ROD

piston hyd cyl

1шт.

7

397697R1

PISTON

hyd cyl

1шт.

8

397698R1

BACK-UP RING

WASHER, piston back up

1шт.

9

9415991

NUT, 7/16-20 hex. lock

1шт.

10

388849R1

SPRING

RETAINER CYL END

1шт.

11

397694R1

HEAD, rod end hyd cyl

1шт.

12

159488C91

TUBE ASSY, steering cyl, For non-adjustable and narrow adjustable axle

1шт.

12

166855C91

TUBE ASSY, steering cyl, For wide adjustable axle

1шт.

13

702093C1

CABLE TIE

CLAMP, For non-adjustable and narrow adjustable axle

1шт.

13

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, For wide adjustable axle

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd tube, For wide adjustable axle

1шт.

15

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 45 deg, For wide adjustable axle

1шт.
