Запчасти Case IH 403 (110) - STEERING GEAR CASE, SAGINAW, SERIAL NO. 1590 TO 2195 (41) - STEERING

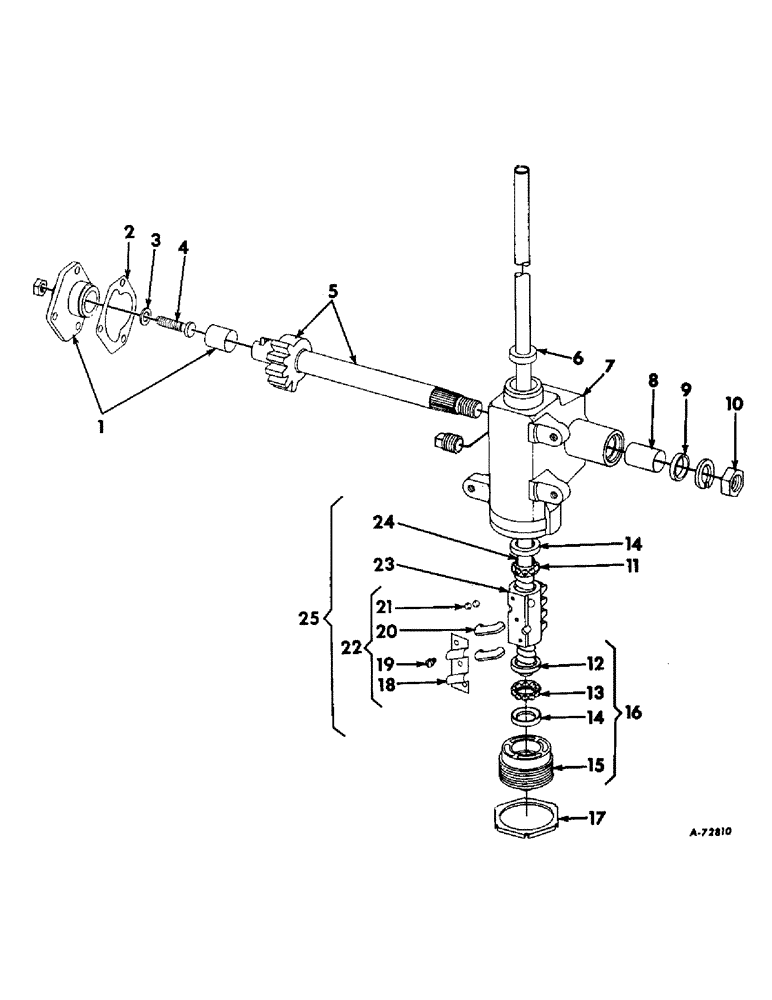

Схема запчастей Case IH 403 - (110) - STEERING GEAR CASE, SAGINAW, SERIAL NO. 1590 TO 2195 (41) - STEERING
9
4
5
1
3
8
14
6
24
12
13
20
11
25
16
15
7
2
17
19
21
23
10
14
22
18

Артикул

Название

Примечание

Количество

653951R91

CASE ASSY, steering gear, Includes ref nos 1 through 25

1шт.

1

654398R91

COVER

ASSY

1шт.

2

654405R1

GASKET

side housing cover

1шт.

3

127942R91

KIT ASSY, shim, Consists of

1шт.

SHIM .063 IN.

1шт.

SHIM .065 IN.

1шт.

SHIM .067 IN.

1шт.

SHIM .069 IN.

1шт.

4

263226R1

ADJUSTER, steering gear lash

1шт.

5

654406R1

GEAR, pitman shaft, 5-T

1шт.

6

654410R91

SEAL

ASSY, steering shaft dust

1шт.

7

654399R91

HOUSING W/CUP AND BUSHING ASSY, Includes ref no. 8

1шт.

8

654400R1

BUSHING

Pitman shaft

1шт.

9

654409R1

SEAL ASSY, Pitman shaft

1шт.

10

219759

BACK-UP RING

Pitman arm, 7/8 - 14UNF

1шт.

11

654395R91

BEARING

ASSY, worm thurst

1шт.

12

654397R1

RETAINER

lower bearing

1шт.

13

654395R91

BEARING

ASSY, worm thrust

1шт.

14

654396R1

BEARING

CUP, worm thrust bearing

2шт.

15

NOT SERVICED SEPARATELY, Order adjuster assy, 654394R91

1шт.

16

654394R91

BEARING ASSY

ADJUSTER ASSY, worm bearing

1шт.

17

654408R1

NUT, worm bearing adjuster lock

1шт.

18

654403R1

CLAMP, ball return guide

1шт.

19

654402R91

SCREW ASSY

1шт.

20

654404R1

GUIDE, ball return

4шт.

21

263223R1

BALL, guide

1шт.

22

654411R91

KIT, ball return guide and clamp

1шт.

23

NOT SERVICED SEPARATELY, Order shaft assy 654401R91, Ref no. 25

1шт.

24

NOT SERVICED SEPARATELY, Order shaft assy 654401R91, Ref no. 25

1шт.

25

654401R91

SHAFT ASSY, ball nut steering

1шт.

Выбрано товаров: 30
