Запчасти Case IH 1160 (06) - GRAIN BIN AND ELEVATOR EXTENSIONS (80) - CROP STORAGE/UNLOADING

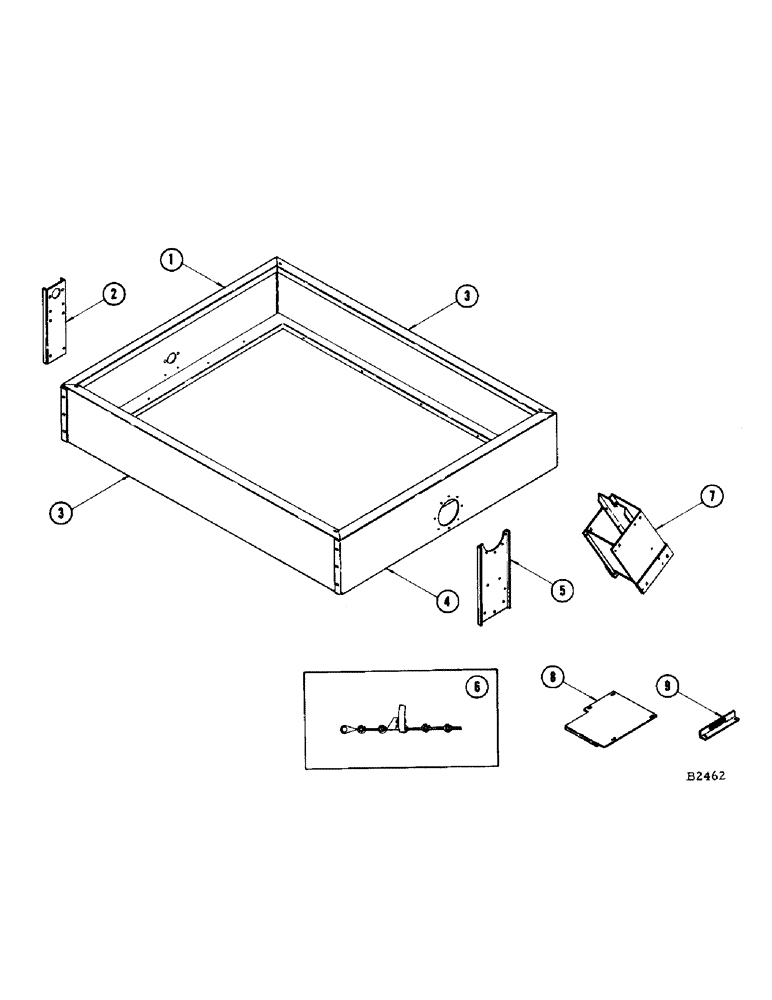

Схема запчастей Case IH 1160 - (06) - GRAIN BIN AND ELEVATOR EXTENSIONS (80) - CROP STORAGE/UNLOADING
2
5
3
1
8
3
9
4
6
7

Артикул

Название

Примечание

Количество

1

F13215

SCREW

EXTENSION - R.H., grain bin (Before #8357001)

1шт.

F14970

EXTENSION - R.H., grain bin (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

8шт.

2

F13147

STIFFENER - extension (Before #8357001)

1шт.

F14966

STIFFENER - extension (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

BOLT - 5/16" x 1/2" N.F. hex. (114-108) nut (129-122)

2шт.

3

F13213

SCREW

EXTENSION - front and rear, grain bin

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

8шт.

4

F13214

BOLT

EXTENSION - L.H., grain bin (Before #8357001)

1шт.

F14969

EXTENSION - L.H., grain bin (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

8шт.

5

F13148

SUPPORT - tube (Before #8357001)

1шт.

F14967

SUPPORT - tube (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

9шт.

6

F87126

CHAIN - conveyor (NSS) #55 complete chain consists of 1-F86424, 1-F86422, 1-F86420, 1-F78446 and 2-F79706

1шт.

F88530

CHAIN - conveyor, complete (#CA550 - 7 inch flight) See chain page 9 #B958 catalog; consists of 39 flights

1шт.

7

F87066

TUBE - extension

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-118) nut (129-101)

7шт.

SCREW - 1/4" x 1/2" rhd. N.C. mach. (75-48) nut (25-104)

2шт.

WASHER - 1/4" std. (195-18) L.W. (92-4)

9шт.

8

F12364

SECTION - floor, removable

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

2шт.

9

F13150

BRACKET - elevator support

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

Выбрано товаров: 25
