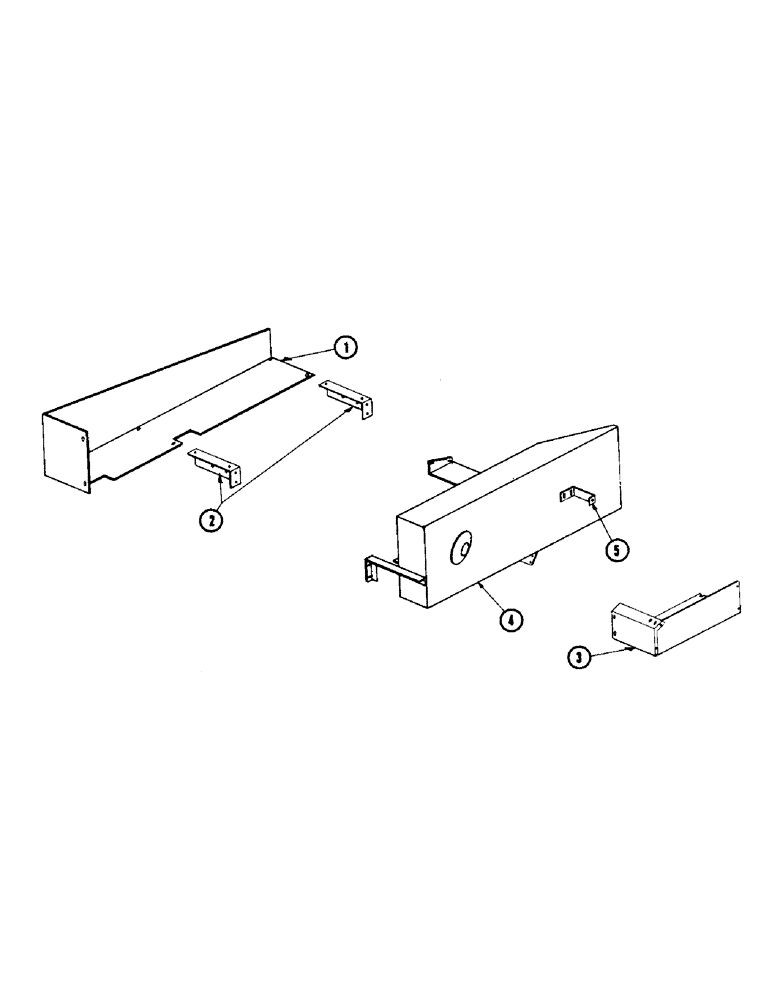

Запчасти Case IH 1160 (28) - FAN TRASH AND MUD SHIELD (74) - CLEANING

1

F13167

SCREW

SHIELD - fan trash, R.H.

1шт.

BOLT - 3/8" x 1/2" N.F. hex. (114-210) nut (129-123)

4шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.

2

F9510

ANGLE - support

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

3

F13166

SHIELD - fan trash, L.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

BOLT - 3/8" x 1/2" N.F. hex. (114-210) nut (129-123)

2шт.

4

F87084

SHIELD - mud V.S. traction drive

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

6шт.

5

F12849

BRACKET - safety shield

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

2шт.

F19960

LATCH

- for F12849 (Not shown)

1шт.

25-104

NUT,1/4"-20, G5

2шт.

117EB

SPRING

- latch (Not shown)

1шт.
