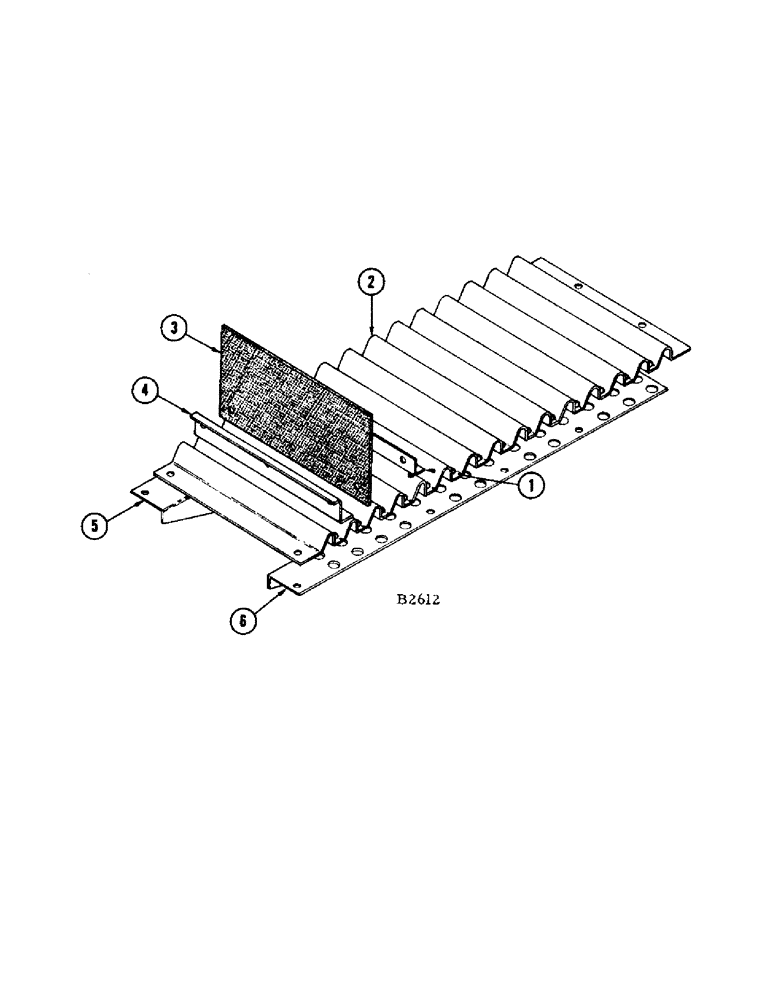

Запчасти Case IH 1160 (10) - COB DEFLECTOR AND GRID STIFFENER BEFORE S/N 8357001 (74) - CLEANING

1

F88057

ANGLE - rear

4шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

8шт.

2

F14492

COVER - grid, front

4шт.

3

F14999

FLIGHT (Replaces F14061)

4шт.

4

F14060

ANGLE - front

4шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

12шт.

5

F88059

STIFFENER - grid, R.H.

4шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2) wshr. (95-4)

16шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1)

4шт.

LOCKWASHER - 1/4" (192-19)

20шт.

6

F88058

STIFFENER - grid, L.H.

4шт.

COMMODITIES - same as ref. 5

1шт.

F11415

CLAMP - grid cover (Not shown) For rear of F14492

4шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

8шт.
