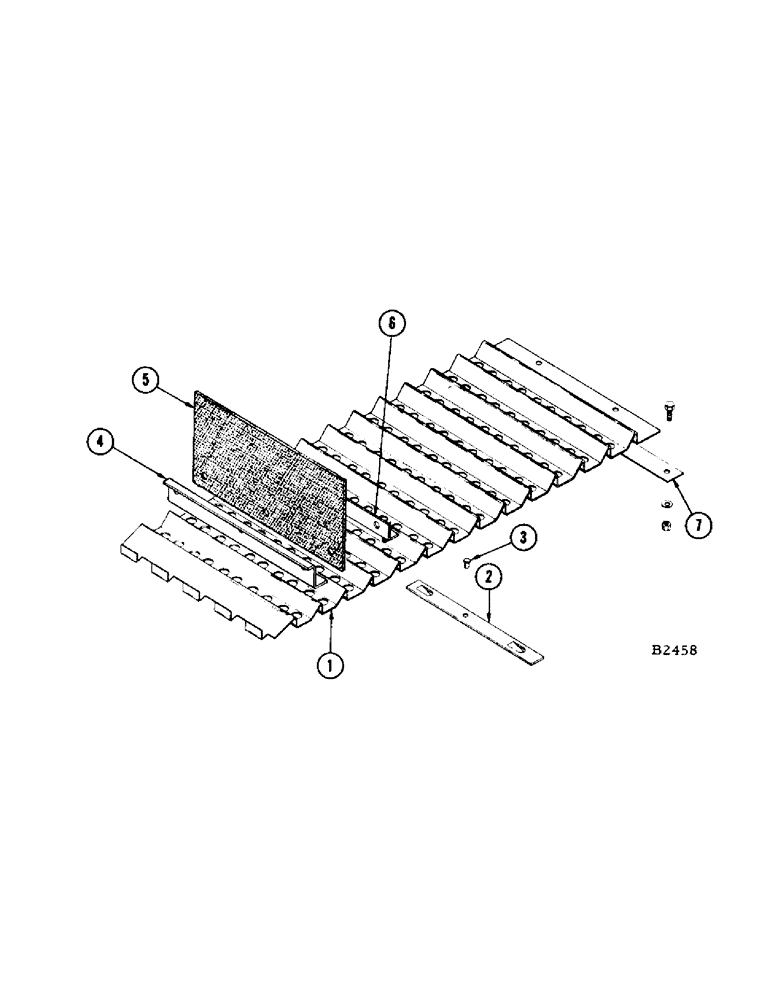

Запчасти Case IH 1160 (10[1]) - COB DEFLECTOR AND GRID STIFFENER, S/N 8357001 AND AFTER, REAR STRAWWALKER GRID COVER (74) - CLEANING

1

F13200

COVER

- front grid

4шт.

2

F13201

SCREW

CLAMP - grid cover

4шт.

3

F21193

STUD - trimount

4шт.

4

F14060

ANGLE - front

4шт.

BOLT - 1/4" x 5/8" N.C. hex (113-2)

12шт.

NUT - 1/4" N.C. hex (129-101) LW (192-19)

12шт.

5

F14999

FLIGHT

4шт.

6

F88057

ANGLE - rear

4шт.

NUT - 1/4" N.C. hex. (129-101) LW (192-19)

8шт.

7

F11415

CLAMP - grid cover

4шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2)

8шт.

NUT - 1/4" N.C. hex (129-101) LW (192-19)

8шт.

1

F13200

COVER

- grid, strawwalker

16шт.

2

F13201

SCREW

CLAMP - grid cover

16шт.

3

F21193

STUD - trimount. for F13200 and F13201

16шт.

7

F11415

CLAMP - grid cover

16шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

32шт.
