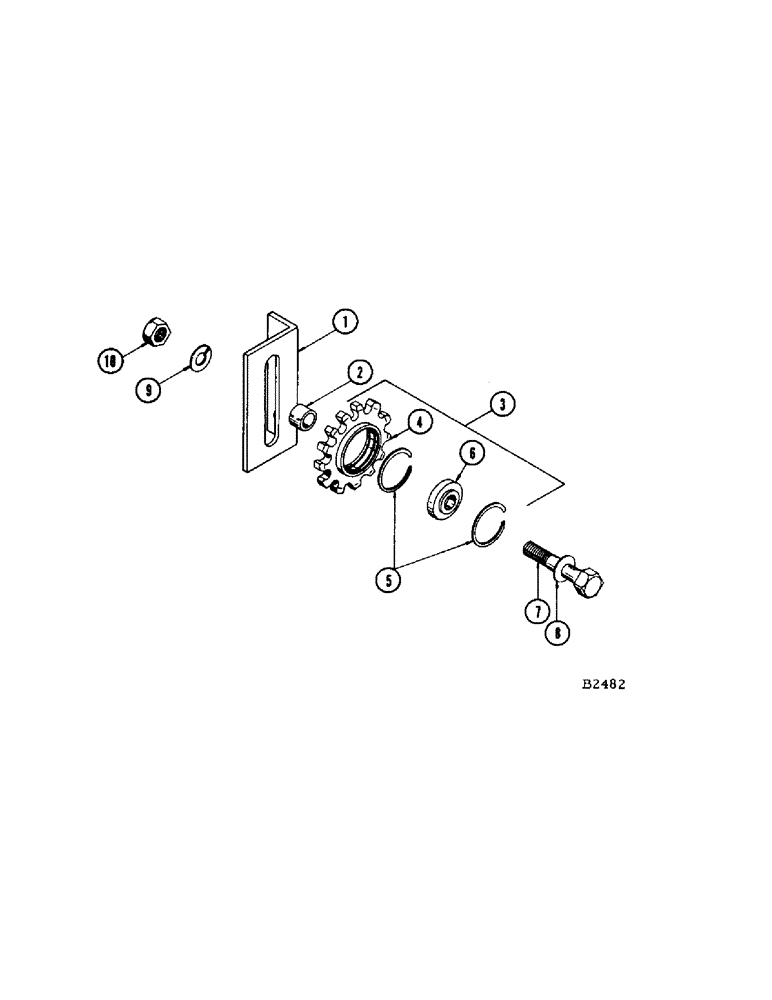

Запчасти Case IH 1160 (12) - BEATER DRIVE TIGHTENER BEFORE S/N 8311400, AND BEATER (72) - SEPARATION

1

F11363

BRACKET - idler

1шт.

BOLT - 3/8" x 1-3/8" N.F. hex. (14-622) nut (25-116)

2шт.

2

V13384

SPACER

1шт.

3

F87294

SPROCKET AND BEARING ASSEMBLY

1шт.

4

NSS

NOT SOLD SEPARAT

SPROCKET - idler

1шт.

5

O3338BF

SNAP RING

2шт.

6

F16246

BEARING, BALL

BEARING

1шт.

7

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

1шт.

8

195-41

WASHER,5/8"

- SAE std. flat 5/8"

1шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

F87280

BEATER - less shaft (Replaces F88190 when stock is exh.)

1шт.

F88190

BEATER - less shaft (Replaced by F87280)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) L.W. (92-5), beater

6шт.

F87319

SPROCKET (32T) Beater drive (In place of F86067), beater

1шт.

F87782

SHAFT - beater

1шт.

ROLL PIN - 1/4" x 1-1/2" (138-138) fl. wshr. (195-49), beater

1шт.

F87322

CHAIN - beater drive (83-riveted and 1-conn. link) Use 1-B17141, 1-B17140, 2-B17138 chains, 1-D24870 roller link and 1-B17157 conn. link #80 roller chain or cut from B17158 (In place of F7872), beater

1шт.

B17158

CHAIN (AG)

ROLLER CHAIN - #80 - 10 ft. roll (See page 125 #B958 parts catalog), beater

1шт.
