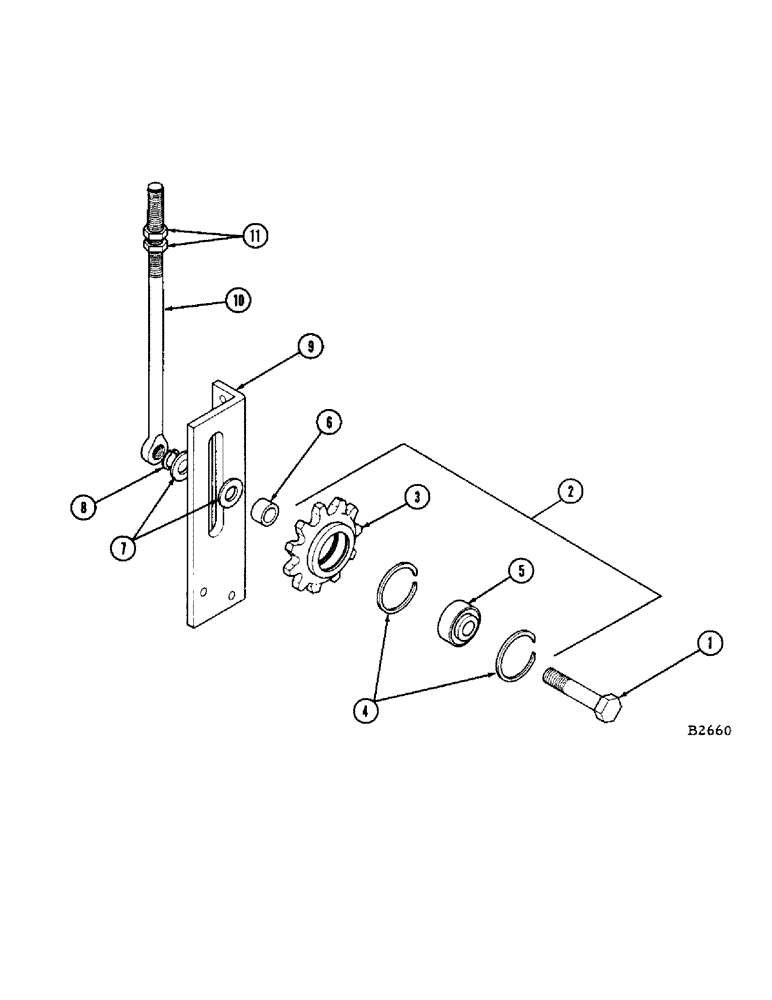

Запчасти Case IH 1160 (12[1]) - BEATER DRIVE TIGHTENER S/N 8311400 AND AFTER, AND CONVEYOR RAKE (72) - SEPARATION

1

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

1шт.

2

F87294

SPROCKET AND BEARING ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

SPROCKET - idler

1шт.

4

O3338BF

SNAP RING

2шт.

5

F16246

BEARING, BALL

BEARING

1шт.

6

VC1450

BUSHING

SPACER (7/8" O.D. x 15/32" - 12 ga.)

1шт.

7

195-41

WASHER,5/8"

- SAE std. flat 5/8"

1шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

F14484

BRACKET - idler

1шт.

BOLT - 3/8" x 1-3/8" N.F. hex. (14-622) nut (25-116)

2шт.

10

F9362

ROD - adjusting

1шт.

11

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

F88132

RAKE - conveyor (In place of F88187)

1шт.

F14539

SLAT - rake, conveyor

25шт.

Repairs for slats or attaching links require these three items.

1шт.

F88150

LINK - R.H. attaching, conveyor rake

25шт.

Repairs for slats or attaching links require these three items.

1шт.

F88151

LINK - L.H. attaching, conveyor rake

25шт.

Repairs for slats or attaching links require these three items.

1шт.

F10673

LINK

- offset #CA550, conveyor rake

1шт.

F54319

LINK

- connector #CA550, conveyor rake

1шт.

F10818

LINK

- roller #CA550, conveyor rake

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) locknut (131-5), conveyor rake

50шт.

F86221

SPROCKET - rake drive (In place of F87837 and F14166), conveyor rake

1шт.

F12197

BEARING, conveyor rake

1шт.

F10754

CHAIN (NSS) Drives rake (In place of F14167) 131-riveted, 1-offset and 1-connecting link (Use 2-B12517, 1-B12518, 2-B12520 chains and 1-B12522 offset link #CA2050 or cut from B17104) (See page 143 #B958 parts catalog), conveyor rake

1шт.
