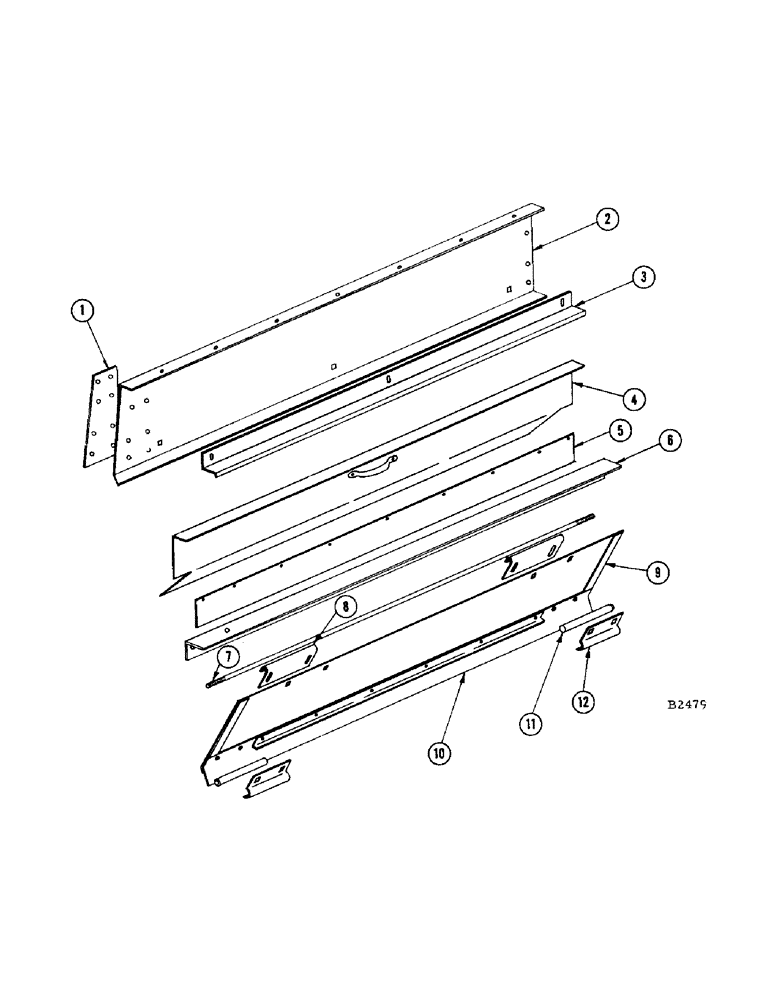

Запчасти Case IH 1160 (04) - CONCAVE ACCESS SECT., MAIN COMBINE DRV SHAFT, MAIN FRME AND TOOL BOX, CONCAVE ADJ. LEVER AND LINKAGE (66) - THRESHING

1

F13211

SCREW

GUSSET - front cross channel

1шт.

BOLT - 3/8" x 1-3/8" N.F. hex. (14-622) nut (25-116)

4шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.

2

F13209

SCREW

CHANNEL - front cross

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

7шт.

WASHER - 1/4" std. (195-18) L.W. (92-4)

7шт.

3

F9828

PLATE - for front cross angle

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) wing nut (129-404)

3шт.

4

F78028

CROSS SHEET - front

1шт.

228-3

HANDLE - door (Stanley #479)

1шт.

49-35

RIVET - 3/16" x 5/16" W.B.

2шт.

5

F7891

WIPER (Rubber) Feeder spout

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

9шт.

6

F13208

ANGLE - cross, lower front

1шт.

7

F7807

TIE ROD - front cylinder post

1шт.

NUT - #29E 180 ESNA (131-9)

2шт.

8

F12569

CLAMP

2шт.

9

F86046

DOOR - boot

1шт.

10

F11887

SEAL - boot

1шт.

11

F11889

SHAFT - pivot, boot door

2шт.

12

F11890

CLAMP - pivot pin boot door

2шт.

F1967

HUB - main drive sheave (In place of F1393), main combine drive shaft

1шт.

NUT - 7/8" - 14 N.F. ESNA (131-17) washer (195-49), main combine drive shaft

1шт.

F13399

SPROCKET (20T) In place of F7849, main combine drive shaft

1шт.

BOLT - 3/8" x 2" N.F. hex. (14-632) nut (25-116), main combine drive shaft

5шт.

F14485

GUIDE - main drive belt (Outer) In place of F11995, main combine drive shaft

1шт.

F14483

GUIDE - main drive belt (Inner) In place of F12463 (See page 135 #B958 parts catalog)

1шт.

F87114

FRAME - main (In place of F87757) (See page 289 #B958 parts catalog), main frame and tool box

1шт.

F87813

ARM - concave adjusting, R.H. (Replaces F76944 when stock are exhausted), concave adjusting lever and linkage

1шт.

F11032

ROD - concave adjusting, front (Replaces F14502), concave adjusting lever and linkage

2шт.

F11033

ROD - concave adjusting, rear (Replaces F14503) (See page 113 #B958 parts catalog), concave adjusting lever and linkage

2шт.
