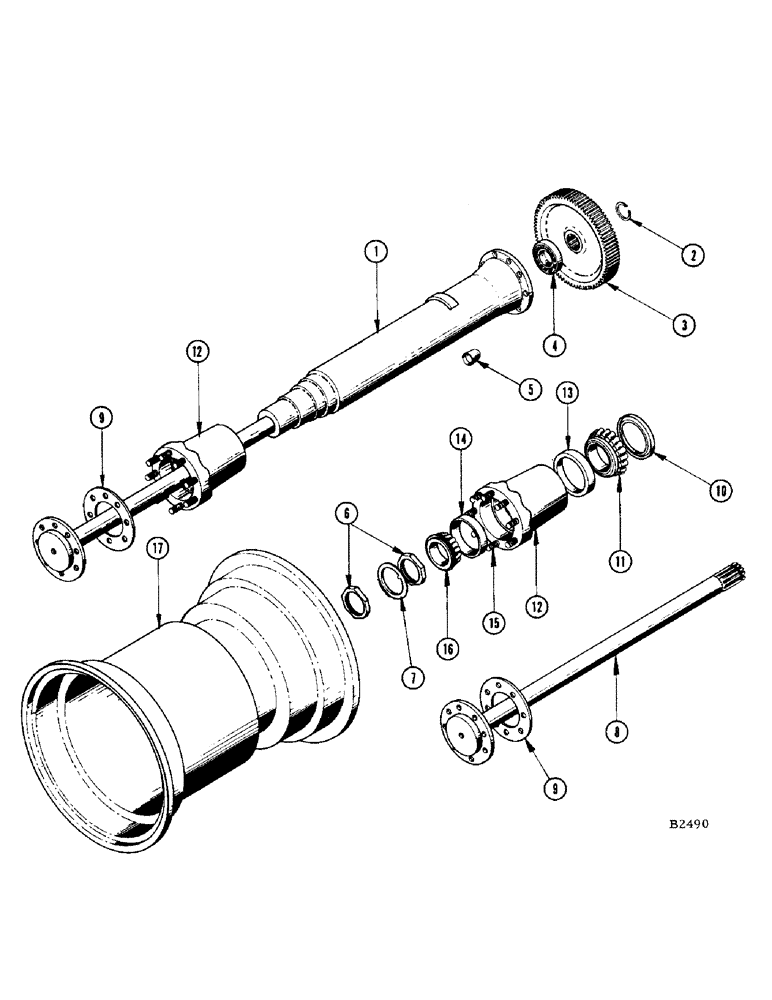

Запчасти Case IH 1160 (22[1]) - DRIVE WHEELS AND HUBS (44) - WHEELS

1

F87375

HOUSING - axle, R.H.

1шт.

F87376

HOUSING - axle, L.H.

1шт.

2

F9815

SNAP RING - axle shaft

2шт.

3

F1282

GEAR (79T) Axle shaft and final drive

2шт.

4

F9812

BEARING

- final drive gear

2шт.

5

F9810

DOWEL - for F9806 stud

4шт.

6

F13542

LOCKNUT - hub bearing

4шт.

7

F13544

WASHER - hub bearing locknut

2шт.

8

F3155

SHAFT - axle

2шт.

9

F13545

GASKET - hub to axle shaft

2шт.

10

F13247

SEAL - oil, inner hub

2шт.

11

F13248

CUP ASSY.

CONE - inner, hub

2шт.

12

F88707

HUB - wheel

2шт.

13

F13546

CUP

BEARING CUP - inner

1шт.

14

A14985

BEARING CUP

- outer

1шт.

15

F14992

STUD - wheel hub

8шт.

16

F13249

BEARING

CONE - outer, hub

2шт.

17

F87127

WHEEL (DW-16) (Replaced by F88294 when stock is exh.)

2шт.

F88294

WHEEL (DW-16-26) Replaces F87127

2шт.

F62206

NUT

- for ref. 15 and 17

16шт.
