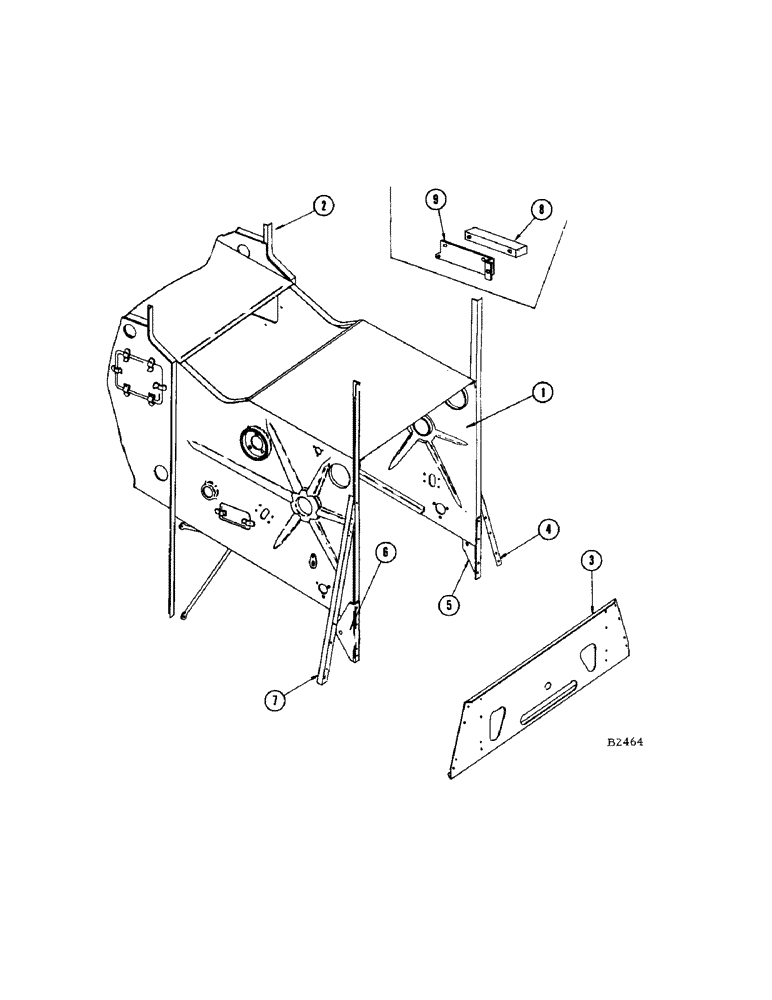

Запчасти Case IH 1160 (02[2]) - FRONT SIDES AND DECK (39) - FRAMES AND BALLASTING

1

F87314

SHEET - side, L.H.

1шт.

2

NSS

NOT SOLD SEPARAT

POST - cylinder, rear L.H.

1шт.

3

F13206

PLATE - front, main frame

1шт.

4

F13203

SCREW

BRACE - L.H. cylinder post

1шт.

BOLT - 3/8" x 1-3/8" N.F. hex. (14-622) nut (25-116)

4шт.

5

F13204

REINFORCEMENT - cylinder post, L.H.

1шт.

6

F13205

SCREW

REINFORCEMENT - cylinder post, R.H. (Bottom)

1шт.

F14777

REINFORCEMENT - cylinder post, R.H. (Top)

1шт.

7

F13210

SCREW

BRACE - R.H. cylinder post

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

5шт.

8

F4126

BLOCK - chain bumper (For F87322 chain)

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540) FW (195-21) locknut (131-3)

2шт.

9

F14945

SUPPORT - bumper block

1шт.

F14114

STIFFENER - strip, second body diagonal to main frame

2шт.

F14213

CLIP - line (In place of F9263) (See page 205 #B958)

3шт.

B17120

KIT

SET OF DECALS - for "1160" self-propelled combine

1шт.

321-17

DECAL

PATENT (Platform cross angle)

1шт.

321-280

DECAL

"POWER SHAFT RPM" (L.H. side sheave)

1шт.

321-349

DECAL

"GREASE SPLINE" (L.H. side sheet)

1шт.

321-583

DECAL

"SPECIAL" (Front of operator's platform)

1шт.

321-653

DECAL

NAME AND ADDRESS (Rear of seat support)

1шт.

321-662

DECAL

SAFETY (Platform in front of ladder)

1шт.

321-712

DECAL

FAN BELT WARNING (R.H. side sheet near fan pulley)

1шт.

321-741

DECAL

"FOLD BACK"

1шт.

321-789

DECAL

"OIL RESERVOIR LEVEL"

1шт.

321-808

DECAL

EAGLE (Both sides of rear hood)

2шт.

321-900

DECAL

"CASE" (Front of grain bin)

1шт.

321-901

DECAL

"CASE" (Rear hood)

1шт.

321-925

DECAL

"SERVICE CHECK LIST" (L.H. side of seat support)

1шт.

321-943

DECAL

"1160" (Front of operator's platform)

1шт.

321-1007

DECAL

TERMINAL BOX - cab w/out air conditioning

1шт.

321-1063

DECAL

OPERATOR'S INSTRUCTIONS - air conditioning

1шт.

321-1064

DECAL

TERMINAL BOX - cab w/air conditioning

1шт.
