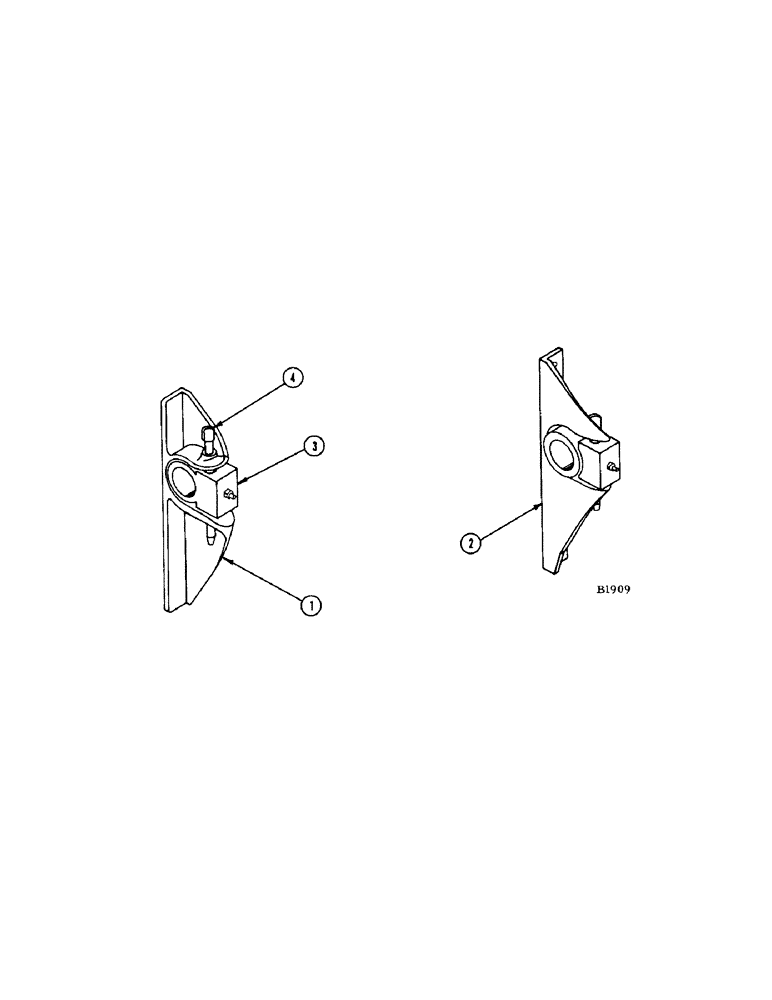

Запчасти Case IH 1160 (02[1]) - HEADER PIVOT BRACKETS (39) - FRAMES AND BALLASTING

1

F1337

BRACKET - header pivot, R.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

2

F1338

BRACKET - header pivot, L.R.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

3

F86049

GUIDE

BLOCK - header pivot bearing

2шт.

FITTING - grease (219-36)

2шт.

4

F6266

PIN - locking

2шт.

A29054

HAIR PIN COTTER

COTTER - hairpin, for F6266 (Not shown)

2шт.
