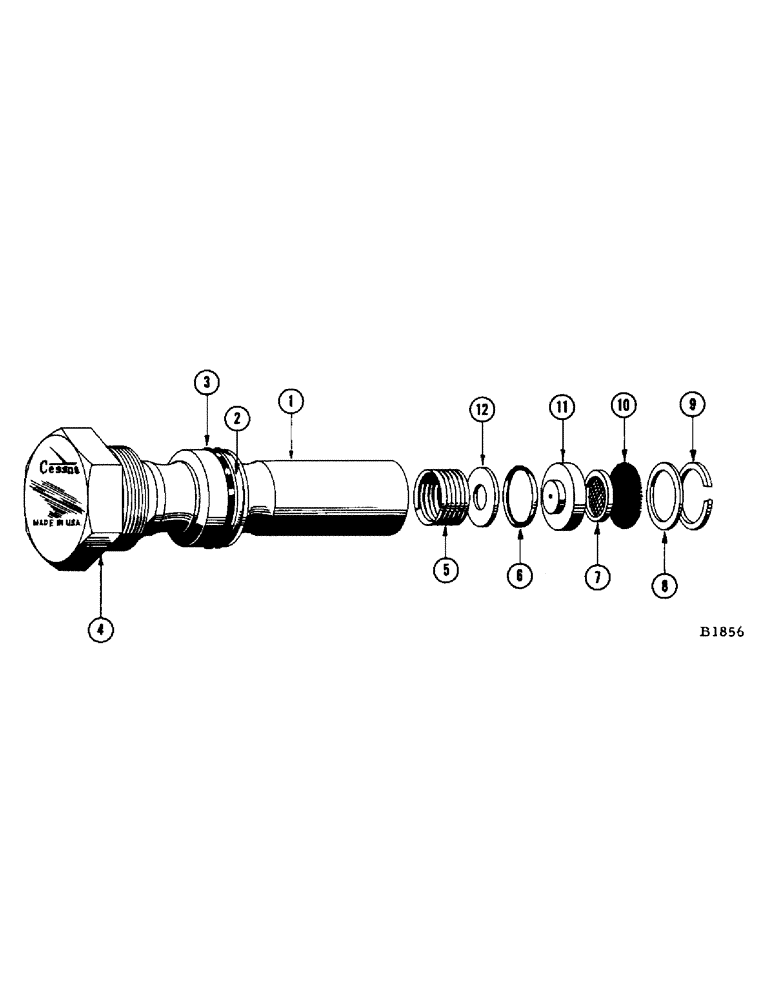

Запчасти Case IH 1160 (18) - F88054 RELIEF VLVE, F88053 VLVE, HEADER LIFT AND VAR. SPEED CNTRL LNKGE, HEADER LIFT CYL., HYD. SYST (35) - HYDRAULIC SYSTEMS

1

F88054

VALVE

- relief (In place of F87195)

1шт.

2

NSS

NOT SOLD SEPARAT

"O" RING (3/32" x 5/8" I.D.)

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER (3/32" x 5/8") Backup - rubber

1шт.

4

NSS

NOT SOLD SEPARAT

"O" RING (3/32" x 3/4" I.D.)

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

NSS

NOT SOLD SEPARAT

"O" RING (1/16" x 3/8" I.D.)

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN - reinforcing

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER (.020" thick) For filter screen

1шт.

9

NSS

NOT SOLD SEPARAT

SNAP RING - for filter screen washer

1шт.

10

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - orifice

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER (.030" thick) Spring

1шт.

F84831

SEAL

KIT - repair, port plate (Contains ref. 2, 3 and 4)

1шт.

F88053

VALVE - control (In place of F87181), F88053 valve

1шт.

F88054

VALVE

- relief assembly for F1290 port plate (In place of F87195) (See page 261 #B958 parts catalog), F88053 valve

1шт.

F88053

VALVE - control, hydraulic (In place of F87181) (See page 257 #B958 parts catalog), header lift and variable speed control linkage

1шт.

F87869

CYLINDER (In place of F87112) Before #8334601, head lift cylinder

2шт.

F88359

CYLINDER (In place of F88199) #8334601 and after, head lift cylinder

2шт.

NSS

NOT SOLD SEPARAT

BARREL, head lift cylinder

1шт.

NSS

NOT SOLD SEPARAT

ROD - piston, head lift cylinder

1шт.

F86294

CYLINDER

REPAIR KIT, head lift cylinder

1шт.

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING (3/16" x 1-7/8" I.D.), head lift cylinder

1шт.

F8084

WASHER

(3/16" x 2-3/8" O.D.) Backup, head lift cylinder

1шт.

F10649

OIL SEAL

OIL SEAL, head lift cylinder

1шт.

F10650

RING, SNAP

SNAP RING (1-7/8" rd. open) Piston rod (See page 87 #B958 parts catalog), head lift cyilnder

1шт.

F87874

LINE - hydraulic, valve to ram (In place of F87013), hydraulic system

1шт.

F14212

HOSE - hydraulic, valve to ram (In place of F14141), hydraulic system

1шт.

F14214

HOSE - hydraulic, ram to ram (In place of F14139) (See page 249 #B958 parts catalog), hydraulic system

1шт.
