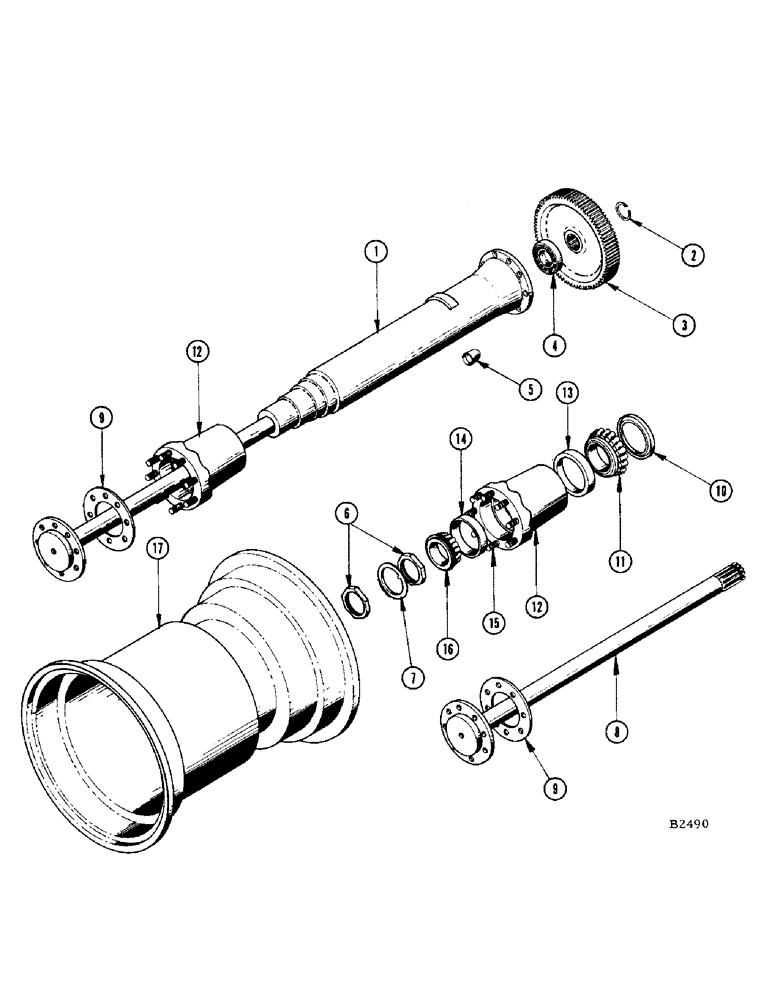

Запчасти Case IH 1160 (22) - MAIN AXLE AND HOUSING, DRIVE WHEELS AND HUBS (25) - FRONT AXLE SYSTEM

1

F87375

HOUSING - axle, R.H.

1шт.

F87376

HOUSING - axle, L.H.

1шт.

2

F9815

SNAP RING - axle shaft

2шт.

3

F1282

GEAR (79T) Axle shaft and final drive

2шт.

4

F9812

BEARING

- final drive gear

2шт.

5

F9810

DOWEL - for F9806 stud

4шт.

6

F13542

LOCKNUT - hub bearing

4шт.

7

F13544

WASHER - hub bearing locknut

2шт.

8

F3155

SHAFT - axle

2шт.

9

F13545

GASKET - hub to axle shaft, drive wheels and hubs

2шт.

10

F13247

SEAL - oil, inner hub, drive wheels and hubs

2шт.

11

F13248

CUP ASSY.

CONE - inner, hub, drive wheels and hubs

2шт.

12

F88707

HUB - wheel, drive wheels and hubs

2шт.

13

F13546

CUP

BEARING CUP - inner, drive wheels and hubs

1шт.

14

A14985

BEARING CUP

- outer, drive wheels and hubs

1шт.

15

F14992

STUD - wheel hub, drive wheels and hubs

8шт.

16

F13249

BEARING

CONE - outer, hub, drive wheels and hubs

2шт.

17

F87127

WHEEL (DW-16) (Replaced by F88294 when stock is exh.), drive wheels and hubs

2шт.

F88294

WHEEL (DW-16-26) Replaces F87127, drive wheels and hubs

2шт.

F62206

NUT

- for ref. 15 and 17, drive wheels and hubs

16шт.
