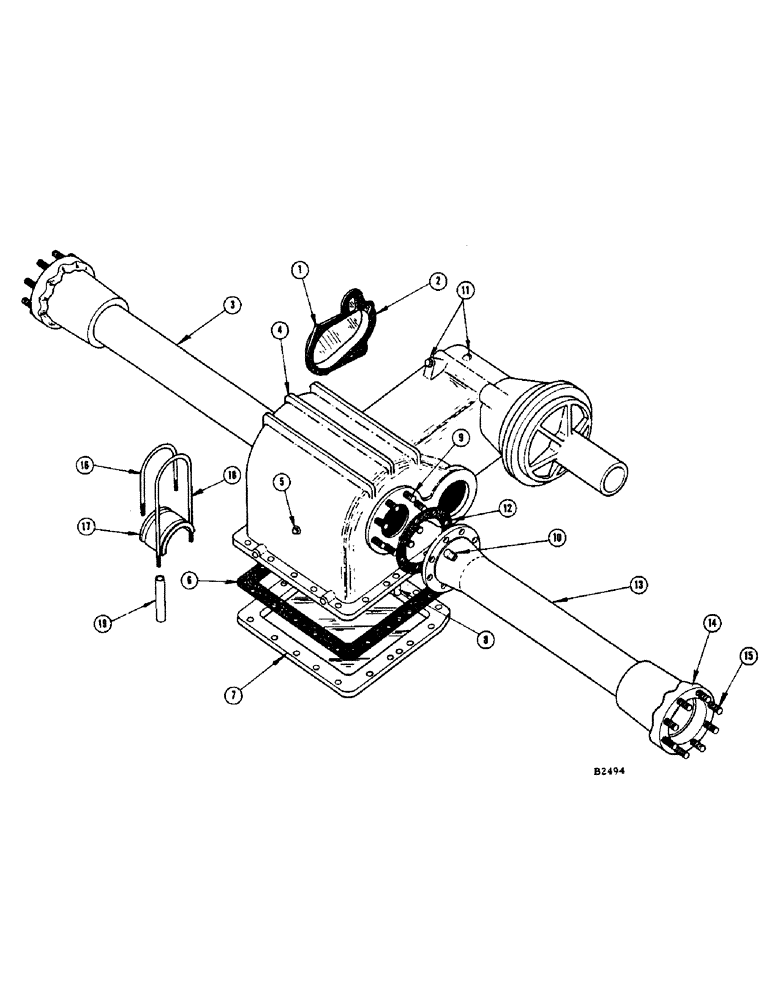

Запчасти Case IH 1160 (26) - TRANSMISSION CASE AND AXLE HOUSING (21) - TRANSMISSION

1

F1272

COVER - side, case

1шт.

BOLT - 3/8" x 1" N.C. hex. gr. 7-8 stl. (113-215) L.W. (92-6)

10шт.

2

F9786

GASKET - for F1272 cover

1шт.

3

F87375

HOUSING - axle, R.H.

1шт.

4

F1939

CASE - transmission

1шт.

5

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - 3/4" sq. socket hd. pipe

1шт.

6

F9787

GASKET - transmission case cover

1шт.

7

F1938

COVER - transmission case, lower

1шт.

PLUG - 3/4" sq. hd. pipe (221-15)

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. gr. 7-8 stl. (114-403) and nut (129-545) L.W. (92-8)

13шт.

BOLT - 1/2" x 1-3/4" N.C. hex. gr. 7-8 stl. (113-401) and L.W. (92-8)

5шт.

8

F9750

STUD - transmission case cover

2шт.

9

F9806

STUD - transmission, Serial Range: case-axle

16шт.

NUT - 9/16" N.F. hex. grade 8 (129-551) L.W. (92-9)

16шт.

10

T25082

BREATHER - transmission case

1шт.

11

F9736

SCREW - gear shift lock ball spring

2шт.

12

F9817

GASKET - axle housing to case (F1939)

2шт.

13

F87376

HOUSING - axle, L.H.

1шт.

14

F88707

HUB - wheel (See drive wheels and hubs)

2шт.

15

F14992

STUD - wheel hub

16шт.

16

F13197

"U" BOLT - front axle, short

2шт.

LOCKWASHER - 3/4" std. (92-12) nut (25-1112)

4шт.

17

F1957

REINFORCEMENT - axle tube

2шт.

18

F13198

"U" BOLT - front axle, long

2шт.

LOCKWASHER - 3/4" std. (92-12) nut (25-1112)

4шт.

19

F13199

SPACER - pipe, main frame (For F13198)

2шт.
