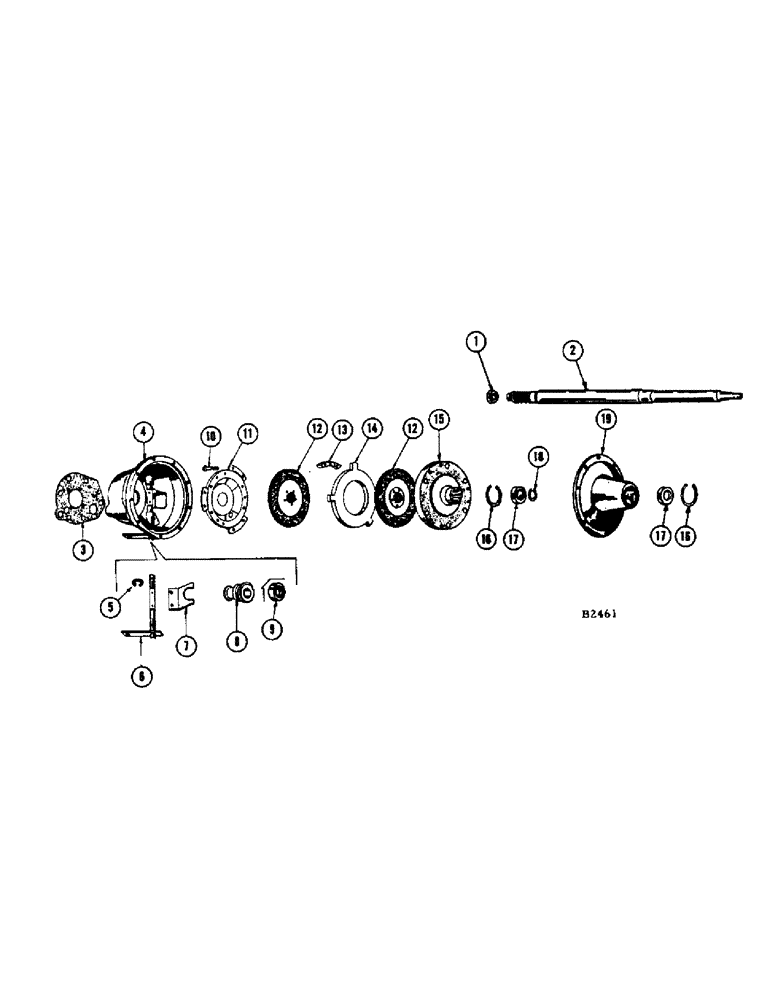

Запчасти Case IH 1160 (20) - CLUTCH SHAFT AND HOUSING, VAR. SPEED TRACTION DRIVE SHEAVES (18) - CLUTCH

1

F13162

SCREW

LOCKNUT - adjusting

1шт.

2

F12985

SHAFT - input (21-7/16" long) Replaced by F14811 when stocks are exhausted

1шт.

F14811

SHAFT - input (Replaces F12985)

1шт.

KEY - #28 Woodruff (126-47)

1шт.

3

F9784

GASKET

- clutch, Serial Range: housing-case

1шт.

4

F1276

HOUSING - clutch

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. gr. 7-8 stl. (113-301)

7шт.

5

F10139

SNAP RING - clutch release shaft

2шт.

6

F77781

SHAFT (13-7/16" long) Clutch release with lever

1шт.

7

F19660

FORK

YOKE - clutch release

1шт.

BOLT - 5/16" x 1-3/8" N.F. hex. gr. 7-8 stl. (114-103) and nut (129-513) L.W. (92-5)

2шт.

8

F86996

CARRIER - bearing (Before #8334601)

1шт.

9

A29979

BEARING, BALL

BEARING - double clutch release (Before #8334601)

1шт.

F88186

CARRIER - bearing (#8334601 and after)

1шт.

F14557

BEARING

- release (#8334601 and after)

1шт.

10

F13225

SCREW

- cap, clutch mounting

6шт.

LOCKWASHER - 5/16" (92-5)

6шт.

11

F86995

COVER - clutch

1шт.

12

F88067

DISC - clutch driven (Replaced by F88769 when stock is exh.)

2шт.

F88769

DISC - clutch driven (Replaces F88067)

2шт.

13

F88697

SPACER - block (Set of 3)

1шт.

14

G1149

PLATE - intermediate (Replaces F1953)

1шт.

15

F1975

PLATE - clutch mounting (Replaces F1948)

1шт.

16

F13160

SNAP RING,#350, 3.716", Int, Spiral

- for inner clutch, lower bearing (F12986)

2шт.

17

F12986

BEARING, BALL

BEARING - input shaft, clutch cover

2шт.

18

A27089

SNAP RING,2.36mm Thk, Ext

SNAP RING - inner, retaining F12986 bearing

1шт.

19

F1947

COVER - clutch housing

1шт.

PLUG - 1/8" pipe (221-849)

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (14-628) nut (25-116)

9шт.

F13212

V-BELT

Variable Speed Traction, See Page 265 #B958 Parts Catalog, Variable Speed Traction Drive Sheaves

1шт.
