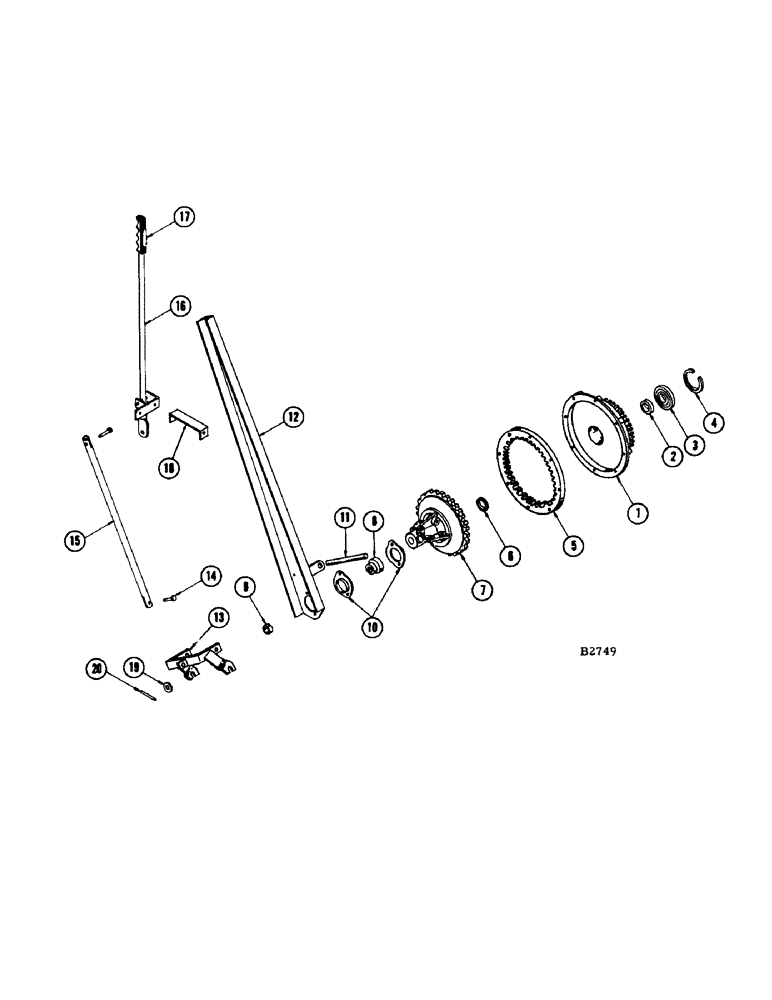

Запчасти Case IH 1160 (17A) - OVER CENTER CLUTCH, HEADER DRIVE S/N 8334601 AND AFTER (18) - CLUTCH

1

F87502

HUB - inner, with welded sprocket

1шт.

2

F8467

SPACER (1-7/16" O.D. #11 ga.)

1шт.

3

O3163CS

X

BEARING

2шт.

4

A30091

RING, SNAP

SNAP RING

1шт.

5

NLS

NO LONGER SERVICED

CLUTCH - outer ring

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

92-6

LOCK WASHER,3/8"

6шт.

6

F14302

SPACER

1шт.

7

F88309

CLUTCH - beater shaft

1шт.

8

F90306

BEARING ASSY

BEARING

1шт.

9

O4233CS

COLLAR

1шт.

10

F9417

FLANGE

- for ref. 8

2шт.

11

F12090

PIVOT - yoke, clutch

1шт.

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

12

F87283

STRUT ASSEMBLY

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

13

F88310

YOKE ASSEMBLY

1шт.

14

O731CW

PIN - header

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

2шт.

15

F13091

LINK -, Serial Range: crank-yoke

1шт.

16

F87045

LEVER - header clutch

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

17

F13012

SCREW

GRIP - hand lever

1шт.

18

F13795

STIFFENER

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

1шт.

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4" x 7/8" N.F. hex.

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

19

195-49

WASHER

- 7/8" SAE std. flat

1шт.

20

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.
