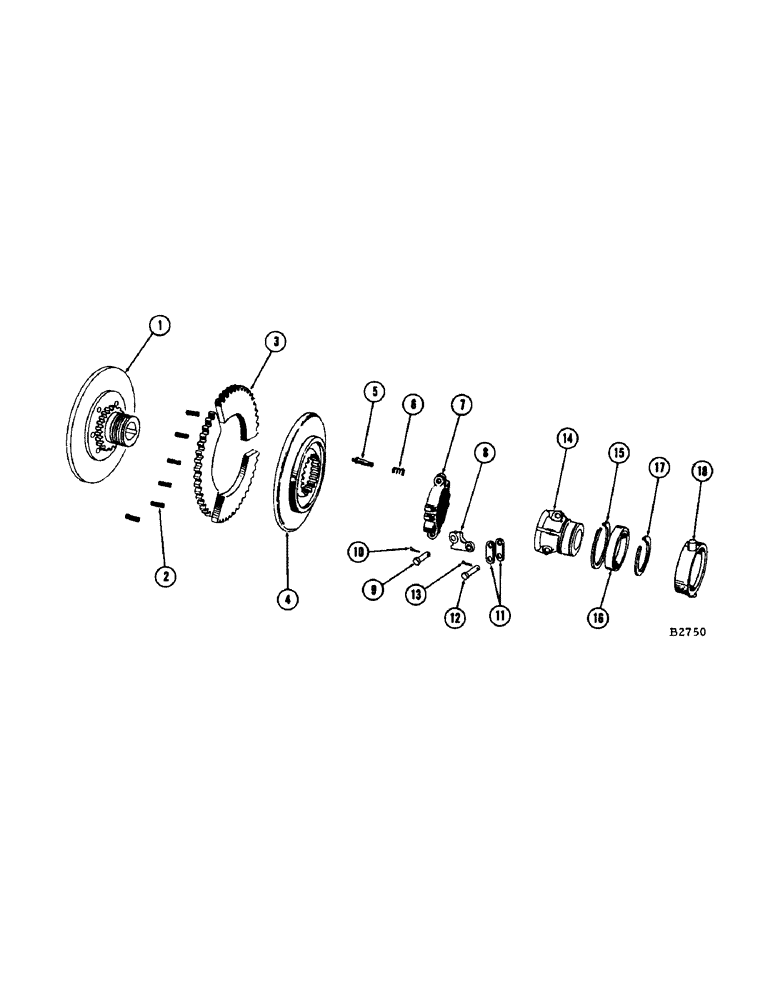

Запчасти Case IH 1160 (17A[1]) - OVER CENTER CLUTCH, CLUTCH S/N 8334601 AND AFTER (18) - CLUTCH

F88309

CLUTCH ASSY., Includes Ref. 1 - 18

1шт.

1

F2907

HUB AND BACK PLATE

1шт.

2

F14639

DETENT

SPRING - release

6шт.

3

F14633

PLATE - driving (3 segments)

1шт.

4

A40198

PLATE ASSY.

PLATE - floating

1шт.

5

A31135

PIN

- lock, adjusting

1шт.

6

A40197

SPRING

- adjusting lock pin

1шт.

7

F3160

YOKE - adjusting

1шт.

8

A31134

LEVER

- toggle

4шт.

9

F14634

PIN

- headed, for ref. 7 and 8

4шт.

10

132-66

COTTER PIN

PIN - cotter, 5/32" x 5/8" (For ref. 9)

4шт.

F88326

SLIDING SLEEVE AND COLLAR ASSEMBLY

1шт.

11

A31137

DRAG LINK

LINK - lever

8шт.

12

A40192

AXLE PIN,8mm OD x 26.16mm L

PIN - lever link, for ref. 11 and 14

8шт.

13

132-44

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), (For ref. 12) 1/8" x 1/2"

8шт.

14

F2909

SLEEVE - sliding

1шт.

15

F14809

SNAP RING - collar retaining

1шт.

16

F14808

BEARING - for F2910 (Ref. 18)

1шт.

17

F14810

RING, SNAP

SNAP RING - bearing retaining

1шт.

18

F2910

COLLAR

1шт.
