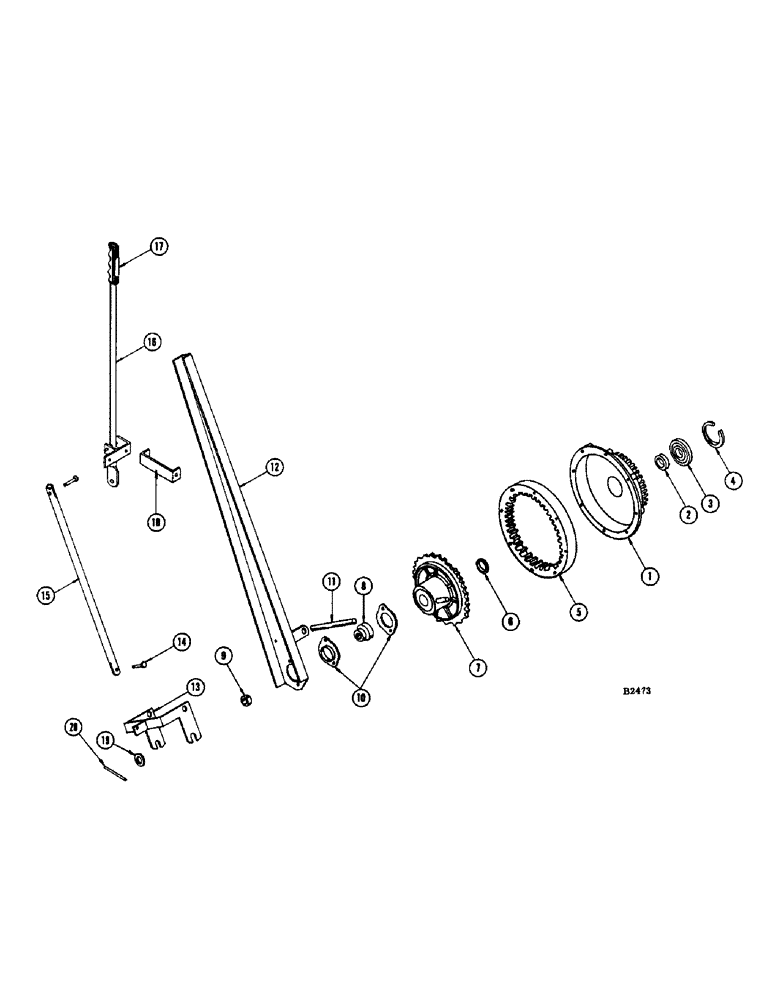

Запчасти Case IH 1160 (14) - OVER CENTER CLUTCH, HEADER DRIVE, BEFORE S/N 8311400 (18) - CLUTCH

1

F87297

HUB - inner, with welded 20T sprocket

1шт.

2

F8467

SPACER (1-7/16" O.D. #11 ga.)

1шт.

3

O3163CS

X

BEARING

2шт.

4

A30091

RING, SNAP

SNAP RING

1шт.

5

O3730CS

RING - clutch, outer

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) L.W. (92-5)

8шт.

6

F12380

SPACER - inner hub and clutch back plate

1шт.

7

F86068

CLUTCH - beater shaft

1шт.

8

F90306

BEARING ASSY

BEARING

1шт.

9

O4233CS

COLLAR

1шт.

10

F9417

FLANGE

- for ref. 8

2шт.

11

F12090

PIVOT - yoke, clutch

1шт.

PIN - 3/16" x 1-1/4" cotter (132-93)

2шт.

12

F87283

STRUT - yoke clutch

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

WASHER - 5/16" std. (195-21) L.W. (92-5)

1шт.

13

F87284

YOKE

1шт.

14

O731CW

PIN - header

2шт.

PIN - 1/8" x 3/4" cotter (132-46) Washer - 3/8" (19-525)

2шт.

15

F13091

LINK -, Serial Range: crank-yoke

1шт.

16

F87045

LEVER - hand

1шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) nut (129-121)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

17

F13012

SCREW

GRIP - hand lever

1шт.

18

F13795

STIFFENER - for ref. 16

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

19

195-110

WASHER,7/8"

- U.S. std. flat 7/8"

1шт.

20

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.
