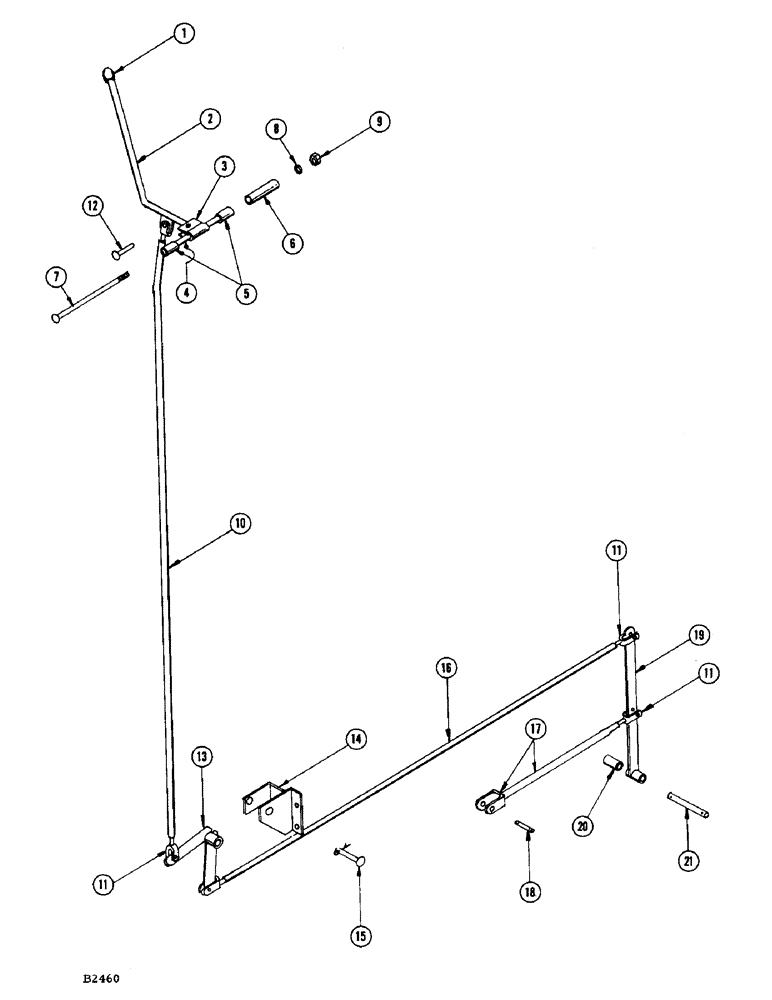

Запчасти Case IH 1060 (06) - RANGE SHIFT LINKAGE (29) - HYDROSTATIC DRIVE

1

A23885

KNOB

- lever, shift

1шт.

2

F87275

LEVER - range shift

1шт.

3

F8171

PIVOT - shift lever

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut, 3/8" N.F. ESNA (131-5)

1шт.

4

F13059

SCREW

SHAFT - pivot

1шт.

5

K8128

SPACER - range shift

2шт.

6

F13055

SCREW

SPACER - for ref. 4

1шт.

7

111-352

BOLT - 3/8" x 8" N.F. rhd sq. nk.

1шт.

8

195-25

WASHER,3/8"

- flat 3/8"

1шт.

9

131-5

LOCK NUT,3/8"-16, GB

NUT - 3/8" - 24 N.F. elastic stop

1шт.

10

F11958

ROD - shift, upper (55-1/2")

1шт.

11

VR2694

CLEVIS - for ref. 10, 16, and 17

5шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for ref. 11, VR2694 3/8" x 1.060"

5шт.

PIN - 3/32" x 3/4" cotter (132-26)

5шт.

13

F77542

BELLCRANK - shift pivot

1шт.

14

F87214

BRACKET - pivot, range shift

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

15

F13276

PIN - pivot, for ref. 13

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

16

F9283

ROD - shift, lower

1шт.

17

F77545

ROD - selector w/welded yoke

1шт.

18

F9282

PIN - clevis, for ref. 17

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

2шт.

19

F77544

ARM - range shift control

1шт.

20

G49609

X

SPACER - for ref. 21

1шт.

21

F9279

PIN - pivot (Attaches ref. 19 to main frame)

1шт.

PIN - 3/32" x 1" cotter (132-28)

2шт.
