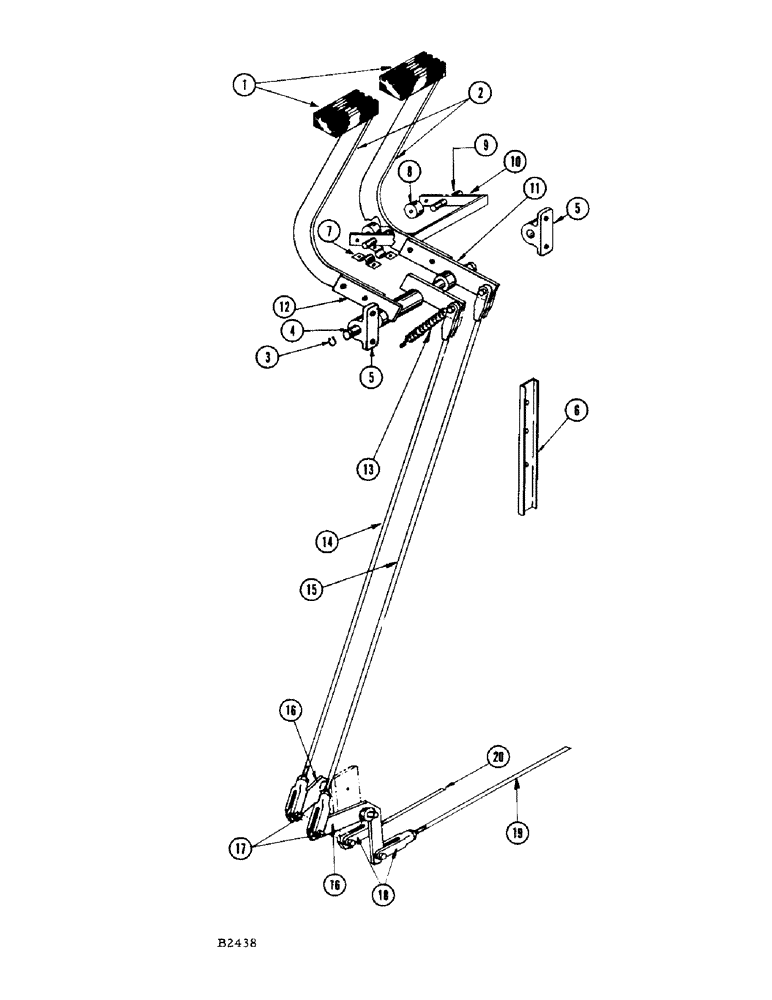

Запчасти Case IH 1060 (04) - BRAKE PEDAL LINKAGE (33) - BRAKES & CONTROLS

1

F9197

PAD

COVER - pedal, brake

2шт.

2

F77503

PEDAL - brake

2шт.

BOLT - 3/8" x 1-1/8" N.F. hex. (14-618) nut (25-116)

4шт.

3

F62095

RING, SNAP

SNAP RING - ring for ref. 4

2шт.

4

F13259

SCREW

SHAFT - pivot, brake pedal

1шт.

5

F1227

BEARING - pivot

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-618) nut (25-116)

4шт.

6

F11941

STIFFENER

1шт.

7

F8161

CLIP - anchor, for ref. 9

4шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

8шт.

8

F8159

CAM - parking brake

2шт.

9

F8160

SHAFT - pivot, parking brake

1шт.

10

F8158

LEVER - parking brake

1шт.

BOLT - 3/8" x 1-1/8" N.F. hex. (14-618) nut (25-116)

2шт.

11

F77498

HUB - for R.H. brake pedal

1шт.

FITTING - grease (219-33)

1шт.

12

F77499

HUB - for R.H. brake pedal

1шт.

FITTING - grease (219-33)

1шт.

13

O2533AB

SPRING - pedal return

2шт.

14

F87538

ROD - brake, upper L.H. (w/welded clevis)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

15

F87540

ROD - brake, upper L.H. (w/welded clevis)

1шт.

NUT - 5/16" N. F. hex. jam (25-155)

1шт.

16

F77540

BELLCRANK - brake pivot

2шт.

17

O5341CS

PIN - clevis, for 213-3

1шт.

PIN - 1/8" x 5/8" cotter (132-45)

1шт.

18

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for ref. 14, 15, 19 and 20

1шт.

19

F87557

ROD - brake, lower R.H. (w/welded clevis)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

20

F87555

ROD - brake, lower L.H. (w/welded clevis)

1шт.

NUT - 5/16" N.F. hex jam (25-155)

1шт.
