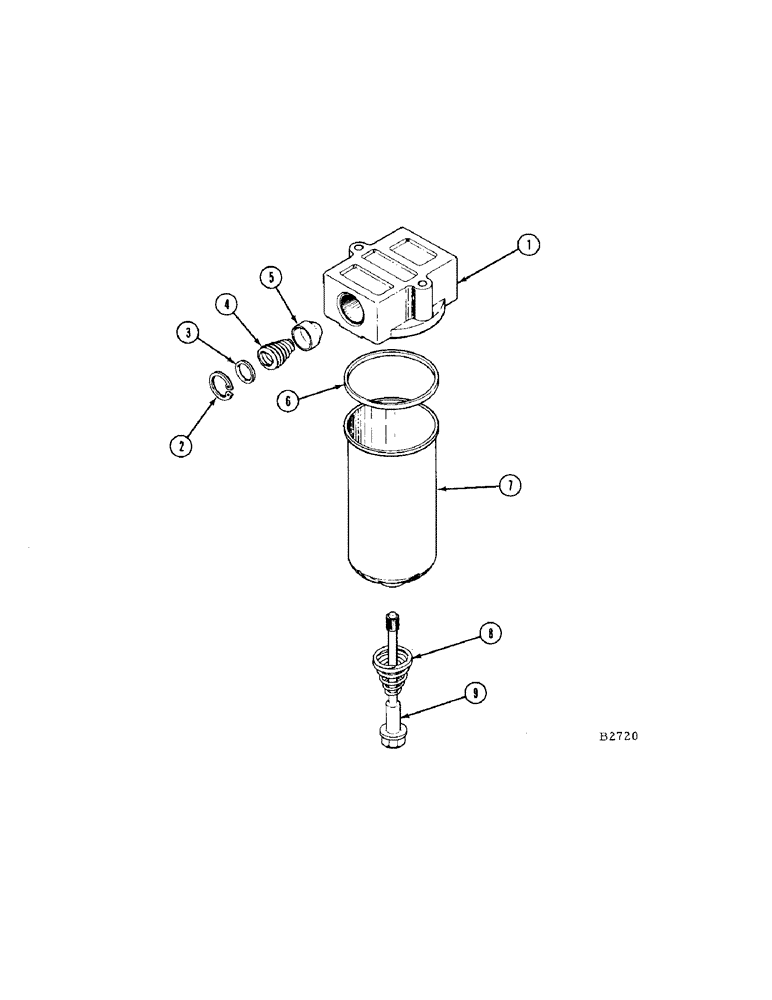

Запчасти Case IH 1060 (26) - F87248 OIL FILTER (29) - HYDROSTATIC DRIVE

F87248

FILTER

- oil

1шт.

F87264

KIT

ELEMENT - oil filter (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

2

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

1шт.

3

F14776

WASHER

1шт.

4

F14764

SPRING - by-pass valve

1шт.

5

F14766

POPPET - by-pass valve

1шт.

6

F14775

GASKET - filter base

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

8

F14768

SPRING - hold down, filter element

1шт.

9

F14767

BOLT - hold down, filter

1шт.

F87227

GOVERNOR - with pulley (In place of F87560)

1шт.

F13339

SPRING

1шт.

F82948

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-321) fl. wshr. (195-25)

2шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6) (See page 371 #958 Parts Catalog)

2шт.
