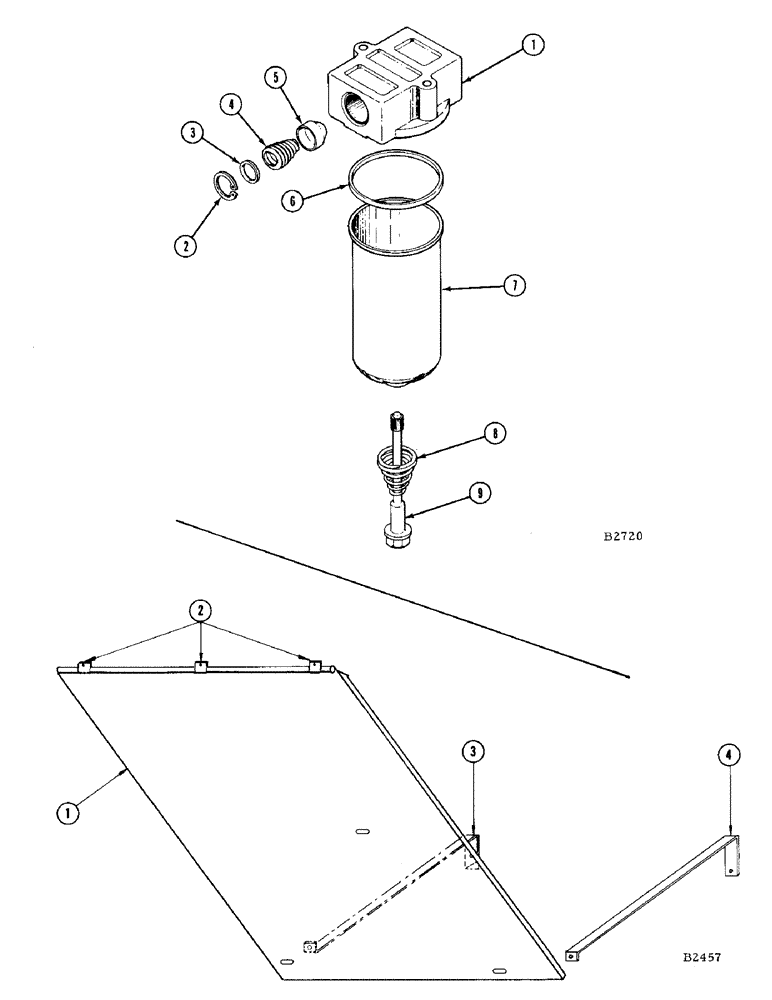

Запчасти Case IH 1060 (26[1]) - DRIVE SHIELDS (29) - HYDROSTATIC DRIVE

1

F87254

SHIELD - safety, L. H. (In place of F86688)

1шт.

2

F20976

CLIP

- hinge

3шт.

3

F13336

SCREW

BRACE - front, L.H. safety shield (In place of F86688)

1шт.

4

F13337

BRACE - rear, L.H. safety shield (In place of F12576) (See page 309 #A958 Parts Catalog)

1шт.

F13284

RADIATOR - (In place of F12693)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620)

4шт.

NUT - 3/8" N.F. hex. jam (25-156)

8шт.

PLUG - 1/4" sq. pipe (221-12)

1шт.

F87230

STACK - lower, radiator (In place of F86755)

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

1шт.

F88192

STRAP ASSEMBLY - radiator screen

1шт.

NUT - 1/4" N.C. wing (129-404) L.W. (92-4)

1шт.

F14565

SEAL - radiator air stack (2" O.D. x 1/8" thick) (See page 329 #A958 Parts Catalog)

2шт.
