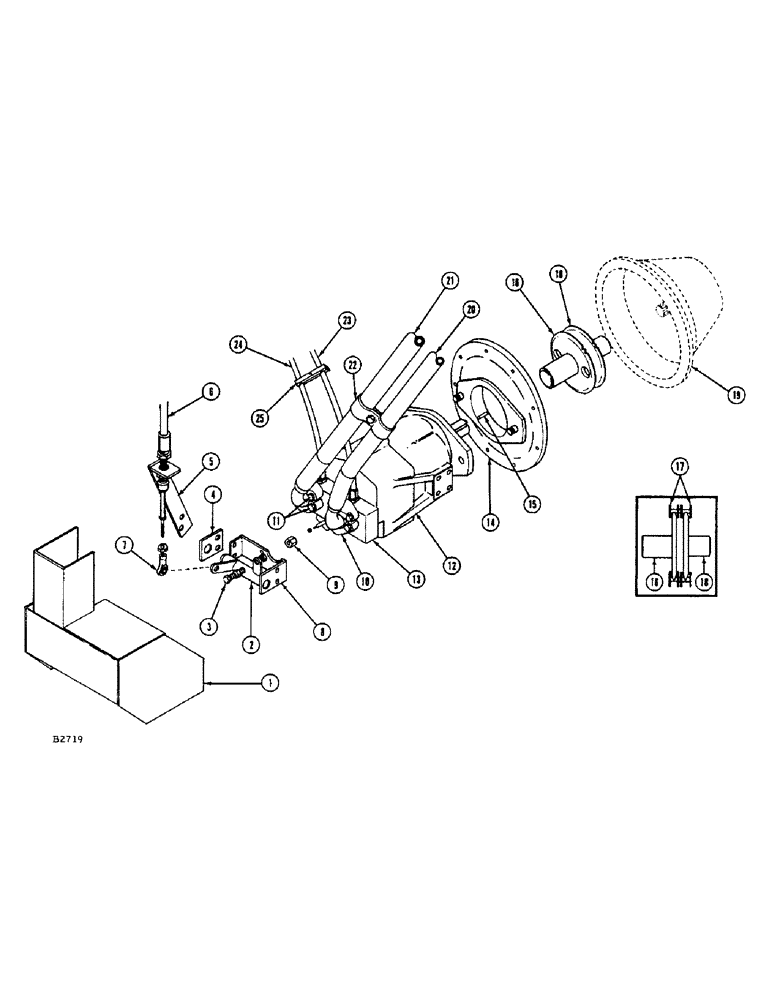

Запчасти Case IH 1060 (18) - MOTOR TO TRANSMISSION DRIVE (29) - HYDROSTATIC DRIVE

1

F88191

SHIELD - motor controls

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) L.W. (192-21)

2шт.

WASHER - 3/8" (195-525) nut 3/8" N.F. hex. (129-123)

2шт.

2

F88120

BELLCRANK - motor servo

1шт.

3

F14535

BOLT - special

1шт.

NUT - 3/8" N.F. jam (25-156)

2шт.

4

F14509

BRACKET - mounting

1шт.

5

F88141

BRACKET - cable

1шт.

6

F88137

CABLE - push-pull, motor

1шт.

7

A35134

BEARING

EYE - motor cable

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

8

F14510

BRACKET - bellcrank mounting

1шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (11-524)

2шт.

NUT - 5/16" N.C. hex (25-105) L.W. (92-5)

2шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) L.W. (92-6)

2шт.

9

F14511

NUT - motor servo

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

10

F13298

CLAMP

- half, for pump and motor

8шт.

BOLT - 7/16" x 3-1/4" N.C. hex. gr. #5 (13-752) L.W. (92-7)

4шт.

BOLT - 7/16" x 1-3/4" N.C. hex. gr. #5 (13-728) L.W. (92-7)

8шт.

11

F14041

STUD - for F13298 and F87207

4шт.

LOCKWASHER - 7/16" (92-7) nut (25-107)

4шт.

12

F87207

MOTOR - hydrostatic

1шт.

13

F88145

BLOCK - relief valve

1шт.

PLUG - (218-5156)

2шт.

PLUG - (218-5158)

1шт.

14

F87208

ADAPTER - clutch housing

1шт.

NUT - 3/4" N.F. hex. (25-1112) L.W. (92-12)

2шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (14-628) nut (25-116)

9шт.

15

F14226

KEY - (7/16" x 7/16" x 2-51/64") for ref. 12 and 16

1шт.

16

F87209

COUPLER - motor half

1шт.

SCREW - 1/4" x 1/2" N.C. Allen hd. (178-28)

1шт.

17

F87211

CHAIN - roller, engine coupler

1шт.

18

F87210

COUPLER - input half

1шт.

19

F1276

HOUSING - clutch

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. gr. 7-8 stl. (113-301)

7шт.

20

F87240

HOSE - 1" hydraulic

1шт.

21

F87239

HOSE - 1" hydraulic

1шт.

F13297

HARDWARE

"O" RING - for ref. 20 and 21 (Not shown)

4шт.

22

F13301

CLAMP - hose

4шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106)

2шт.

23

F87817

HOSE - dump valve (Long)

1шт.

24

F87818

HOSE - dump valve (Short)

1шт.

25

F12441

CLAMP - hose

4шт.

F3156

GEAR - (21T) 2nd intermediate drive (In place of F3099)

1шт.

O7286A

BEARING - intermediate shaft, R.H. (In place of B18215) (See page 271 #A958 Parts Catalog)

1шт.

F3157

GEAR - (27T) differential intermediate (In place of F31000) (See page 271 #A958 Parts Catalog)

1шт.

F3152

SHAFT - w/19T gear, input drive (In place of F3151) (See page 271 #A958 Parts Catalog)

1шт.

F1728

CASE - side cover (In place of F1272) (See page 281 #A958 Parts Catalog)

1шт.
