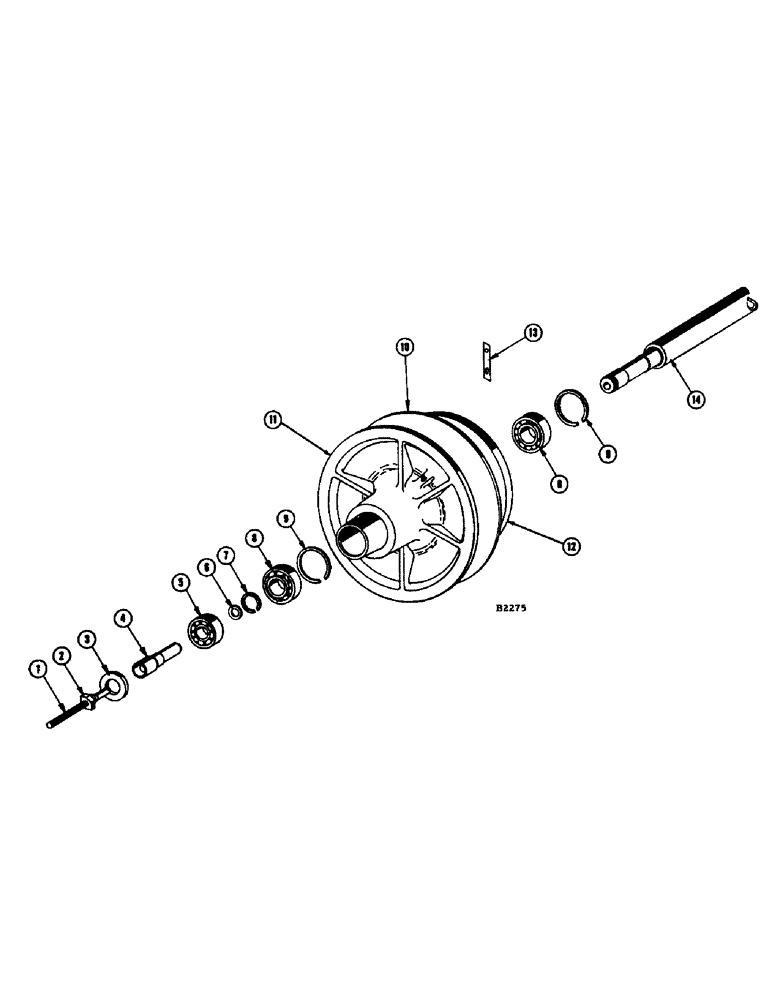

Запчасти Case IH 1060 (264) - VARIABLE SPEED TRACTION DRIVE SHEAVES (16) - TRACTION VARIATOR

1

F12617

ROD - adjusting

1шт.

JAM NUT - 1/2" N.F. hex. (25-158)

1шт.

2

O4027CS

NUT

- adjusting

1шт.

3

F10921

OIL SEAL

SEAL - for F8890 bearing (Ref. 5)

1шт.

4

F12619

PLUG - bearing support

1шт.

5

F8890

BEARING, BALL

BEARING - adjusting rod

1шт.

6

F12966

WASHER

1шт.

7

A21619

CIRCLIP

SNAP RING - retaining F8890 bearing

1шт.

8

F10753

BEARING

- V.S. sheaves

2шт.

9

B18276

RING, SNAP

RING - snap, retaining F10753 bearing (Ref. 8)

2шт.

A30091

RING, SNAP

RING - snap, for sheave (Not shown)

1шт.

10

F86724

SHEAVE - V.S. traction drive (Replaced by F94073 when stocks are exhausted)

1шт.

F13346

BUSHING

- traction drive sheave

3шт.

BOLT - 3/8" x 7/8" N.C. hex. (113-227)

6шт.

PIN - 3/16" x 1" spirol med. (138-2009)

3шт.

COTTER - 5/8" x 1-54/64" hair pin (136-60)

3шт.

FITTING - 1/4" - 28 (219-8)

2шт.

10

F94073

X

SHEAVE - V.S. traction drive (Replaces F86724) Before #8334601

1шт.

F13346

BUSHING

- traction drive sheave

3шт.

BOLT - 3/8" x 7/8" N.C. hex. (113-227)

6шт.

PIN - 3/16" x 1" spirol med. (138-2009)

3шт.

COTTER - 5/8" x 1-45/64" hair pin (136-60)

3шт.

FITTING - 1/4" - 28 (219-8)

2шт.

10

NSS

NOT SOLD SEPARAT

SHEAVE - V.S. traction drive (#8334601 and after) Replaces F86724 and F94073 when stock is exhausted

1шт.

11

F94074

SHEAVE

HALF AND PINS

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

136-60

PIN, SPLIT (COTTER)

COTTER - hairpin, 5/8" x 1-45/64"

3шт.

12

F1921

SHEAVE HALF

1шт.

F13346

BUSHING

3шт.

F1922

HUB

1шт.

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" N.C. hex. gr. 8

6шт.

13

F12618

STRAP - lockwasher

3шт.

14

F88328

SHAFT - V.S. upper (Replaces F86723) See P. 267

1шт.

F86723

SHAFT - V.S. upper (Replaces by F88328 when stock is exh.)

1шт.

F12280

BELT

Main Combine Drive, Not Shown

1шт.

F12642

BELT

- V.S. traction (Not shown) Before #8311400

1шт.

F13212

V-BELT

Variable Speed Traction Drive, Serial No. 8311400 and After

1шт.
