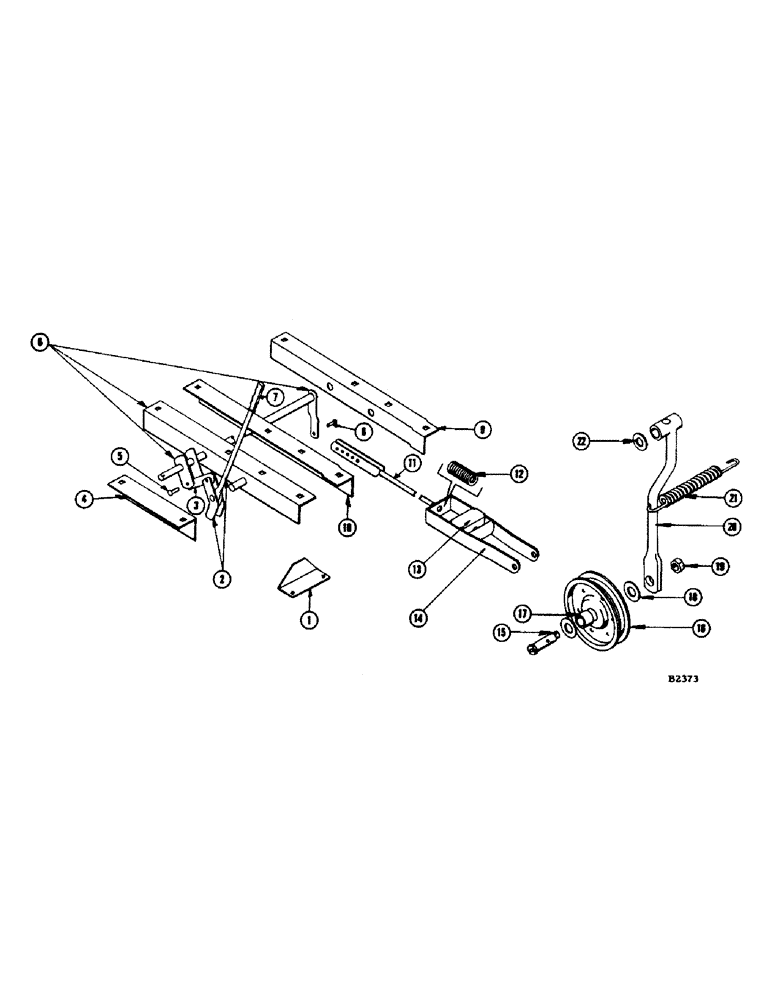

Запчасти Case IH 1060 (136) - MAIN COMBINE DRIVE IDLER ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

F13239

STOP - main combine drive throwout lever

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (14-414) nut (25-114)

2шт.

2

F87019

LEVER - control

1шт.

3

F8185

LINK - control

1шт.

4

F13040

ANGLE - L.H. control lever support (Replaced by F14491 when stock is exhausted)

1шт.

F14491

ANGLE - L.H. control lever support (Replaces F13040)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

1шт.

5

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - for ref. 2 and ref. 6

2шт.

PIN - 3/32" x 3/4" cotter (132-26)

2шт.

6

F87020

SHAFT - control

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

1шт.

7

F13011

SCREW

GRIP - control lever

1шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for ref. 11 3/8" x 1.060"

1шт.

PIN - 3/32" x 3/4" cotter (132-26)

1шт.

9

F13043

SUPPORT - control lever, R.H.

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

3шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104)

1шт.

10

F13039

SUPPORT - control lever, center

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

1шт.

11

F86155

CONTROL ROD - (Replaced by F88373 when stock is exhausted)

1шт.

F88373

CONTROL ROD - (Replaced F86155)

1шт.

NUT - 3/8" N.F. hex. (25-116)

2шт.

WASHER - 3/8" plain (195-25)

1шт.

12

F10901

SPRING

1шт.

13

F13798

GUIDE - rod and spring (Replaces F11256)

1шт.

14

F87844

STRAP - control (Replaces F10900)

1шт.

15

F7914

BOLT - shoulder

1шт.

FITTING - 1/8" str. (219-1)

1шт.

16

F86602

SHEAVE - idler

1шт.

17

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

18

O3739CK

X

WASHER - for F7914, ref. 15

2шт.

19

131-36

LOCK NUT,5/8"-18

NUT - 5/8" - 18 N.F. #29 NTE 108 ESNA

1шт.

20

F76973

ARM - tightener

1шт.

FITTING - 1/4" - 28 N.F. (219-400)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

21

F6940

SPRING - disengagement

1шт.

22

195-49

WASHER

- 7/8" plain

1шт.
