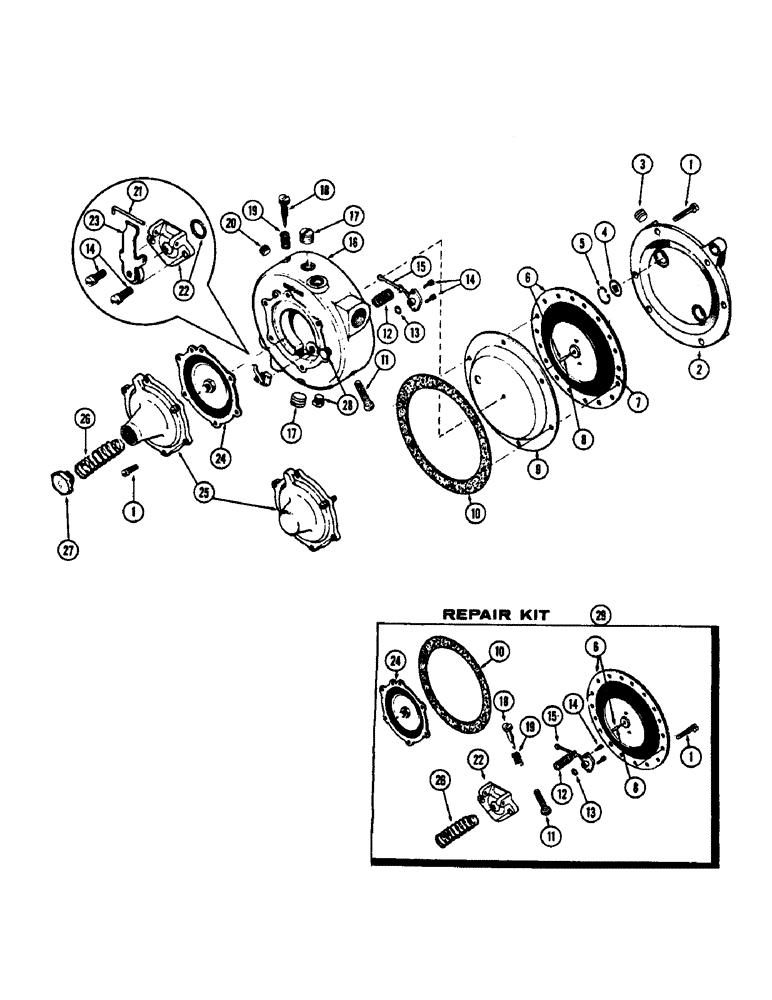

Запчасти Case IH 1060 (446) - REGULATOR, (284) L.P. GAS ENGINE (10) - ENGINE

A21231

REGULATOR ASSY. - engine fuel

1шт.

1

B50035

SCREW - mtg., frt. & rear cover

12шт.

2

B50201

PLATE - cover, low pressure end

1шт.

3

221-1041

PLUG

- pipe, 1/8" slotted headless

1шт.

4

B50087

VALVE - compensator

1шт.

5

B50086

RING - retaining, valve

1шт.

6

B50180

DIAPHRAGM

ASSY. - low pressure

1шт.

7

A40079

DIAPHRAGM

- low pressure

1шт.

8

B50178

PIN - push, diaphragm

1шт.

9

B50175

PLATE - partition

1шт.

10

B50177

GASKET - partition plate

1шт.

11

B50168

STRAINER - fuel inlet

1шт.

12

B50121

SPRING - valve, low pressure

1шт.

13

B50179

"O" RING - low & hi-pressure valve

2шт.

14

B50029

SCREW - valve mtg., low & high pressure

4шт.

15

B50181

VALVE - low pressure

1шт.

16

A25248

HOUSING - regulator

1шт.

17

221-1044

PLUG - pipe, 1/2" slotted headless

2шт.

18

B50024

SCREW - adjusting idle

1шт.

19

B50022

SPRING - idle adjusting

1шт.

20

A40167

SCREW - orifice, regulator

1шт.

21

B50159

PIN - valve lever

1шт.

22

B50183

VALVE - hi-pressure

1шт.

23

B50182

LEVER - hi-pressure valve

1шт.

24

B50108

DIAPHRAGM ASSY. - high pressure

1шт.

25

B50110

COVER - hi-pressure end

1шт.

26

B50111

SPRING - hi-pressure

1шт.

27

B50112

GUIDE - hi-pressure spring

1шт.

28

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

2шт.

29

B50052

REPAIR KIT - regulator

1шт.
