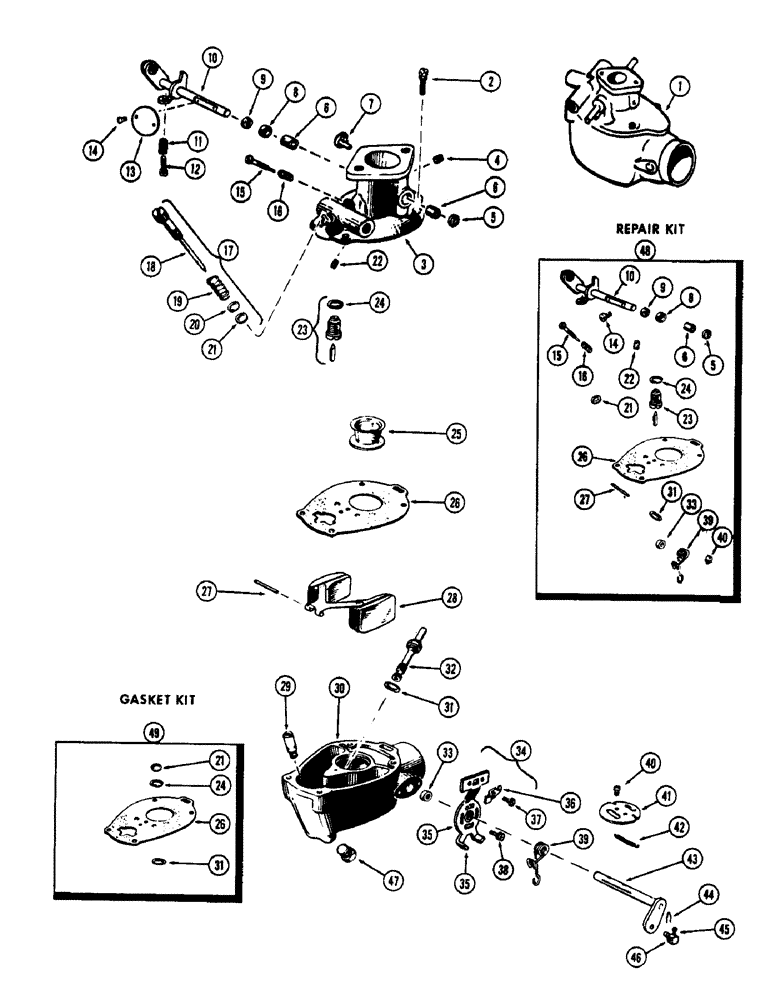

Запчасти Case IH 1060 (444) - CARBURETOR, (284) GASOLINE ENGINE (10) - ENGINE

1

A20813

CARBURETOR

ASSY. - engine fuel

1шт.

2

B51684

SCREW - mtg., throttle body to bowl

4шт.

3

B51908

BODY ASSY. - throttle

1шт.

4

B51695

PLUG - pipe, 5/16" N.F., headless

1шт.

5

B51850

RETAINER CUP

PLUG - cup, throttle shaft

1шт.

6

B51858

BUSHING

- throttle shaft

2шт.

7

A40320

STOP ASSY. - throttle

1шт.

8

B51806

PACKING

- throttle shaft

1шт.

9

B51851

RETAINER

- shaft packing

1шт.

10

B51665

SHAFT ASSY. - throttle

1шт.

11

B51742

SPRING

- throttle stop screw

1шт.

12

B51680

SCREW - adj., throttle stop

1шт.

13

B51668

FLY - throttle shaft

1шт.

14

B51702

SCREW,#6 - 32 x 1/4"

- mtg., Serial Range: fly-shaft

2шт.

15

B51789

NEEDLE

- adj., idle

1шт.

16

B51744

SPRING

- adj., needle, idle

1шт.

17

B51796

NEEDLE

ASSY. - power adjusting

1шт.

18

B51798

NEEDLE

- power

1шт.

19

B51732

VALVE SPRING

SPRING - power needle

1шт.

20

B51870

WASHER

- power needle

1шт.

21

B51723

GASKET

- power needle (See item #49)

1шт.

22

B51828

JET

- idle, carburetor

1шт.

23

B51914

VALVE

ASSY. - float

1шт.

24

B51703

GASKET

- float valve seat (See item 49)

1шт.

25

B51817

VENTURI

- (1-1/16" throat)

1шт.

26

B51704

GASKET

- throttle body to bowl (See item 49)

1шт.

27

B51778

SHAFT

- float, carburetor

1шт.

28

B51773

FLOAT

- carburetor

1шт.

29

B51781

SEAT - power needle

1шт.

30

NSS

NOT SOLD SEPARAT

BOWL ASSY. - carburetor (Order A20813)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - nozzle, main (See item 49)

1шт.

32

B51822

NOZZLE - main

1шт.

33

B51802

PACKING

- choke shaft

1шт.

34

B51771

BRACKET ASSY. - choke

1шт.

35

NSS

NOT SOLD SEPARAT

BRACKET - choke (Order B51771)

1шт.

36

B51765

CLIP

- choke bracket

1шт.

37

B51695

SCREW - mtg., Serial Range: clip-bracket

1шт.

38

B51686

SCREW - mtg., Serial Range: bracket-bowl

2шт.

39

B51733

SPRING - return, choke

1шт.

40

B51702

SCREW,#6 - 32 x 1/4"

- mtg., choke fly

2шт.

41

B51762

VALVE

FLY ASSY. - choke

1шт.

42

B51743

SPRING

- valve, choke fly

1шт.

43

B51750

SHAFT ASSY. - choke

1шт.

44

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

45

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

46

B51764

PIVOT

SWIVEL - choke shaft

1шт.

47

B51887

PLUG

- drain, bowl

1шт.

48

B51934

KIT

REPAIR KIT - carburetor

1шт.

49

B51725

X

GASKET KIT - carburetor

1шт.
