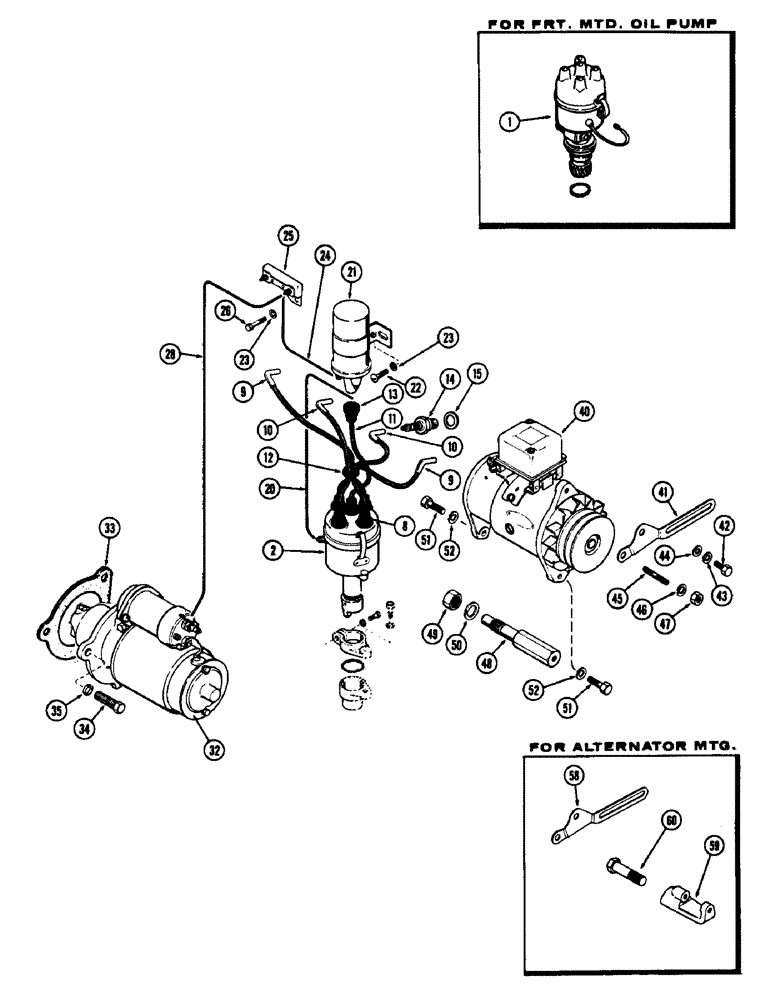

Запчасти Case IH 1060 (426) - IGNITION SYSTEM, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A24508

DISTRIBUTOR

ASSY. - (Prestolite or Autolite #4402) (For frt. mtd. oil pump) (See page 436)

1шт.

2

A57081

DISTRIBUTOR

ASSY. - (Prestolite or Auto Lite #4404) (For cam driven oil pump) See page 438)

1шт.

2

A24507

X

DISTRIBUTOR ASSY. - (Prestolite or Auto lite #4801) (For cam driven oil pump) (See page 440)

1шт.

8

A29338

COVER

NIPPLE - hi-tension wires (At distributor)

5шт.

9

A20143

ELECTRICAL WIRE

WIRE - ignition, hi-tension (Cyl. #1 & #4) (15" long)

2шт.

10

A20144

ELECTRICAL WIRE

WIRE - ignition, hi-tension (Cyl. #2 & #3) (11" long)

2шт.

11

A29180

CABLE

WIRE - ignition, hi-tension, Serial Range: dist.-coil

1шт.

12

A23258

RING - tie, ignition wires

1шт.

13

G46803

BOOT

NIPPLE - coil wire

1шт.

14

G44840

SPARK PLUG

PLUG ASSY. - spark ignition (Gasoline)

4шт.

14

A20905

SPARK PLUG

PLUG ASSY. - spark ignition (LP-gas)

4шт.

15

G46839

GASKET

- spark plug seat

1шт.

20

A24772

HARNESS

WIRE - primary lead (Lo-tension)

1шт.

21

G44817

COIL

ASSY. - ignition (Auto-Lite #200576)

1шт.

22

75-510

HANDBOOK

SCREW - coil, 5/16" x 5/8" N.C., rd. hd.

2шт.

23

193-45

WASHER,Ext-Int Tooth, 5/16"

- 5/16" int./ext. Shakeproof

3шт.

24

A28015

WIRE -, Serial Range: resistor-coil

1шт.

25

A24504

RESISTOR

- elec. ballast (Auto-Lite #201020)

1шт.

26

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Resistor Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

28

A8743

WIRE - starter, Serial Range: solenoid-resistor

1шт.

32

A20873

STARTER ASSY. - (Delco-Remy #1107877) (Order A57092) (See page 432)

1шт.

32

A57092

X

STARTER ASSY. - (Delco-Remy #1108640) (See page 430)

1шт.

33

A27933

GASKET

- mtg. starter

1шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

34

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter

1шт.

35

92-8

LOCK WASHER,1/2"

3шт.

40

A34126

GENERATOR ASSY. - (Repairs, Page 434)

1шт.

41

A20386

STRAP - adjusting, generator

1шт.

42

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - adj. strap, 5/16" x 3/4" N.C., ident. hex. hd.

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

195-102

WASHER,1/4"

- flat, 5/16"

1шт.

45

A7391

STUD

- adjusting strap mtg., 3/8" N.F. x 1-1/8"

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F., hex.)

1шт.

48

A20818

CARRIER - generator

1шт.

49

25-1112

NUT,3/4"-16, G5

- (3/4" N.F., hex.)

1шт.

50

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

58

A21538

STRAP

- alternator adjusting

1шт.

59

A34704

BRACKET

- alternator mounting

1шт.

60

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mtg. bracket) Hex, 3/4"-10 x 2 3/4", G5

1шт.
