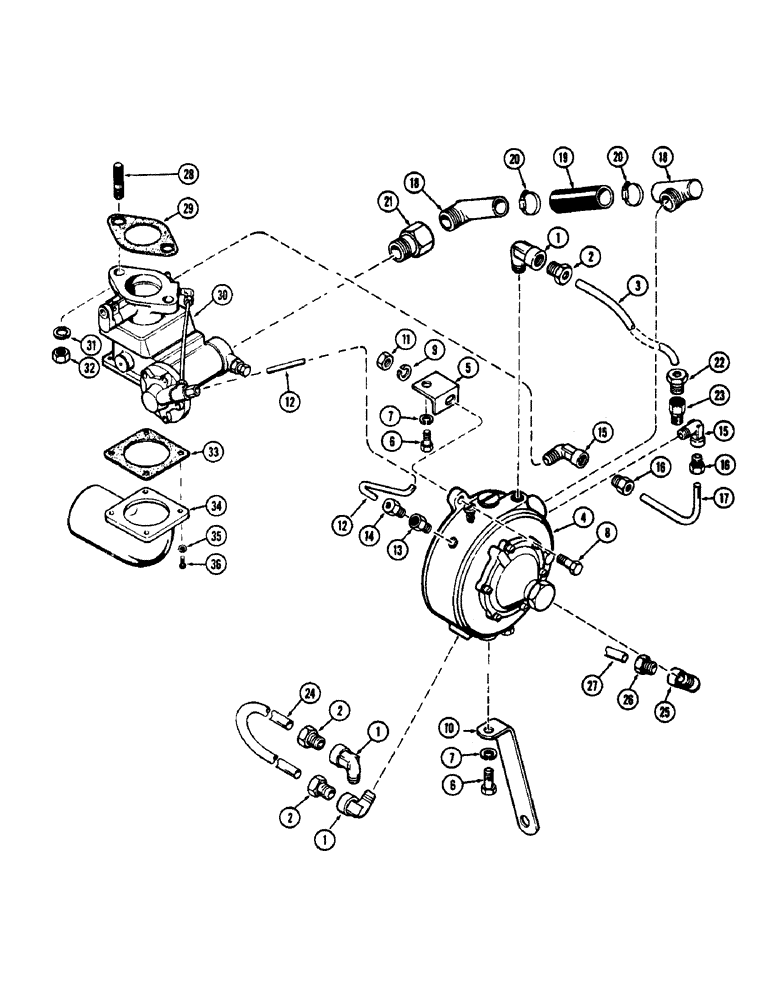

Запчасти Case IH 1060 (424) - FUEL SYSTEM, (284) L.P. GAS ENGINE (10) - ENGINE

1

222-442

ELBOW ASSY. - tube 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

3шт.

2

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2" tube

1шт.

3

A21239

TUBE - water, Serial Range: pump-regulator

1шт.

4

A21231

REGULATOR ASSY. - fuel (Repairs, page 446)

1шт.

5

A21232

BRACKET - supt., regulator upper

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

A21233

SUPPORT - regulator lower

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C., hex.)

1шт.

12

A21236

TUBE - regulator to carb. tee

1шт.

13

222-401

CONNECTOR, ELEC

CONNECTOR ASSY. - 3/16" tube x 1/8" male P.T.

1шт.

14

222-501

TUBE NUT,3/8"-24

NUT - connector, 3/16" tube

1шт.

15

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - 5/16" tube x 1/8" male P.T.

2шт.

16

222-503

TUBE NUT,1/2"-20

NUT - elbow, 5/16" tube

1шт.

17

A21237

TUBE - carburetor to reg. balance

1шт.

18

A9155

90 ELBOW

- vapor hose

2шт.

19

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Vapor 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

21

A21235

FITTING

ADAPTER -, Serial Range: elbow-carburetor

1шт.

22

222-412

CONNECTOR ASSY. - 1/2" tube x 3/8" male P.T.

1шт.

23

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2" tube

1шт.

24

A21238

TUBE - regulator to water outlet

1шт.

25

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - 3/8" tube x 1/4" male P.T.

1шт.

26

222-504

TUBE NUT,9/16"-20

NUT - elbow, 3/8" tube

1шт.

27

F11180

TUBE - regulator to filter tube

1шт.

28

A10029

STUD - mtg., carburetor (3/8" N.C./N.F. x 1-3/4")

2шт.

29

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

30

A21229

STIFFENER

CARBURETOR ASSY. - fuel (Repairs, page 442)

1шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F., hex.)

2шт.

33

A27539

GASKET

-, Serial Range: elbow-carburetor

1шт.

34

A21240

ELBOW - adapter, carburetor

1шт.

35

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

4шт.

36

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- (#12 x 5/8" N.C. rd. hd.)

4шт.
