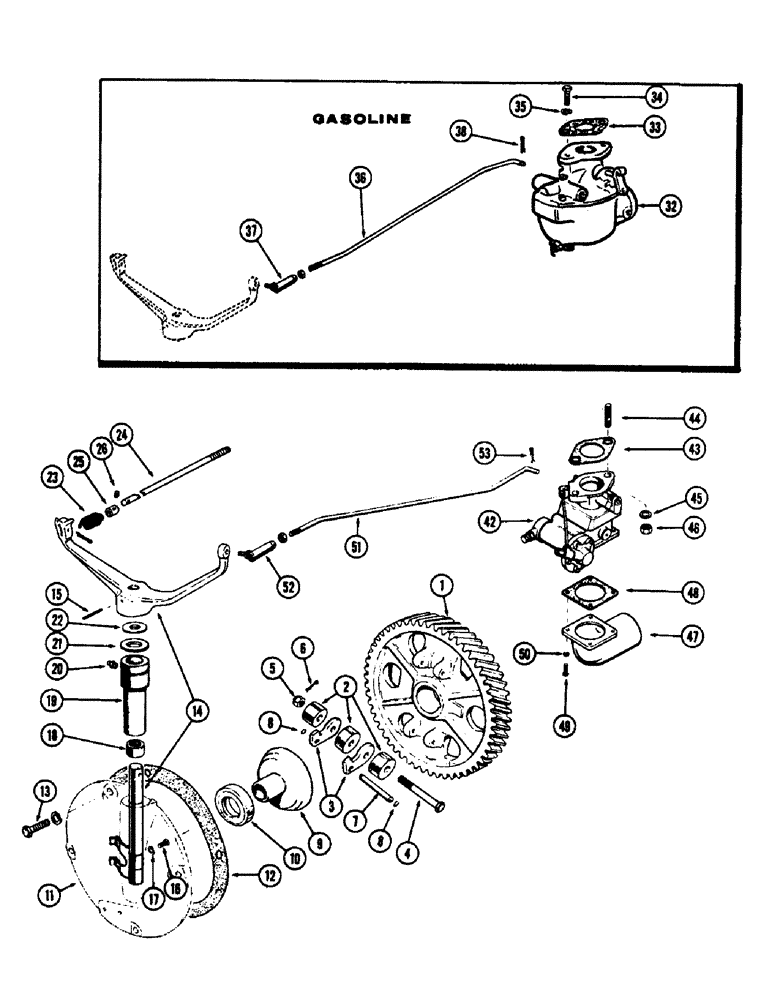

Запчасти Case IH 1060 (422) - GOVERNOR AND THROTTLE, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A26328

GEAR

- camshaft

1шт.

2

A7277

WEIGHT

- governor

6шт.

3

A33471

KIT

FINGER KIT - governor (Set of 4)

1шт.

4

A11693

BOLT - finger & weight pivot (5/16" x 2-1/4" N.F. spec.)

2шт.

5

25-235

SLOTTED NUT

NUT - (5/16" N.F., hex. sltd.)

2шт.

6

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

7

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

8

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

9

A7284

SLEEVE - governor bell

1шт.

10

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

11

A20833

CAP ASSY. - governor

1шт.

12

A27867

GASKET

- cap to timing cover

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

14

A20838

SHAFT

LEVER ASSY. - governor

1шт.

15

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, , Shaft retaining 3/16" x 1 5/8", Slotted

1шт.

16

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger ret., #10-32 x 5/8" rd. hd.

2шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, sleeve

2шт.

19

A20835

SLEEVE - bearing

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

21

A7292

SEAL

- oil (29/32" x 1-23/64" x 1/16" rubber)

1шт.

22

A7293

WASHER

- thrust, (37/64 x 1-1/8 x 1/16" copper)

1шт.

23

A20840

SPRING - governor

1шт.

24

A22185

ROD - throttle, front

1шт.

25

A20846

COLLAR

- stop, throttle rod

1шт.

26

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar, 1/4" x 1/4" N.C. sckt. hd.

1шт.

32

A20813

CARBURETOR

ASSY. - (Gasoline) (Repairs, page 444)

1шт.

33

A26434

GASKET

-, Serial Range: carb.-manifold

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

A24307

ROD

- gov. to carburetor (Gasoline) (Replaces A21775)

1шт.

37

A10326

BALL JOINT

JOINT ASSY. - ball, Serial Range: rod-lever

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

42

A21229

STIFFENER

CARBURETOR - (LP gas) (Repair, page 442)

1шт.

43

A26434

GASKET

- carburetor

1шт.

44

A10029

STUD - carb. to manifold (3/8" N.C./N.F. x 1-3/4")

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

47

A21240

ELBOW - carburetor air (LP gas)

1шт.

48

A27539

GASKET

- air elbow, carb. (LP gas)

1шт.

49

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- (#12 x 5/8" N.C. rd. hd.)

4шт.

50

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

4шт.

51

A21230

ROD

- gov. to carburetor (LP gas)

1шт.

52

A10326

BALL JOINT

JOINT ASSY. - ball, Serial Range: rod-lever

1шт.

53

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
