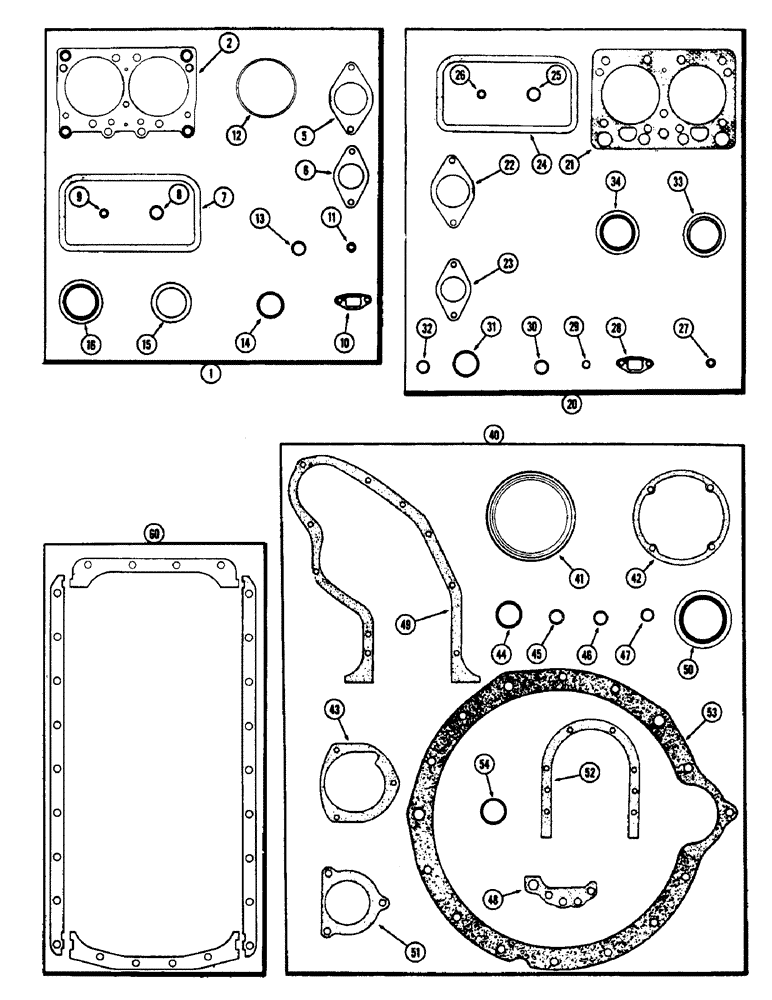

Запчасти Case IH 1060 (420) - ENGINE GASKET KITS, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A41579

KIT

GASKET KIT - valve grind (Replaces A40966) (See note)

1шт.

2

A57593

GASKET

KIT - cyl. head (Replaces A41385 & A57226)

1шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

7

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

8

A23684

GASKET

GASKET - cyl. head cover stud

4шт.

9

GASKET - breather tube (Not Used)

2шт.

10

A27905

GASKET

- water manifold

4шт.

11

A10726

SEAL

SHIELD - oil, intake valve stem (Rubber)

4шт.

12

A34686

RING

- fire, cylinder head gasket

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

14

A30954

GASKET

SEAL - thermostat

1шт.

15

A29943

GASKET

- intake manifold

2шт.

16

A11889

GASKET

- exhaust manifold

4шт.

20

A40345

X

GASKET KIT - valve grind (Used prior engine serial #2145201) (See note)

1шт.

21

A23117

GASKET

- cylinder head

2шт.

22

A28113

GASKET

- thermostat housing

1шт.

23

A26434

GASKET

- carb. to int. manifold

1шт.

24

A27972

CYLINDER HEAD GASKET

- cover, cylinder head

2шт.

25

A23684

GASKET

GASKET - cover stud

4шт.

26

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil tube, rocker shaft

2шт.

27

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

28

A27905

GASKET

- water manifold

4шт.

29

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage, cyl. head

2шт.

30

GASKET - breather tube (Not Used)

2шт.

31

A30954

GASKET

SEAL - thermostat

1шт.

32

A7669

RING

- water passage, cyl. hd. (Rubber)

4шт.

33

A29943

GASKET

- intake manifold

2шт.

34

A11889

GASKET

- exhaust manifold

4шт.

40

A40349

KIT

GASKET KIT - cylinder block (See note)

1шт.

41

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

42

A27867

GASKET

- cap, timing cover

1шт.

43

M1127885

STEM

- water pump

1шт.

44

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover, magneto opening

1шт.

45

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump

2шт.

46

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mtg.

1шт.

47

A7292

SEAL

- bearing, governor shaft

1шт.

48

A21084

GASKET

- base, oil filter

1шт.

49

A33018

GASKET

- cover, timing gear

1шт.

50

A23433

OIL SEAL

- oil, front crankshaft

1шт.

51

A27933

GASKET

- starter motor mtg.

1шт.

52

A32830

GASKET

- rear crank seal retainer

1шт.

53

GASKET - converter housing (Not Used)

1шт.

54

"O" RING - flywheel to crankshaft (Not Used)

1шт.

60

A7616

GASKET KIT

- oil (See note)

1шт.
