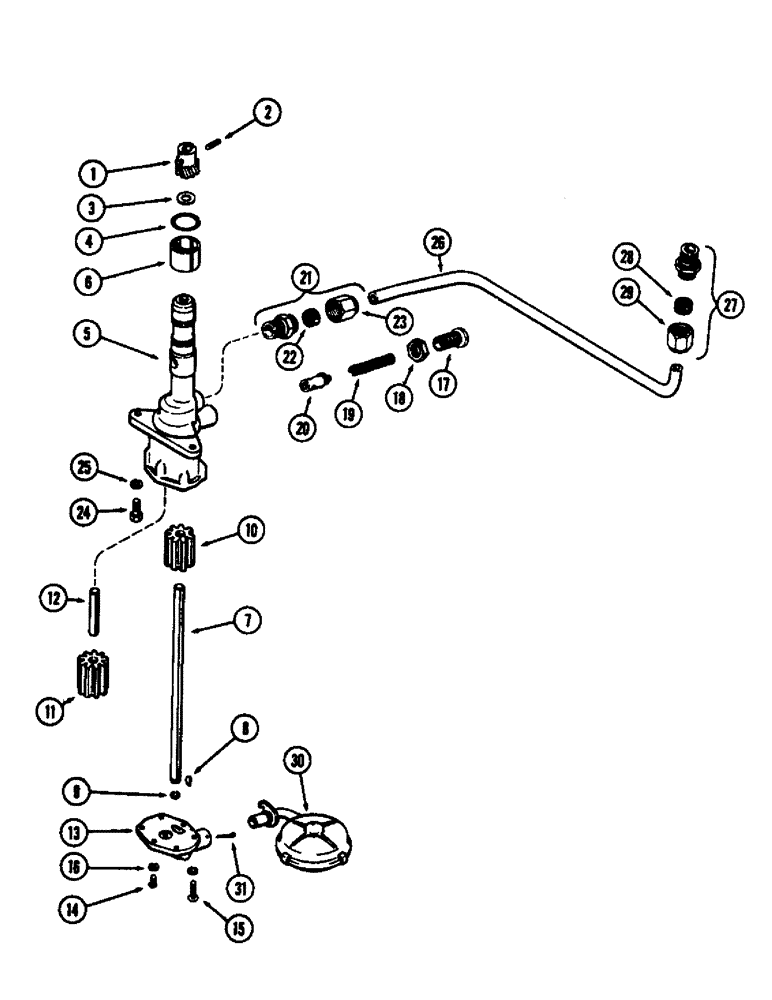

Запчасти Case IH 1060 (418) - OIL PUMP, (284) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2174225, CAMSHAFT DRIVEN (10) - ENGINE
№
Артикул
Название
Примечание
Количество
A33443
PUMP
ASSY. - oil, engine
1шт.
1
A26329
GEAR
- drive pump
1шт.
2
135-133
GROOVED PIN,3/16" x 1", Type A, Hardened
PIN, GROOVED, 3/16" x 1", Type A, Hardened
1шт.
3
A27857
WASHER
- thrust, drive gear
1шт.
4
A27355
O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro
"O" RING - pump body (1-3/16 x 1-7/16 x 1/8")
2шт.
5
A21094
BODY
ASSY. - oil pump
1шт.
6
A21079
SLEEVE
- pump body
1шт.
7
A21102
SHAFT
- drive, pump
1шт.
8
126-11
WOODRUFF KEY,#5, 1/8" x 5/8"
Shaft to gear #5, 1/8" x 5/8"
1шт.
9
A10916
RING, SNAP
RING - snap, drive shaft
1шт.
10
A27855
GEAR WHEEL
GEAR - driven, w/keyway
1шт.
11
A27856
GEAR WHEEL
GEAR - idler, w/o keyway
1шт.
12
A27854
SHAFT
- stub, pump gear
1шт.
13
A33442
COVER - pump body
1шт.
14
75-412
SCREW,Rd, 1/4" x 3/4"
- cover (1/4 x 3/4" N.C. rd. hd.)
5шт.
15
75-424
SCREW
- cover (1/4 x 1-1/2" N.F., rd. hd.)
1шт.
16
80682
LOCK WASHER,1/4"
Washer, Lock, 1/4"
6шт.
17
A8902
ADJUSTMENT SCREW,7/8" x 1 5/8"
SCREW - adjusting, oil relief
1шт.
18
A27858
NUT
- adjusting screw
1шт.
19
A23598
VALVE SPRING
SPRING - relief plunger
1шт.
20
A22566
PLUNGER
- oil relief
1шт.
21
222-31
HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut
CONNECTOR ASSY. - tube, 5/8" x 1/2" P.T.
1шт.
22
222-106
SLEEVE,5/8" Tube
- connector, 5/8" Tube
1шт.
23
222-116
TUBE NUT,1"-18
NUT - connector, 5/8" tube
1шт.
24
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Pump assy Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
A21098
TUBE
- oil, Serial Range: pump-filter
1шт.
27
222-31
HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut
CONNECTOR ASSY. - tube, 5/8" tube x 1/2" P.T.
1шт.
28
222-106
SLEEVE,5/8" Tube
- connector, 5/8" Tube
1шт.
29
222-116
TUBE NUT,1"-18
NUT - connector, 5/8" tube
1шт.
30
A28110
SCREEN ASSY. - oil pump
1шт.
31
132-32
COTTER PIN,3/32" x 1 1/2"
Pin, Split (Cotter), 3/32" x 1 1/2"
1шт.
Выбрано товаров: 32
