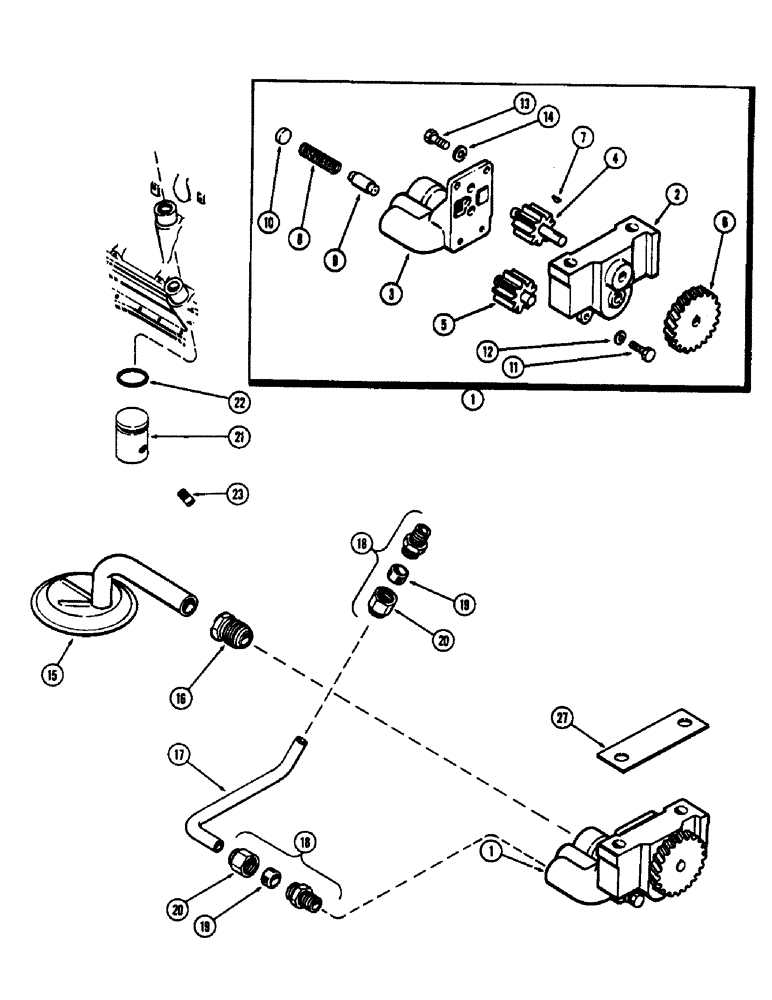

Запчасти Case IH 1060 (416) - OIL PUMP, (284) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2174225, FRONT MOUNTED (10) - ENGINE

1

A34940

PUMP ASSY. - engine oil

1шт.

2

A34941

X

BODY - oil pump

1шт.

3

A34991

COVER

- pump body

1шт.

4

A34942

GEAR ASSY. - pump, w/shaft & key (Lead gear)

1шт.

5

A34945

GEAR ASSY. - pump, w/shaft (Follow gear)

1шт.

6

A34947

GEAR - pump drive (External)

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

8

A34993

RING

SPRING - relief valve

1шт.

9

A34992

PISTON

VALVE - relief, pump

1шт.

10

A34951

X

PLUG - relief (45/64" cup type)

1шт.

11

A34950

STEP BOLT

BOLT - shoulder (5/16" N.C. x 1")

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- cover, 5/16 x 1-1/4" N.C. hex.

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A34953

SCREEN

ASSY. - oil suction, w/tube

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

17

A57388

TUBE

-, Serial Range: pump-filter

1шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - pump tube, 5/8" tube x 1/2" P.T.

2шт.

19

222-106

SLEEVE,5/8" Tube

- connector (5/8" O.D. tube)

1шт.

20

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" O.D. tube x 1/2" P.T.

1шт.

21

A34964

PLUG

- oil gallery

1шт.

22

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil gallery plug

1шт.

23

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, gallery plug retaining

1шт.

27

A57454

SHIM,.005" Thk

Pump to frt. brg. cap (Replaces A34949) .005" Thk

1шт.

27

A57455

SHIM,.010" Thk

Pump to frt. brg. cap (Replaces A34948) .010" Thk

1шт.

27

A57456

SHIM,.025" Thk

Pump to frt. brg. cap .025" Thk

1шт.
