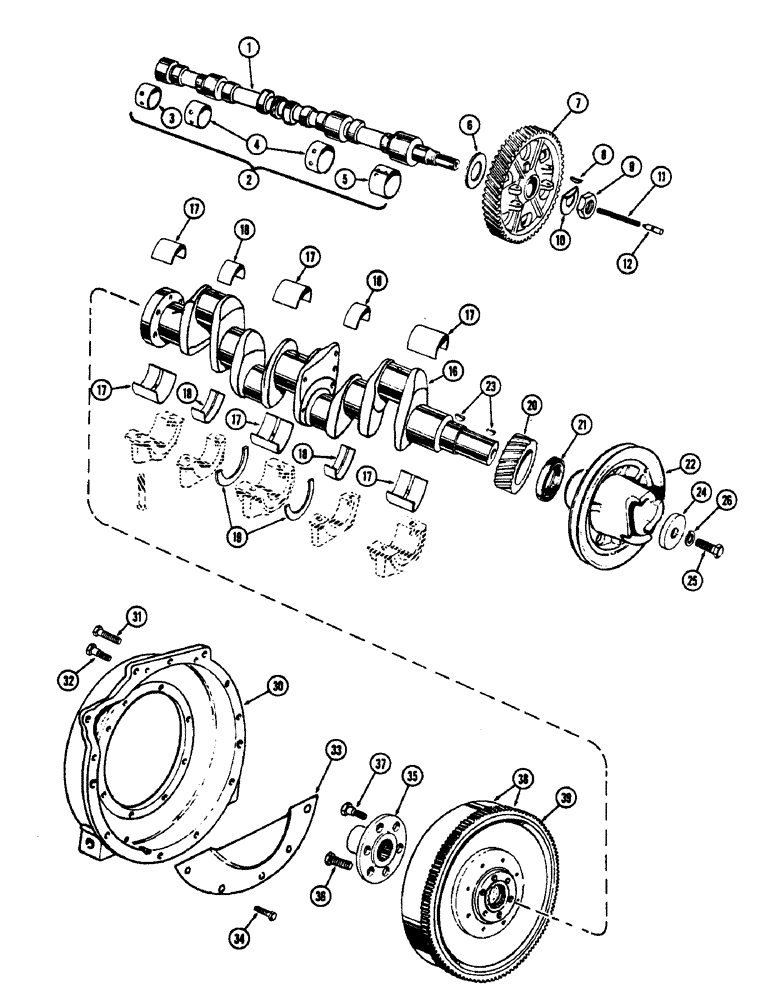

Запчасти Case IH 1060 (412) - CAMSHAFT, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A23501

CAMSHAFT

- engine

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (Order A23577) (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (Order A23577) (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (Order A23577) (1-21/32" wide)

1шт.

6

A27835

WASHER

- thrust, camshaft

1шт.

7

A26328

GEAR

- camshaft

1шт.

8

216-28

KEY - camshaft gear (#18 Woodruff)

1шт.

9

A26445

NUT

- camshaft gear retaining

1шт.

10

A26444

LOCK WASHER

LOCK - nut, cam gear (Tab washer)

1шт.

11

P0027853A

LARGE PIN

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust, camshaft bumper

1шт.

16

A22578

CRANKSHAFT - engine

1шт.

17

A28687

LINING

INSERT KIT - main brg. (Set of 2) (Wide) (Std. size), crankshaft

3шт.

17

A7182

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (-.002"), crankshaft

3шт.

17

A7188

BEARING LINER

INSERT KIT - main brg. (Set of 2) (Wide) (-.010"), crankshaft

3шт.

17

A7194

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (-.020"), crankshaft

3шт.

17

A7200

KIT

INSERT KIT - main brg. (Set of 2) (Wide) (.-030"), crankshaft

3шт.

18

A20394

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (Std. size), crankshaft

2шт.

18

A20579

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (-.002"), crankshaft

2шт.

18

A20582

LINING

INSERT KIT - main brg. (Set of 2) (Narrow) (-.010"), crankshaft

2шт.

18

A20585

KIT

INSERT KIT - main brg. (Set of 2) (Narrow) (-.020"), crankshaft

2шт.

18

A20588

KIT

INSERT KIT - main brg. (Set of 2) (Narrow) (-.030"), crankshaft

2шт.

19

A27835

WASHER

- thrust, crankshaft (Std. size)

2шт.

19

A7204

WASHER

- thrust, crankshaft (+.006")

2шт.

20

A27837

GEAR

- crankshaft front

1шт.

21

A23433

OIL SEAL

- oil, crankshaft front (2-5/8 x 3-5/8 x 1/2")

1шт.

22

F1215

PULLEY - fan and generator drive, crankshaft

1шт.

23

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

24

A27903

WASHER

- fan drive pulley, crankshaft

1шт.

25

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley ret. (5/8 x 1-1/2" N.C. hex.), Crankshaft

1шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

30

A8670

HOUSING - flywheel

1шт.

31

A20108

BOLT - housing to cyl. block (3/4 x 2-3/4" N.C. hex.), flywheel

2шт.

32

A32607

STEP BOLT

- long, hsg. to cyl. block, flywheel

1шт.

32

A32608

STEP BOLT

BOLT - short, hsg. to cyl. block, flywheel

1шт.

33

A7081

BEARING

SHIELD - dust, flywheel, housing

1шт.

34

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- shield (1/2 x 1-1/4" N.F., hex.), flywheel and housing

4шт.

35

F3088

HUB - engine output, flywheel and housing

1шт.

36

F7663

BOLT - flywheel (5/8 x 2-9/32" N.C., sltd. hd.), housing

4шт.

37

F7662

BOLT - dowel, flywheel to c'shft., housing

2шт.

38

A20876

FLYWHEEL ASSY. - engine, housing

1шт.

39

A20875

GEAR, RING

GEAR - ring, flywheel, housing

1шт.
