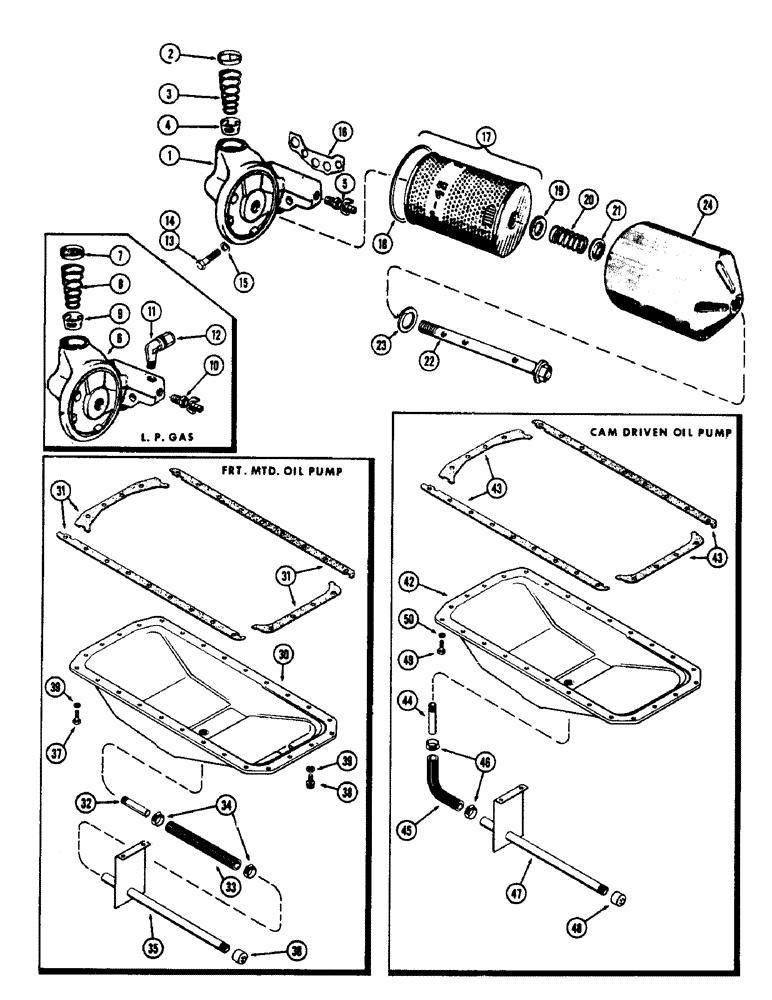

Запчасти Case IH 1060 (410) - OIL FILTER, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A23469

BASE

ASSY. - oil filter (Gasoline)

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, oil

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- oil relief

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A23471

BASE ASSY. - oil filter (LP-gas)

1шт.

7

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

8

A21091

VALVE SPRING

SPRING - relief valve

1шт.

9

A21090

VALVE

- relief, oil

1шт.

10

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

11

222-442

ELBOW ASSY. - tube, 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

1шт.

12

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2" tube

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Body Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- body (1/2 x 1-3/4" N.C., hex.)

1шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

A21084

GASKET

- mtg., filter base

1шт.

17

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

18

A21473

GASKET

- mtg. filter shell

1шт.

19

A21474

GASKET

- bolt, inner

1шт.

20

A21478

SPRING

- tension, element

1шт.

21

A21477

RETAINER

SEAT - tension spring

1шт.

22

A21476

BOLT

- filter shell & element

1шт.

23

A21479

GASKET

- bolt, outer

1шт.

24

A21471

SHELL

- element housing filter

1шт.

30

A34983

PAN - oil, for front mounted pump

1шт.

31

A7616

GASKET KIT

- oil pan, for front mounted pump

1шт.

32

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - (1/2" P.T. x 3-1/2"), oil pan for front mounted pump

1шт.

33

F9984

HOSE - drain, oil pan, for front mounted pump

1шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 3-3/4"), oil pan for front mounted pump

2шт.

35

F79826

PIPE AND SUPPORT - oil drain, pan for front mounted pump

1шт.

36

221-525

CAP,1/2" NPT

- pipe, 1/2" P.T., oil pan for front mounted pump

1шт.

37

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan, for front mounted pump Hex, 3/8"-16 x 7/8", G5, Full Thd

24шт.

38

A34929

BOLT (SPREADER)

BOLT - pan to timing gear cover, oil for front mounted pump

2шт.

39

92-6

LOCK WASHER,3/8"

oil pan for front mounted pump 3/8"

26шт.

42

A23023

PAN - oil, engine (Can use A34983), for cam driven pump

1шт.

43

A7616

GASKET KIT

- oil pan, for cam driven pump

1шт.

44

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - (1/2" P.T. x 3-1/2"), for cam driven oil pump

1шт.

45

F9984

HOSE - drain, oil pan, for cam driven pump

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 3-3/4"), for cam driven oil pump

2шт.

47

F79826

PIPE & SUPPORT - oil drain, for cam driven pump

1шт.

48

221-525

CAP,1/2" NPT

- pipe, 1/2" P.T., for cam driven oil pump

1шт.

49

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan, for cam driven pump Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

50

92-6

LOCK WASHER,3/8"

for cam driven oil pump 3/8"

26шт.
