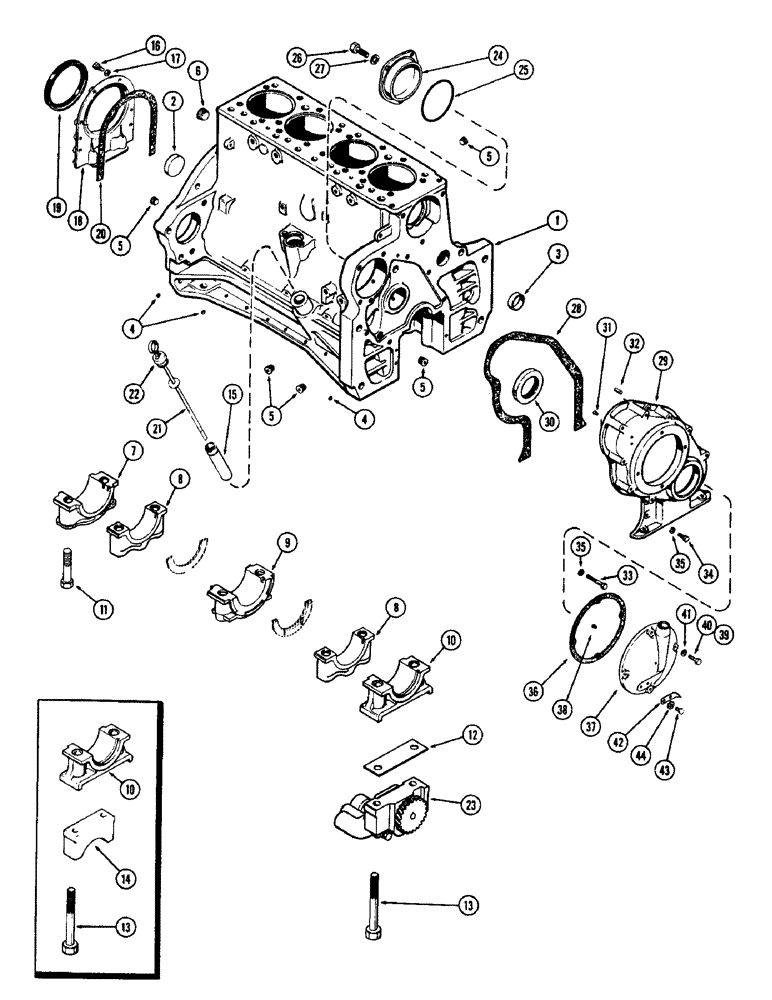

Запчасти Case IH 1060 (406) - CYLINDER BLOCK ASSEMBLY, (284) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2174225 (10) - ENGINE

A41216

BLOCK ASSY. - cylinder, short (Incl. stripped block, piston assy., connecting rods & brgs, crankshaft & brgs., camshaft & bushings & gear, lifters, oil level socket, sleeves, crank rear seal and retainer) (Casting #A34932 or A34934)

1шт.

1

A41217

SKELETON ENGINE

BLOCK ASSY. - cylinder, stripped (Casting #A34932 or A34934)

1шт.

2

A24361

PLUG

- camshaft rear bore

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front water gallery

1шт.

4

221-41

PLUG

- pipe, 1/8" P.T. slotted headless

3шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- pipe 3/8" P.T. hex. socket hd.

5шт.

6

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" P.T. square socket hd.

1шт.

7

A24941

CAP

- crankshaft bearing (Wide)

1шт.

8

A24942

CYLINDER END CAP

CAP - crankshaft bearing (Narrow)

2шт.

9

A24943

CAP

- crankshaft bearing (Thrust)

1шт.

10

A34937

HOLDER

CAP - crankshaft front bearing

1шт.

11

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

SCREW - cap, crank bearing cap

8шт.

12

A57454

SHIM,.005" Thk

Oil pump (Replaces A34948) .005" Thk

1шт.

12

A54455

SHIM,.010" Thk

Oil pump (Replaces A34949) .010" Thk

1шт.

12

A57456

SHIM,.025" Thk

Oil pump .025" Thk

1шт.

13

113-637

BOLT

- pump & brg. cap. 5/8 x 6" N.C. hex. hd.

2шт.

14

A57076

SPACER - frt. brg. cap (Used w/camshaft driven oil pump, and discarded with front mounted oil pump)

1шт.

15

A34540

TUBE

SOCKET - oil filler & gauge

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Seal retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

17

92-6

LOCK WASHER,3/8"

6шт.

18

A57457

RETAINER

- seal, crankshaft rear (Replaces A32182)

1шт.

19

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

20

A32830

GASKET

- rear seal retainer

1шт.

21

A34541

DIPSTICK

GAUGE ASSY. - oil level (Dipstick)

1шт.

22

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge seal

2шт.

23

A34940

PUMP ASSY. - engine oil (Repairs, P. 417)

1шт.

24

A7625

COVER - magneto opening

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - opening cover

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Opening cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

A33018

GASKET

- timing gear cover

1шт.

29

A57416

COVER ASSY. - timing gears

1шт.

30

A23433

OIL SEAL

- oil, crankshaft front

1шт.

31

A27869

BUTTON - thrust, timing cover

2шт.

32

A27840

PIN

- dowel, timing cover locating

2шт.

33

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- timing cover, 3/8 x 2-1/2" N.C. hex. hd.

8шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

10шт.

36

A27867

GASKET

- governor cap

1шт.

37

A20833

CAP ASSY. - governor

1шт.

38

A27869

BUTTON - thrust, governor cap

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cap to cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

A28218

POINTER - timing

1шт.

43

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Timing pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

44

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

2шт.
