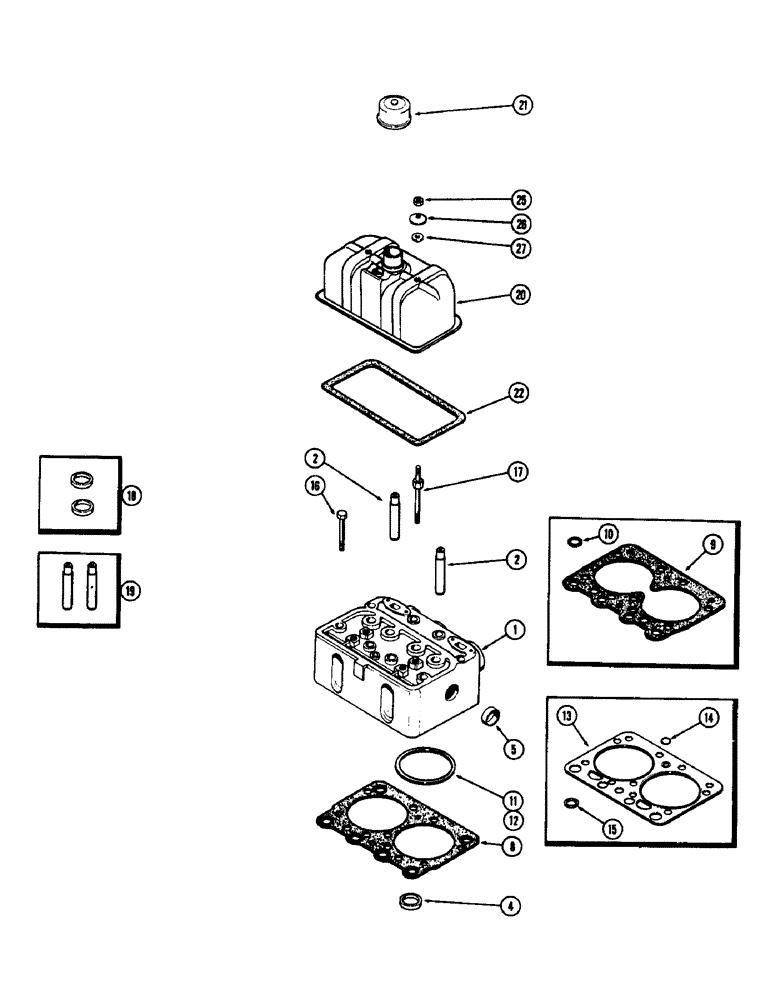

Запчасти Case IH 1060 (402) - CYLINDER HEAD ASSEMBLY, (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A20809

CYLINDER HEAD

HEAD ASSY. - cylinder (Gasoline, engine)

2шт.

1

A21243

HEAD

ASSY. - cylinder (LP gas, engine)

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve, int. & exh. (Order ref. 19)

4шт.

4

NSS

NOT SOLD SEPARAT

INSERT - valve seat, exh. (Order ref. 18)

2шт.

5

A34124

PLUG,Cup, 1 5/8", Stainless

- cup, cyl. head

2шт.

8

A57593

GASKET

- cyl. head, w/grommets (Replaces A41385 & A57226)

2шт.

9

NS

NOT SERVICED

GASKET - cylinder head (Order A57593)

2шт.

10

NS

NOT SERVICED

RING - cylinder head gasket (13/16 x 1-1/16 x .008" fiber) (Used w/item 9 only) (Order A57593)

8шт.

11

A34686

RING

- fire, cyl. head gasket (Standard)

4шт.

12

A34688

RING

- fire, cyl. head gasket (Oversize) (Blue coded)

4шт.

13

A23117

GASKET

- cylinder head (Order 1-A57593 & 2-A34686) (Used prior to eng. ser. no. 2145201)

2шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32") (Used with ref. 13 only)

2шт.

15

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber) (Use with ref. 13 only)

4шт.

16

A23355

BOLT

- cylinder head (9/16 x 6" N.C. hex.)

18шт.

17

A58458

STUD - brkt. & cyl. hd. cover (3-3/4" N.C. end to nut) (Does not require lock washer)

4шт.

17

A28124

STUD - cyl. hd. cover & brkt. (3-13/16" N.C. end to nut) (Requires lock washer)

4шт.

18

A33454

INSERT

KIT - exh. valve seat (Set of 2)

2шт.

19

A21673

GUIDE

KIT - int. & exh. valve (Set of 2)

4шт.

20

A20345

COVER - cylinder head

2шт.

21

A27973

CAP

BREATHER - cyl. head cover

2шт.

22

A27972

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

25

25-117

NUT,7/16"-20, G5

- (7/8" N.F., hex.)

4шт.

26

A23683

WASHER

- bevel, cover stud

4шт.

27

A23684

GASKET

GASKET - head cover stud

4шт.
