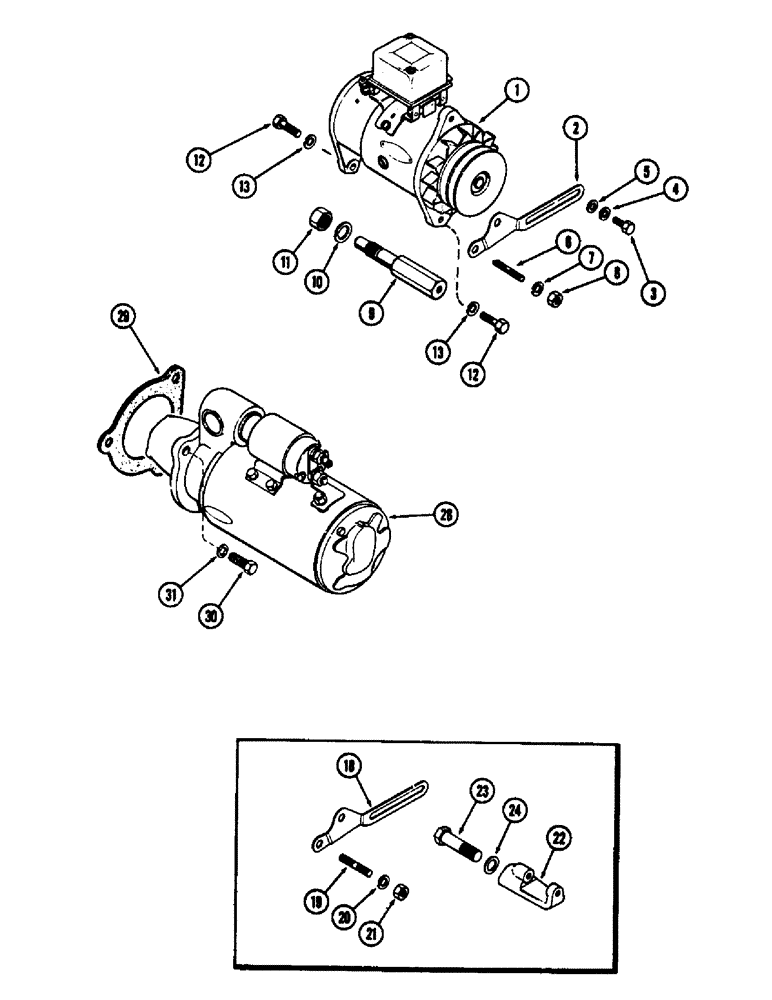

Запчасти Case IH 1060 (400) - ELECTRICAL, GENERATOR, (301) DIESEL ENGINE (10) - ENGINE

1

A34126

GENERATOR ASSY. - (Repairs, page 434)

1шт.

2

A20386

STRAP - adjusting, generator

1шт.

3

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - adj, strap (5/16 x 3/4" N.C., spec. hd.)

1шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

6

A7391

STUD

- adjusting strap (3/8" N.C./N.F. x 1-1/8")

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

9

A20818

CARRIER - generator

11шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

11

25-1112

NUT,3/4"-16, G5

- carrier (3/4" N.F., hex.)

1шт.

12

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- gen. to carrier (5/16 x 1" N.F., hex.)

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

18

A21538

STRAP

- alternator adjusting, alternator

1шт.

19

A7391

STUD

- adj. strap (3/8" N.C./N.F. x 1-1/8"), alternator

1шт.

20

92-6

LOCK WASHER,3/8"

alternator 3/8"

1шт.

21

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex., alternator

1шт.

22

A34704

BRACKET

- alternator mounting, alternator

1шт.

23

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mtg. bracket), Alternator Hex, 3/4"-10 x 2 3/4", G5

1шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Alternator 3/4"

1шт.

28

A21281

STARTING MOTOR

STARTER ASSY. - (Repairs, page 428) (12 volt), starting motor

1шт.

29

A27933

GASKET

- mtg., starter, starting motor

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter, starting motor Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

30

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter, starting motor

1шт.

31

92-8

LOCK WASHER,1/2"

starting motor 1/2"

3шт.
