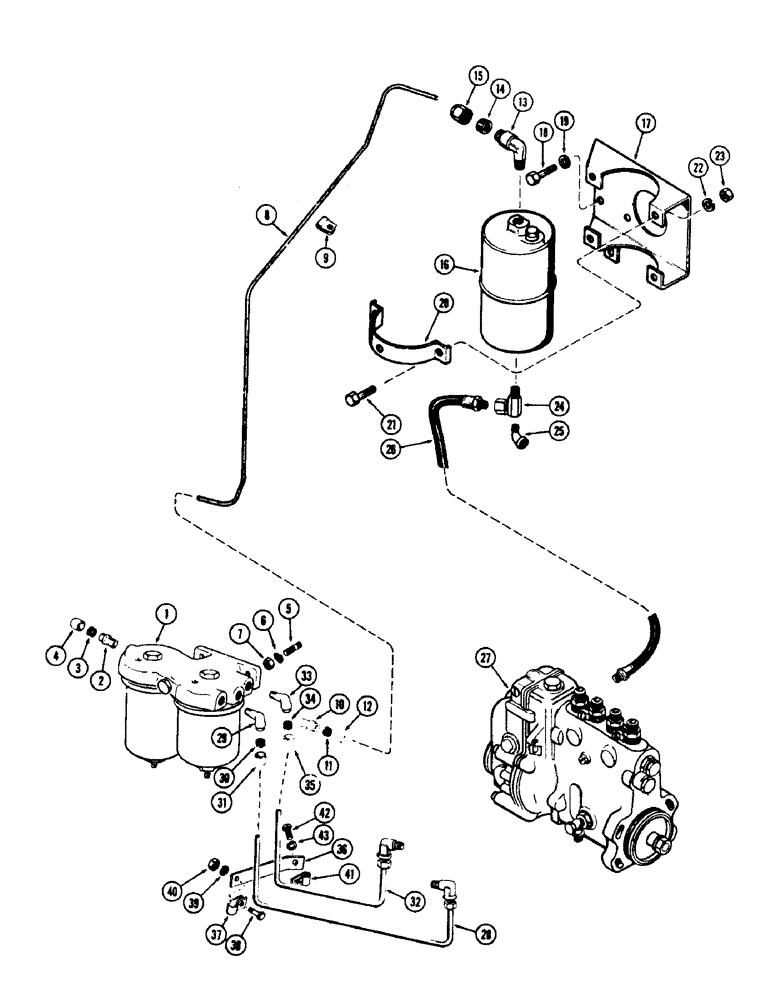

Запчасти Case IH 1060 (396) - FUEL INJECTION FILTER SYSTEM, (301) DIESEL ENGINE (10) - ENGINE

1

A40435

FILTER

ASSY. - fuel primary (Repairs, page 398)

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - fuel line (1/4" P.T.)

1шт.

3

222-104

SLEEVE,3/8" Tube

- connector

1шт.

4

222-114

NUT,5/8"-24

NUT - connector

1шт.

5

A26554

STUD - filter base to block (3/8" N.C./N.F. x 1-9/16")

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

8

A22253

TUBE

- primary filter to final filter

1шт.

9

A7922

CLIP

- final filter tube

1шт.

10

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - fuel line (At prim. filter)

1шт.

11

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT - connector

1шт.

13

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (At final filter)

1шт.

14

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

15

222-113

TUBE NUT,9/16"-24

NUT - elbow

1шт.

16

A57228

FILTER

ASSY. - fuel, final stage

1шт.

17

A33617

BRACKET - final filter

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

A21144

CLAMP

- final filter

12шт.

21

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

4шт.

24

A20539

FITTING

UNION - adapter (90 degrees swivel)

1шт.

25

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - fuel pressure tube

1шт.

26

A21070

HOSE,9.53mm ID x 203.2mm L

- Final filter to fuel pump 0.38" ID x 8.00"

1шт.

27

A20448

PUMP ASSY. - fuel injector (Repairs, page 398)

1шт.

28

A20651

TUBE

- fuel pump to 2nd filter

1шт.

29

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - (For 3/8" tube)

2шт.

30

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

31

222-114

NUT,5/8"-24

NUT - elbow

1шт.

32

A20650

TUBE

- fuel pump to 1st filter

1шт.

33

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - (For 5/16" tube)

2шт.

34

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

35

222-113

TUBE NUT,9/16"-24

NUT - elbow

1шт.

36

A20656

BRACKET - primary filter tube clips

1шт.

37

A27814

X

CLIP - tube retainer (Used w/A20651 tube)

1шт.

38

75-412

SCREW,Rd, 1/4" x 3/4"

- clip (1/4 x 3/4" N.C. rd. hd.)

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

25-104

NUT,1/4"-20, G5

1шт.

41

A20688

CLIP

- tube retainer (Used w/A20650 tube)

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clip Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.
