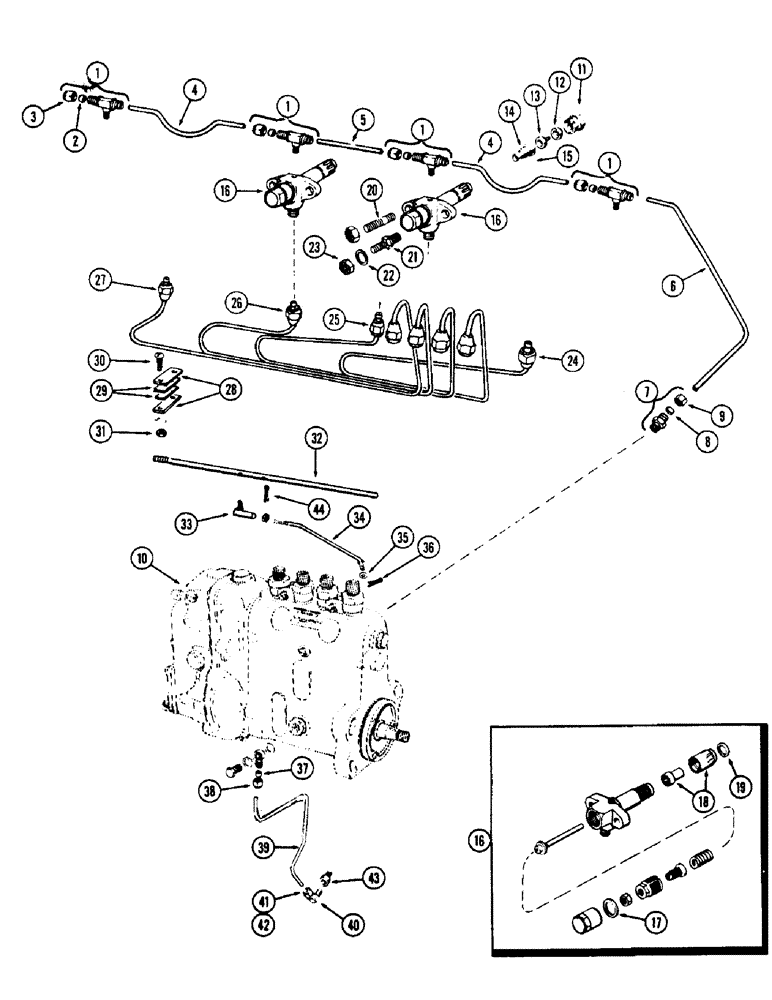

Запчасти Case IH 1060 (394) - FUEL INJECTION SYSTEM, (301) DIESEL ENGINE (10) - ENGINE

1

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off lines

4шт.

2

222-102

SLEEVE,1/4" Tube

Tee 1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - tee

2шт.

4

A27981

TUBE

- leak-off, outer

2шт.

5

A20162

TUBE

- leak-off, inner

1шт.

6

A22186

TUBE

- leak-off, #1, Serial Range: nozzle-pump

1шт.

7

A28098

VALVE

ASSY. - leak-off line

1шт.

8

222-102

SLEEVE,1/4" Tube

Valve 1/4" Tube

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - valve

1шт.

10

A20448

PUMP ASSY. - fuel injection (Repairs, page 398)

1шт.

11

A11813

PLUG

SCREW - retainer, powrcel

4шт.

12

A11812

CLAMP

- powrcel

4шт.

13

A22975

CAP

- powrcel

4шт.

14

A22978

BODY

- powrcel

4шт.

15

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel (1/8 x 17/64")

4шт.

16

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle

4шт.

17

A31062

GASKET

- injector cap

1шт.

18

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector (Atomizer)

1шт.

19

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

20

A27929

STUD

- nozzle holder

4шт.

21

A10678

STUD

- nozzle holder

4шт.

22

A10679

GASKET

- nozzle holder stud

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F., hex.)

8шт.

24

A20501

TUBE

ASSY. - injector, cyl. #1

1шт.

25

A20502

TUBE

ASSY. - injector, cyl. #2

1шт.

26

A20503

TUBE

ASSY. - injector, cyl. #3

1шт.

27

A20504

TUBE

ASSY. - injector, cyl. #4

1шт.

28

A28046

CLAMP

- injector lines (4 tubes)

2шт.

29

A28047

CUSHION

- injector lines

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10 x 1" N.C., rd. hd.)

2шт.

31

129-7

NUT,Hex, #10 - 24

- (#10 N.C., hex.)

2шт.

32

A34101

ROD

- throttle front

1шт.

33

A10326

BALL JOINT

JOINT ASSY. - ball, throttle link

1шт.

34

A33953

ROD

LINK - throttle rod

1шт.

35

195-15

WASHER,#12

- (1/4" small flat)

1шт.

36

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

37

222-102

SLEEVE,1/4" Tube

Oil gallery tube 1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - oil gallery tube

1шт.

39

A21786

TUBE - fuel pump to oil gallery

1шт.

40

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube

1шт.

41

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - elbow

1шт.

43

221-1052

PLUG

BUSHING - reducer

1шт.

44

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
