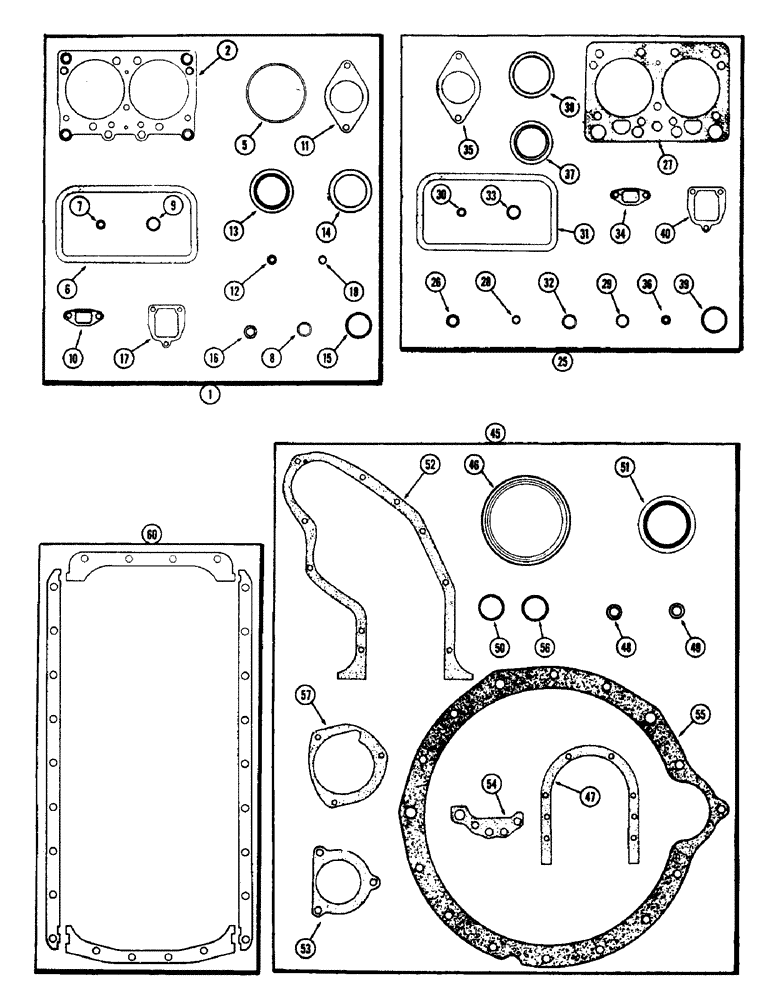

Запчасти Case IH 1060 (392) - ENGINE GASKET KITS, (301) DIESEL ENGINE (10) - ENGINE

1

A41576

GASKET

KIT - valve grind (Replaces A40927) (See note)

1шт.

2

A57593

GASKET

- cyl. head (Replaces A41385 & A57226)

2шт.

5

A34686

RING

- fire, cyl. hd. gasket (Std.)

4шт.

6

A27927

OIL PAN GASKET SET

- cyl. head cover

2шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

8

A23684

GASKET

GASKET - cyl. head cover stud

4шт.

9

GASKET - breather tube to cover (Not Used)

2шт.

10

A27905

GASKET

- water manifold

4шт.

11

A28113

GASKET

- thermostat housing

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

13

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

14

A21054

MANIFOLD GASKET

- intake manifold

2шт.

15

A30954

GASKET

SEAL - thermostat

1шт.

16

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - fuel injection nozzle

4шт.

17

GASKET - decompressor opening (Not Used)

2шт.

18

GASKET - breather tube bolt (Not Used)

2шт.

25

A40338

X

GASKET KIT - valve grind (Used prior to engine serial #2145201)

1шт.

26

A10679

GASKET

- nozzle holder stud

4шт.

27

A23117

GASKET

- cylinder head

2шт.

28

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

29

A7669

RING

- cyl. head water passage

4шт.

30

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

31

A27972

CYLINDER HEAD GASKET

- cover, cyl. head

2шт.

32

A23684

GASKET

GASKET - cyl. hd. cover stud

4шт.

33

GASKET - breather tube (Not Used)

2шт.

34

A27905

GASKET

- water manifold

4шт.

35

A28113

GASKET

- thermostat housing

1шт.

36

A10726

SEAL

SHIELD - intake valve stem

4шт.

37

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

38

A21054

MANIFOLD GASKET

- intake manifold

2шт.

39

A30954

GASKET

SEAL - thermostat

1шт.

40

GASKET - decompressor opening (Not Used)

2шт.

45

A40348

KIT

GASKET KIT - engine block, (See note)

1шт.

46

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

47

A32830

GASKET

- rear c'shft. sea. retainer

1шт.

48

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

49

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

50

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing

1шт.

51

A23433

OIL SEAL

- oil, crankshaft front

1шт.

52

A33018

GASKET

- timing gear cover

1шт.

53

A27933

GASKET

- starting motor

1шт.

54

A21084

GASKET

- oil filter base

1шт.

55

GASKET - cyl. block to converter housing (Not Used)

1шт.

56

"O" RING - flywheel to crankshaft (Not Used)

1шт.

57

M1127885

STEM

- water pump mounting

1шт.

60

A7616

GASKET KIT

- oil pan (See Note)

1шт.
