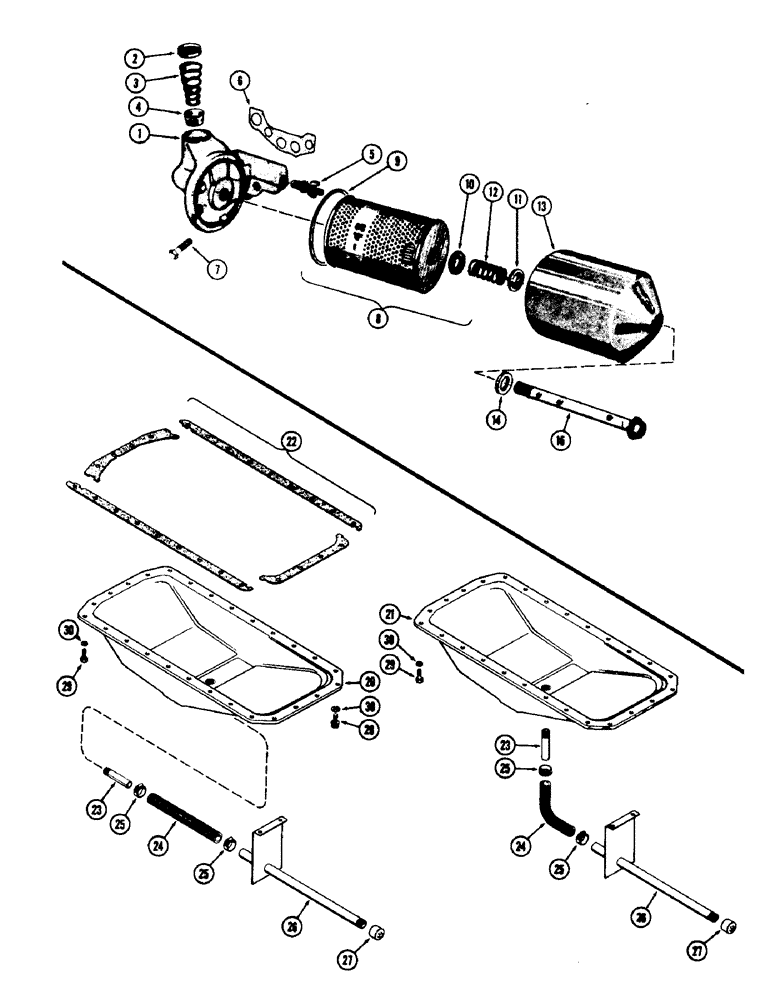

Запчасти Case IH 1060 (390) - OIL FILTER, (301) DIESEL ENGINE (10) - ENGINE

1

A23469

BASE

ASSY. - oil filter

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- relief, filter

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A21084

GASKET

- filter base

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base (1/2 x 1-3/4" N.C., hex.)

1шт.

8

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

9

A21473

GASKET

- filter shell

1шт.

10

A21474

GASKET

- bolt, inner

1шт.

11

A21477

RETAINER

- spring

1шт.

12

A21478

SPRING

- retainer, element

1шт.

13

A21471

SHELL

- oil filter

1шт.

14

A21479

GASKET

- bolt, outer

1шт.

15

A21476

BOLT

- retainer, shell & element

1шт.

20

A34983

PAN - oil, engine (w/side drain)

1шт.

21

A23023

PAN - oil, engine (w/bottom drain) (Order A34983)

1шт.

22

A7616

GASKET KIT

- oil pan

1шт.

23

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - pipe, (1/2" P.T. x 3-1/2"), oil pan

1шт.

24

F9984

HOSE - drain, oil, pan

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4"), oil pan

2шт.

26

F79826

PIPE & SUPPORT - oil drain, pan

1шт.

27

221-525

CAP,1/2" NPT

- pipe (1/2" P.T.), oil pan

1шт.

28

A34929

BOLT (SPREADER)

BOLT - pan to timing cover center, oil

2шт.

29

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Pan to block, oil Hex, 3/8"-16 x 7/8", G5, Full Thd

24шт.

30

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.
