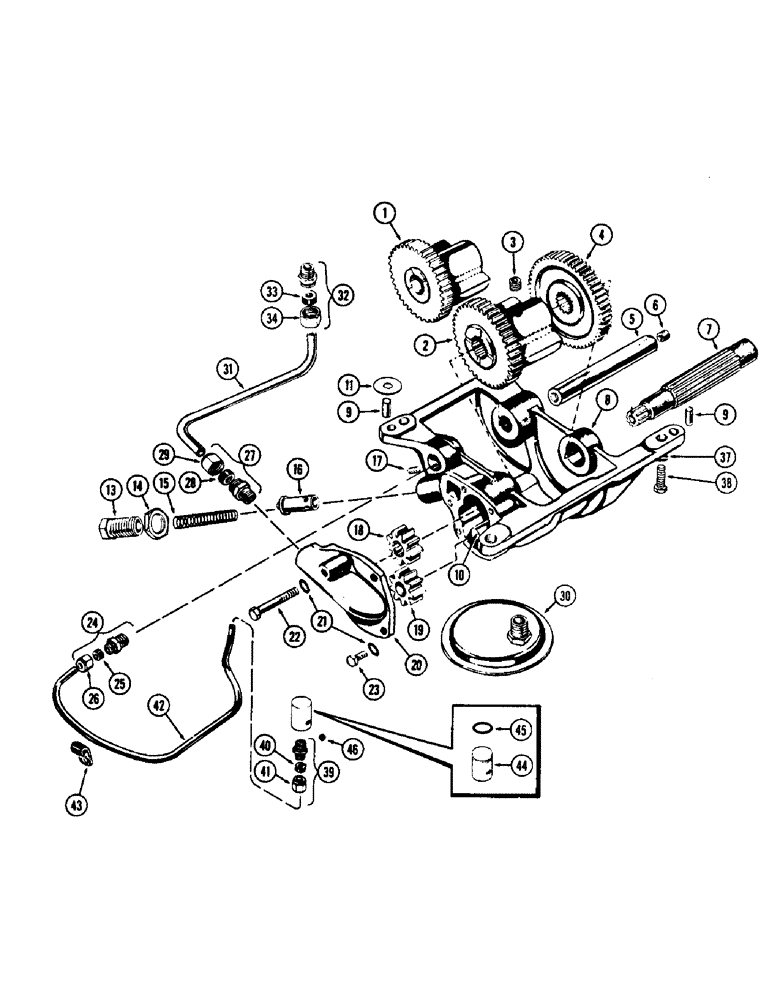

Запчасти Case IH 1060 (388) - BALANCER AND OIL PUMP, (301) DIESEL ENGINE (10) - ENGINE

A22540

BALANCER

& PUMP ASSY. - engine

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT ASSY. - driven

1шт.

2

A22561

COUNTERWEIGHT - drive (Splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, (3/8" x 3/8" N.C. sckt. hd. cup pt.)

1шт.

4

A22562

X

GEAR - drive, counterweight

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

221-841

PLUG

- (1/4" P.T., sckt. hd.)

1шт.

7

A22558

SHAFT

ASSY. - drive, counterweight

1шт.

8

A22541

HOUSING ASSY. - balancer

1шт.

9

A8134

PIN

- dowel, housing (3/8 x 3/4")

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

A22670

SHIM,.005" Thk

Hsg. to cyl. block .005" Thk

1шт.

11

A22671

SHIM,.010" Thk

Hsg. to cyl. block .010" Thk

1шт.

13

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj., oil pump relief

1шт.

14

A27858

NUT

- adjusting screw

1шт.

15

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

16

A22566

PLUNGER

- relief, oil pump

1шт.

17

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, (5/16" x 3/8" hex. sckt., cone pt.)

1шт.

18

A22564

GEAR

- drive, oil pump (Splined)

1шт.

19

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

22

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - (1/4" P.T.)

1шт.

25

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (1/2" P.T.)

1шт.

28

222-106

SLEEVE,5/8" Tube

- connector

1шт.

29

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

30

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

31

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (1/2" P.T.)

1шт.

33

222-106

SLEEVE,5/8" Tube

- connector

1шт.

34

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

37

92-8

LOCK WASHER,1/2"

4шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

39

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - (1/8" P.T.)

1шт.

40

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

41

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

42

A22596

TUBE

- oil gallery to balancer shaft

1шт.

43

A20541

CLIP

- oil tube

1шт.

44

A57075

PLUG

- oil gallery, cyl. block (Mach. for "O" ring)

1шт.

44

A22592

PLUG

- oil gallery, cyl. block (Not mach. for "O" ring) (Order 1-A57075 & 1-A27355)

1шт.

45

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil gallery plug (Used w/A57075 plug)

1шт.

46

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, Serial Range: plug-block

1шт.
