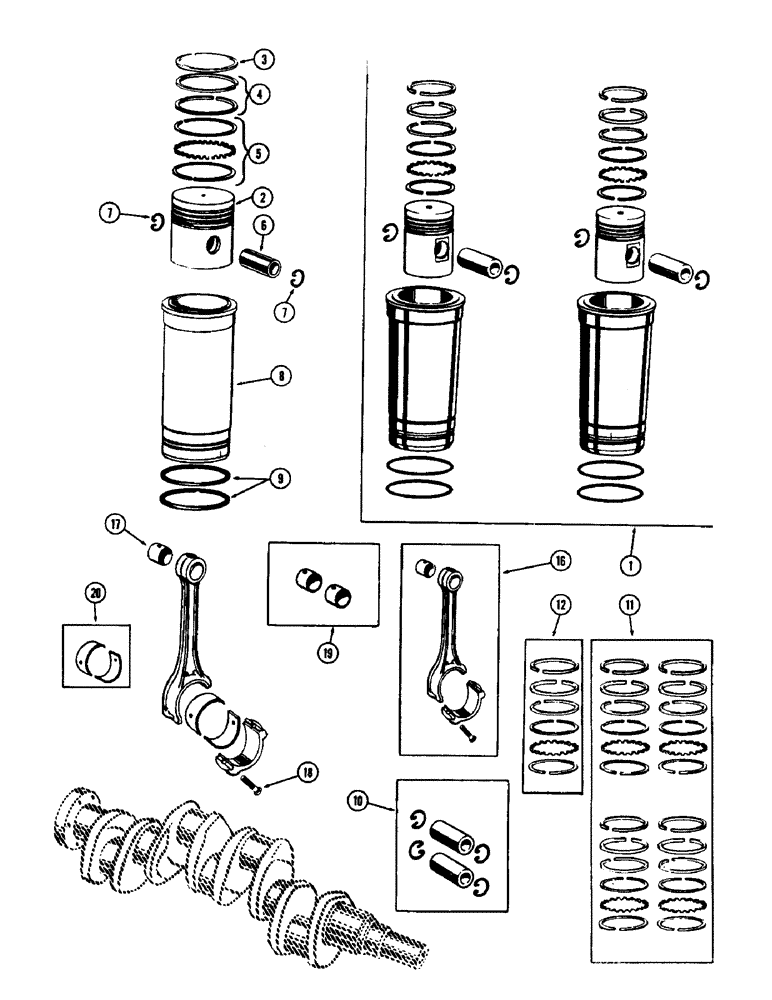

Запчасти Case IH 1060 (386) - PISTON ASSEMBLY AND CONNECTING RODS, (301) DIESEL ENGINE (10) - ENGINE

1

A41363

PISTON

ASSY. - cylinder (Set of 2) (Replaces A40357)

2шт.

2

A57139

PISTON

- cylinder (4-3/8" bore) (Replaces A33712)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd groove) (Order ref. 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY. - oil control (4th groove) (Order ref. 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

2шт.

7

A21016

RING, SNAP

RING - retaining, piston pin

4шт.

8

A23660

SLEEVE

- piston (Cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A21725

KIT

PIN KIT - w/ret. rings (Set of 2)

2шт.

11

A41366

KIT

RING KIT - re-ring (Set for 4 pistons) (Replaces A20856)

1шт.

12

A41362

RING

KIT - re-ring (Set for 1 piston) (Replaces A40363)

4шт.

16

A24424

ROD

ASSY. - connecting

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 19)

1шт.

18

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

19

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

20

A20393

LINING

INSERT ASSY. - conn. rod brg. (Set of 2) (Std.)

4шт.

20

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (Set of 2) (-.002")

4шт.

20

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.010")

4шт.

20

A20573

KIT

INSERT ASSY. - conn. rod brg. (Set of 2) (-.020")

4шт.

20

A20576

LINING

INSERT ASSY. - conn. rod brg. (Set of 2) (-.030")

4шт.
