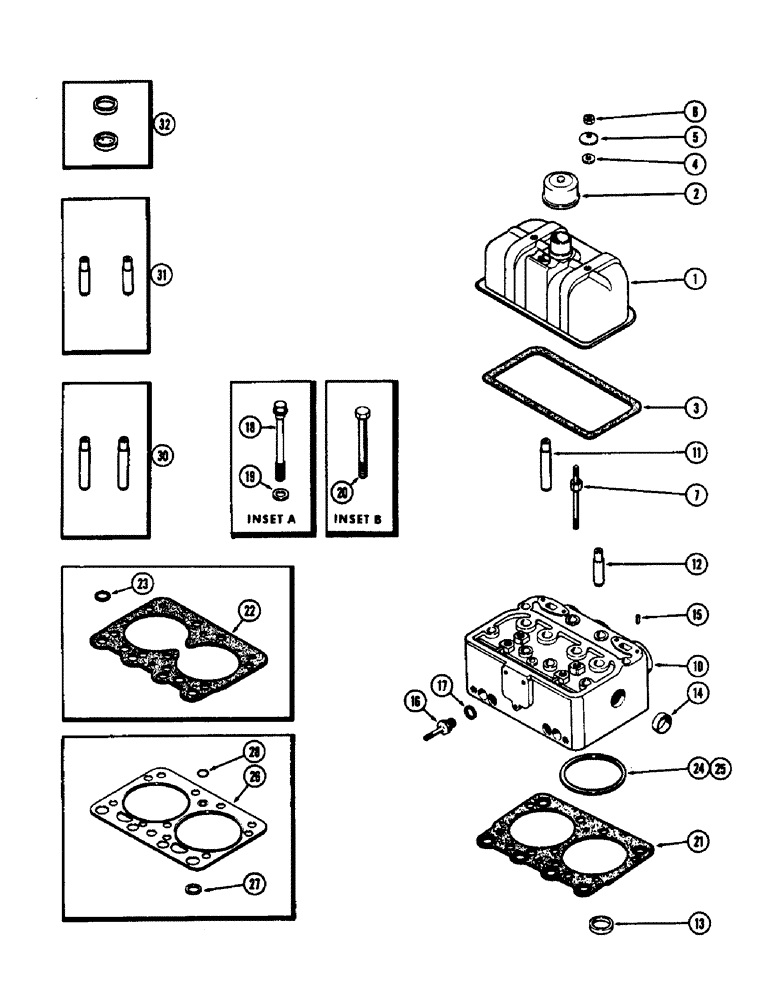

Запчасти Case IH 1060 (378) - CYLINDER HEAD ASSEMBLY, (301) DIESEL ENGINE (10) - ENGINE

1

A20345

COVER - cylinder head

2шт.

2

A27973

CAP

BREATHER - cyl. head cover

2шт.

3

A27972

CYLINDER HEAD GASKET

- cylinder hd. cover

2шт.

4

A23684

GASKET

GASKET - cover (15/32 x 7/8 x 1/8" rubber)

4шт.

5

A23683

WASHER

- cover (23/32 x 1-25/64 x 1/16" dished)

4шт.

6

25-117

NUT,7/16"-20, G5

- cover (7/16" N.F., hex.)

4шт.

7

A57458

STUD

- brkt. & cyl. hd. cover (3-3/4" N.C. end to nut) (Does not require lock washer)

4шт.

7

A28124

STUD - brkt. & cyl. hd. cover (3-13/16" N.C. end to nut) (Requires lock washer)

4шт.

10

A33644

X

HEAD ASSY. - cylinder

2шт.

11

NSS

NOT SOLD SEPARAT

GUIDE - valve, intake (Order ref. 30)

2шт.

12

NSS

NOT SOLD SEPARAT

GUIDE - valve, exhaust (Order ref. 31)

2шт.

13

NSS

NOT SOLD SEPARAT

INSERT - valve seat, exhaust (Order ref. 32)

2шт.

14

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-21/32" cup type)

2шт.

15

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel (1/8 x 17/64")

2шт.

16

A10678

STUD

- nozzle holder

2шт.

17

A10679

GASKET

- stud (3/32 x 29/32 x 1/32" copper)

2шт.

18

A57482

STEP BOLT

BOLT - cyl. head (9/16" N.C. x 6-1/4") (See inset A)

18шт.

19

A27870

WASHER

- (19/32 x 15/16 x 11 ga.) (Used w/A57482 bolt)

18шт.

20

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.) (See inset B)

18шт.

21

A57593

GASKET

- cyl. head, w/grommets (Replaces A41385 & A57226)

2шт.

22

NS

NOT SERVICED

GASKET - cyl. head (Order A57593)

2шт.

23

NS

NOT SERVICED

RING - cyl. head gasket (13/16 x 1-1/16 x .008" fiber) (Used w/item 22 only) (Order A57593)

8шт.

24

A34686

RING

- fire, cyl. head (Std.) (See ref. 25) (1st used eng. ser. no. 2145201)

4шт.

25

A34688

RING

- fire, cyl. head (Oversize w/blue stripe)

4шт.

26

A23117

GASKET

- cylinder head (Order 1-A57593 & 2-A34686) (Used prior to eng. ser. no. 2145201)

2шт.

27

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber) (Used w/A23117 gasket)

4шт.

28

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32") (Used w/A23117 gasket)

2шт.

30

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

31

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

32

A21683

SHAFT

INSERT KIT - exh. valve (Set of 2)

2шт.
